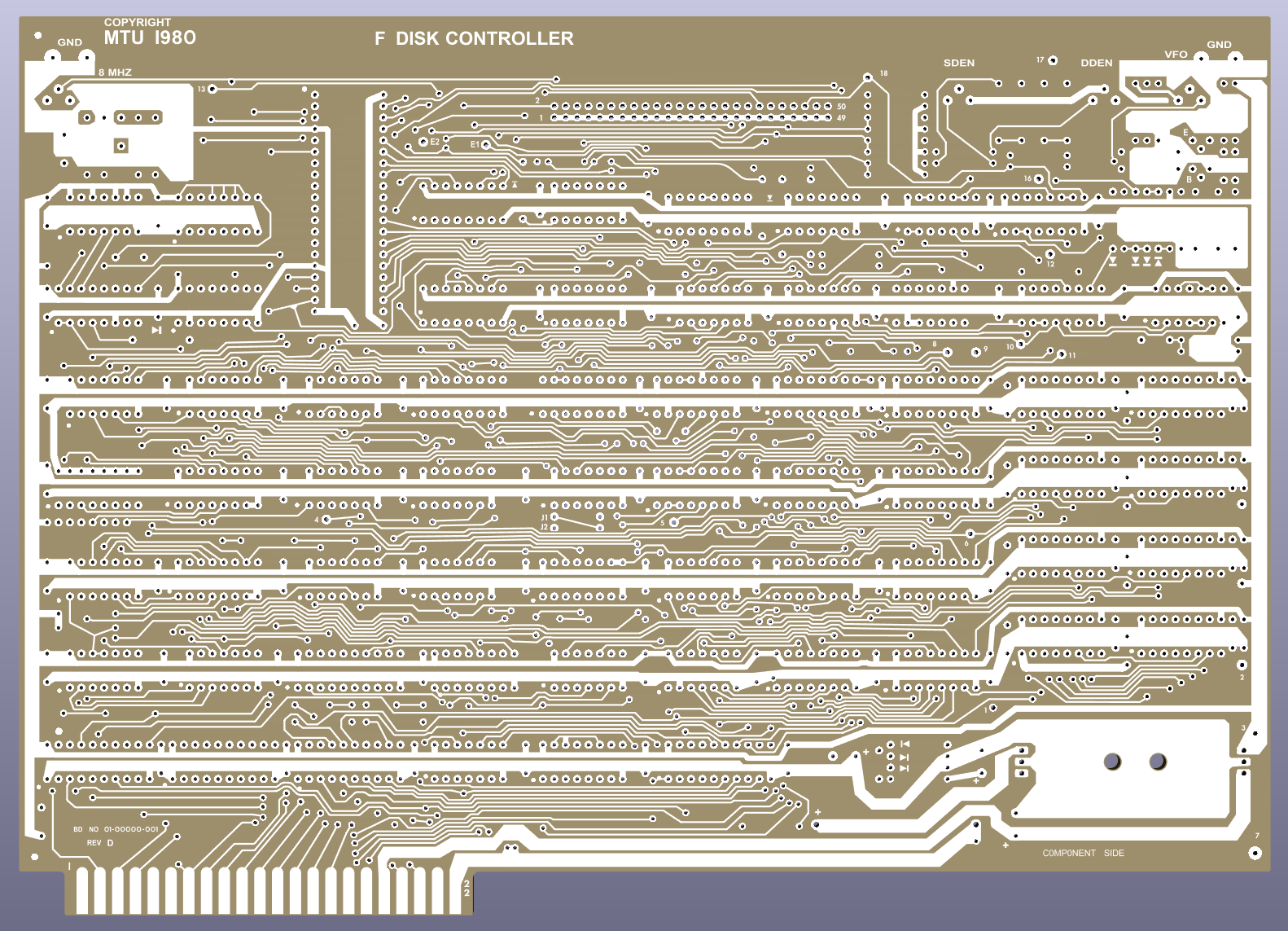

K-1013-floppy disk controller replica
About the K-1013-floppy disk controller replica PCB
K-1013-floppy disk controller replica is an open source PCB design by eduardocasino, published on GitHub under the Custom license license. It is a board, with 97 components from 31 distinct parts.
Other key parts include the LS04, LS109, LS741, LS30 and LS20. By type, the board carries 56 capacitors and 41 ICs.
From the project
MTU's K-1013 Rev. D Floppy DIsk Controller replica
Welcome to my K-1013 Rev. D Floppy Disk Controller replica repository.
This aims to be a faithful replica of the K-1013 Floppy Disk Controller, an extension board for the KIM-1 designed by MTU in the late 70's/early 80's for interfacing with Shugart Associates compatible 8'' and 5.25'' FDDs.
Schematic is completed and checked against the real board.
Routing is completed, still in revision.
Main components on the K-1013-floppy disk controller replica
K-1013-floppy disk controller replica bill of materials (BOM)
97 components, 31 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 3 | LS04 | DIP-14_W7.62mm_LongPads | U4, U51, U53 |
| 4 | LS109 | DIP-16_W7.62mm_LongPads | U5, U32, U42, U55 |
| 1 | LS741 | DIP-20_W7.62mm_LongPads_U6 | U6 |
| 2 | LS30 | DIP-14_W7.62mm_LongPads | U7, U8 |
| 1 | LS20 | DIP-14_W7.62mm_LongPads | U11 |
| 1 | LS393 | DIP-14_W7.62mm_LongPads_U12 | U12 |
| 1 | LS157 | DIP-16_W7.62mm_LongPads_U13 | U13 |
| 3 | LS153 | DIP-16_W7.62mm_LongPads | U14, U34, U44 |
| 1 | LS30 | DIP-14_W7.62mm_LongPads_U17 | U17 |
| 1 | LS04 | DIP-14_W7.62mm_LongPads_U19 | U19 |
| 3 | LS10 | DIP-14_W7.62mm_LongPads | U20, U29, U38 |
| 1 | LS393 | DIP-14_W7.62mm_LongPads_U22 | U22 |
| 1 | LS157 | DIP-16_W7.62mm_LongPads_U23 | U23 |
| 1 | LS153 | DIP-16_W7.62mm_LongPads_U24 | U24 |
| 1 | LS20 | DIP-14_W7.62mm_LongPads_U30 | U30 |
| 1 | LS00 | DIP-14_W7.62mm_LongPads_U31 | U31 |
| 1 | LS161 | DIP-16_W7.62mm_LongPads_U33 | U33 |
| 1 | LS04 | DIP-14_W7.62mm_LongPads_U37 | U37 |
| 2 | LS00 | DIP-14_W7.62mm_LongPads | U39, U52 |
| 1 | DISK | DIP-16_W7.62mm_LongPads_SW | U41 |
Show 11 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | LS161 | DIP-16_W7.62mm_LongPads | U43 |
| 1 | SYST | DIP-16_W7.62mm_LongPads_SW | U47 |
| 2 | LS368 | DIP-16_W7.62mm_LongPads | U50, U59 |
| 2 | LS13 | DIP-14_W7.62mm_LongPads | U56, U57 |
| 1 | 7406 | DIP-14_W7.62mm_LongPads | U60 |
| 1 | LS08 | DIP-14_W7.62mm_LongPads | U62 |
| 1 | LS51 | DIP-14_W7.62mm_LongPads | U63 |
| 1 | LS221 | DIP-16_W7.62mm_LongPads | U64 |
| 51 | 47nF | C_Disc_D7.0mm_W2.5mm_P6.35mm | C1, C2, C3, C4, C5, C6, C12, C13 +43 |
| 4 | 47nF | C_Disc_D7.0mm_W2.5mm_P6.35mm_LP | C15, C28, C41, C82 |
| 1 | 47nF | C_Disc_D7.0mm_W2.5mm_P6.35mm_BrokenPad | C40 |
K-1013-floppy disk controller replica design files
The KiCad project lives in the eduardocasino/k-1013-floppy-disk-controller-replica repository on GitHub; these links point at the commit this page was built from.
K-1013-floppy disk controller replica: common questions
How many components are on the K-1013-floppy disk controller replica?
97 components, from 31 distinct parts. The full bill of materials is listed on this page.
Where can I download the K-1013-floppy disk controller replica design files?
From the eduardocasino/k-1013-floppy-disk-controller-replica repository on GitHub, which has the schematic; the links under Design files point to each one.
Can I use the K-1013-floppy disk controller replica design in my own project?
It is published under Custom license, which limits how it may be reused; read the license before building on it.
