Myfirstmacropad PCB layout, top view — open source AVR/Arduino board by eeble
Simulate this board

About the Myfirstmacropad PCB

Myfirstmacropad is an open source AVR/Arduino PCB design by eeble, published on GitHub under the CC-BY-SA-4.0 license. It is a 2-layer board measuring 139.7 × 69.9 mm, with 61 components from 21 distinct parts.

Its main chip is the ATmega32U4-AU, from the AVR/Arduino family. Other key parts include the 24LC512. By type, the board carries 19 resistors, 13 diodes, 7 capacitors, 3 connectors, 2 ICs and 2 switches.

It belongs with the keyboards designs in this gallery.

From the project

My First Macro Pad

This macropad will use QMK as its firmware. QMK is also open source and available from https://qmk.fm/

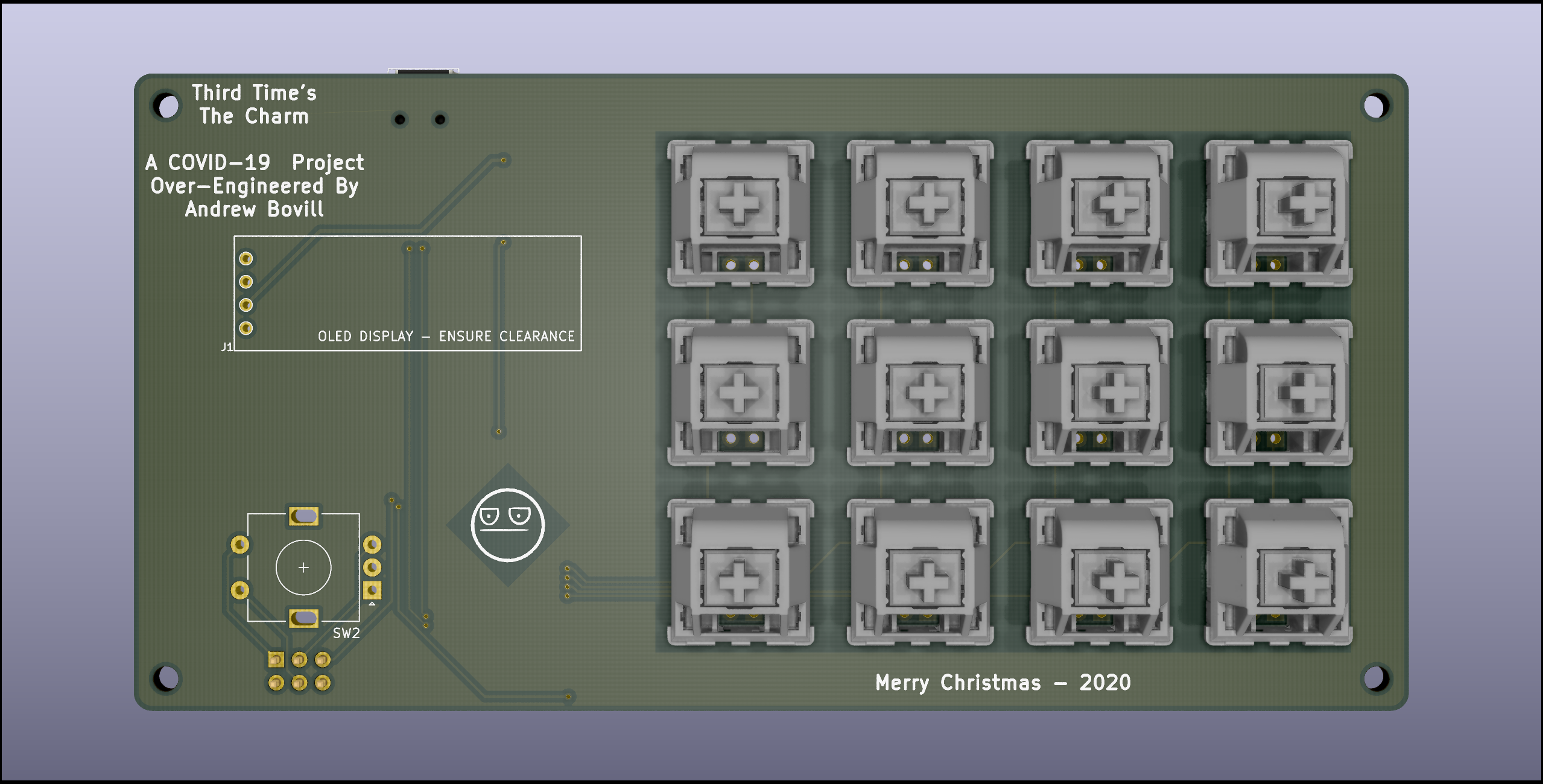

Myfirstmacropad, from the project README
From the project README

Main components on the Myfirstmacropad

ATmega32U4-AU24LC512

Myfirstmacropad bill of materials (BOM)

61 components, 21 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ATmega32U4-AU
U1
1
24LC512
U2
1
Q_NMOS_GDS
Q1
1
16Mhz
Y1
1
Conn_01x04
J1
1
USB_B_Mini
J2
1
AVR-ISP-6
J3
1
500mA
F1
12
MX-LED
MX1, MX2, MX3, MX4, MX5, MX6, MX7, MX8 +4
1
SPST
SW1
1
Rotary_Encoder_Switch
SW2
12
D_Small
D1, D2, D3, D4, D5, D6, D7, D8 +4
1
LED
D13
1
1uF
C1
3
0.1uF
C2, C3, C4
1
10uF
C5
2
22pF
C6, C7
3
10k
R1, R4, R7
2
22
R2, R3
13
330
R5, R8, R9, R10, R11, R12, R13, R14 +5
Show 1 more
QtyPartRefs
1
20k
R6

Myfirstmacropad design files

The KiCad project lives in the eeble/myfirstmacropad repository on GitHub; these links point at the commit this page was built from.

Myfirstmacropad: common questions

What microcontroller does the Myfirstmacropad use?

The Myfirstmacropad is built around the ATmega32U4-AU, from the AVR/Arduino family.

How big is the Myfirstmacropad PCB?

The Myfirstmacropad measures 139.7 × 69.9 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Myfirstmacropad?

61 components, from 21 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Myfirstmacropad design files?

From the eeble/myfirstmacropad repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the Myfirstmacropad design in my own project?

Yes, under the terms of its CC-BY-SA-4.0 license, which eeble chose for the repository.

Can I test firmware for the Myfirstmacropad without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
