TinyLlama-Wavetable
About the TinyLlama-Wavetable PCB
TinyLlama-Wavetable is an open source PCB design by eivindbohler, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 45 × 76 mm, with 11 components from 10 distinct parts.
By type, the board carries 6 connectors, 1 switch, 1 capacitor and 1 resistor.
It belongs with the audio, displays & leds and retro computing designs in this gallery.
From the project

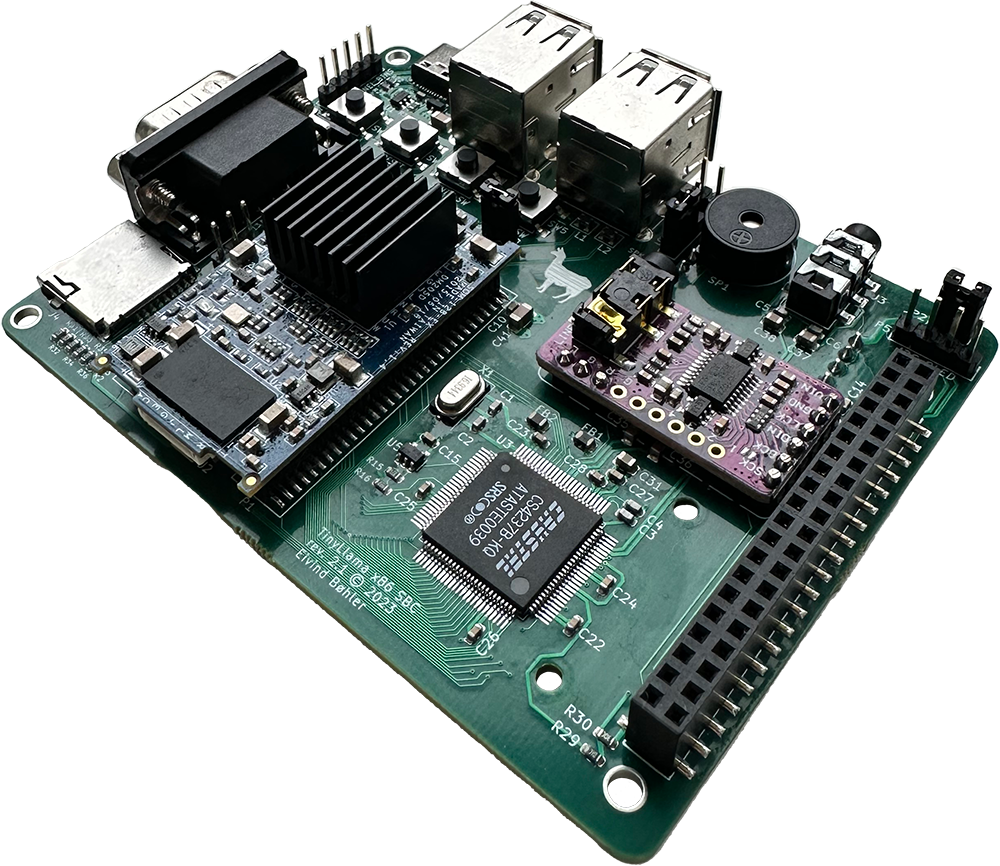

A tiny x86 retro computer
- A fully-fledged 486/Pentium-class PC in a tiny form factor - Integrated Sound Blaster Pro-compatible audio - Add a Raspberry Pi Zero 2 for Roland MT‑32 and General MIDI music - Open-source hardware schematics, board layout and BIOS - build your own! - Perfect for playing DOS games!
The two main new features in version 2 are: Built-in hardware USB HID (keyboard+mouse) to PS/2 emulation using [rasteri's HIDman firmware][hidman] running on a CH559 microcontroller On-board Wemos D1 Mini ESP8266 for providing either a Hayes-compatible modem-over-WiFi or ethernet-over-WiFi (SLIP)…
TinyLlama-Wavetable bill of materials (BOM)
11 components, 10 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | TINYLLAMA_PI_CONN | J_CONN_RPI_MIRRORED_SMD | J1 |
| 1 | PI_ZERO | J_CONN_RPI_SMD | J2 |
| 1 | WAVETABLE | J_CONN_WAVETABLE | J3 |
| 1 | AUDIO_OUT | P_CONN_02X03_SMD | J4 |
| 1 | P_CONN_01X03 | P_CONN_01X03_SMD | J5 |
| 1 | P_CONN_01x06 | P_CONN_01X06_SMD | J6 |
| 2 | H_HOLE | H_440_HOLE | H1, H2 |
| 1 | PI_WT_TOGGLE | SW_1MS1T2B4M6QES | SW1 |
| 1 | 10uF | C_0603_1608Metric | C1 |
| 1 | 10k | R_0603_1608Metric | R1 |
TinyLlama-Wavetable design files
The KiCad project lives in the eivindbohler/tinyllama2 repository on GitHub; these links point at the commit this page was built from.
TinyLlama-Wavetable: common questions
How big is the TinyLlama-Wavetable PCB?
The TinyLlama-Wavetable measures 45 × 76 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the TinyLlama-Wavetable?
11 components, from 10 distinct parts. The full bill of materials is listed on this page.
Where can I download the TinyLlama-Wavetable design files?
From the eivindbohler/tinyllama2 repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the TinyLlama-Wavetable design in my own project?
Yes, under the terms of its GPL-3.0 license, which eivindbohler chose for the repository.
