About the Tuxkeychain PCB
Tuxkeychain is an open source PCB design by electron271, published on GitHub under the CC-BY-SA-4.0 license. It is a 6-layer board measuring 50 × 60 mm, with 45 components from 25 distinct parts.
Other key parts include the F1C100s, TLV76701DRVx and W25Q128JVS. By type, the board carries 19 capacitors, 12 resistors, 5 ICs, 3 connectors, 2 switches and 1 transistor.
From the project

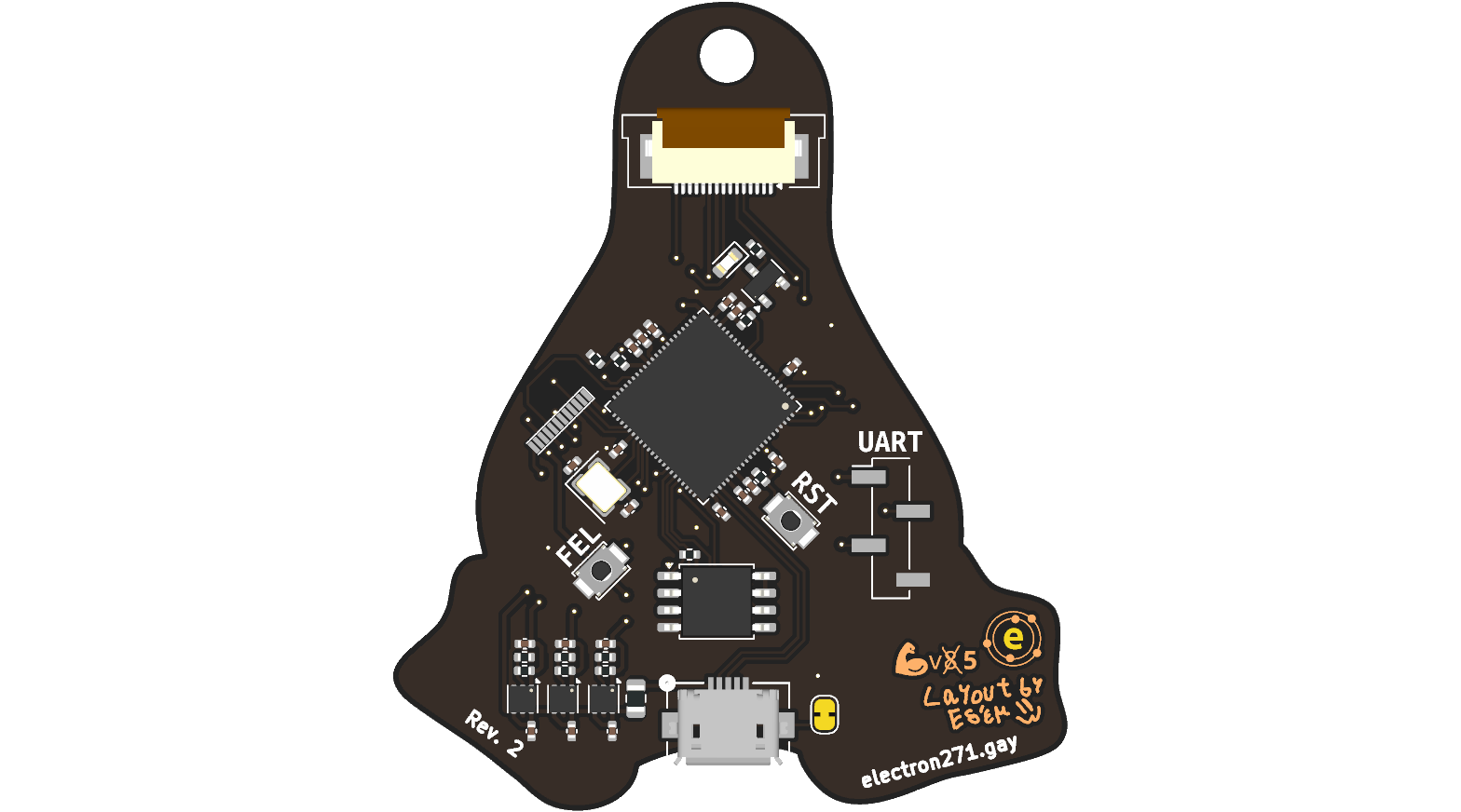

Keychain shaped like Tux that can run Linux.
Unfortunately this is more expensive than usual due to tariffs and inflation. (Probably cheaper in other countries.)
NOTE: This is still in the prototype stage, changes to the design are likely.
*You can probably find them on other chinese distributors, but I don't know which ones.
Schematic heavily based on the business card design by thirtythreeforty (https://www.thirtythreeforty.net/posts/2019/12/my-business-card-runs-linux/businesscard.pdf).
Main components on the Tuxkeychain
Tuxkeychain bill of materials (BOM)
45 components, 25 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | F1C100s | QFN-88_EP_10x10_Pitch0.4mm | U4 |
| 3 | TLV76701DRVx | WSON-6-1EP_2x2mm_P0.65mm_EP1x1.6mm | U5, U7, U8 |
| 1 | W25Q128JVS | SOIC-8_5.3x5.3mm_P1.27mm | U6 |
| 1 | 2N7002 | SOT-23 | Q2 |
| 1 | 24MHz | Crystal_SMD_3225-4Pin_3.2x2.5mm | Y1 |
| 1 | Amphenol_10104111 | CONN_10104111-0001LF_AMP | J1 |
| 1 | EXPANSION | Jushuo_AFC07-S15FCA-00_1x15-1MP_P0.50_Horizontal | J3 |
| 1 | Solder Pads | SolderPads12 | J5 |
| 1 | SMD0805B050TF | Fuse_0805_2012Metric | F1 |
| 1 | RESET | SW_SPST_B3U-1000P | SW1 |
| 1 | FEL | SW_SPST_B3U-1000P | SW2 |
| 1 | LED (RED) | LED_0603_1608Metric | D1 |
| 4 | 2u2 | C_0402_1005Metric | C3, C19, C21, C23 |
| 8 | 100n | C_0402_1005Metric | C4, C5, C6, C7, C8, C12, C13, C14 |
| 2 | 1u | C_0402_1005Metric | C15, C16 |
| 2 | 30p | C_0402_1005Metric | C17, C18 |
| 3 | 22u | C_0402_1005Metric | C20, C22, C24 |
| 2 | 2k2 | R_0402_1005Metric | R7, R8 |
| 1 | 3k3 | R_0402_1005Metric | R9 |
| 1 | 330 | R_0402_1005Metric | R10 |
Show 5 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | 49k9 | R_0402_1005Metric | R11, R12 |
| 3 | 150k | R_0402_1005Metric | R13, R15, R17 |
| 1 | 470k | R_0402_1005Metric | R14 |
| 1 | 56k | R_0402_1005Metric | R16 |
| 1 | 330k | R_0402_1005Metric | R18 |
