3458A-A3-66533-2021-KS-RoHS-SMD
About the 3458A-A3-66533-2021-KS-RoHS-SMD PCB
3458A-A3-66533-2021-KS-RoHS-SMD is an open source PCB design by EleDes, published on GitHub under the CC0-1.0 license. It is a 4-layer board measuring 213 × 136 mm, with 399 components from 137 distinct parts.
Other key parts include the SN74LVC8T245PW, LMS8117ADT-3.3, LMS8117AMP-1.8, LT1001 and AD817A. By type, the board carries 131 capacitors, 113 resistors, 45 ICs, 36 test points, 12 inductors and 9 transistors.
From the project

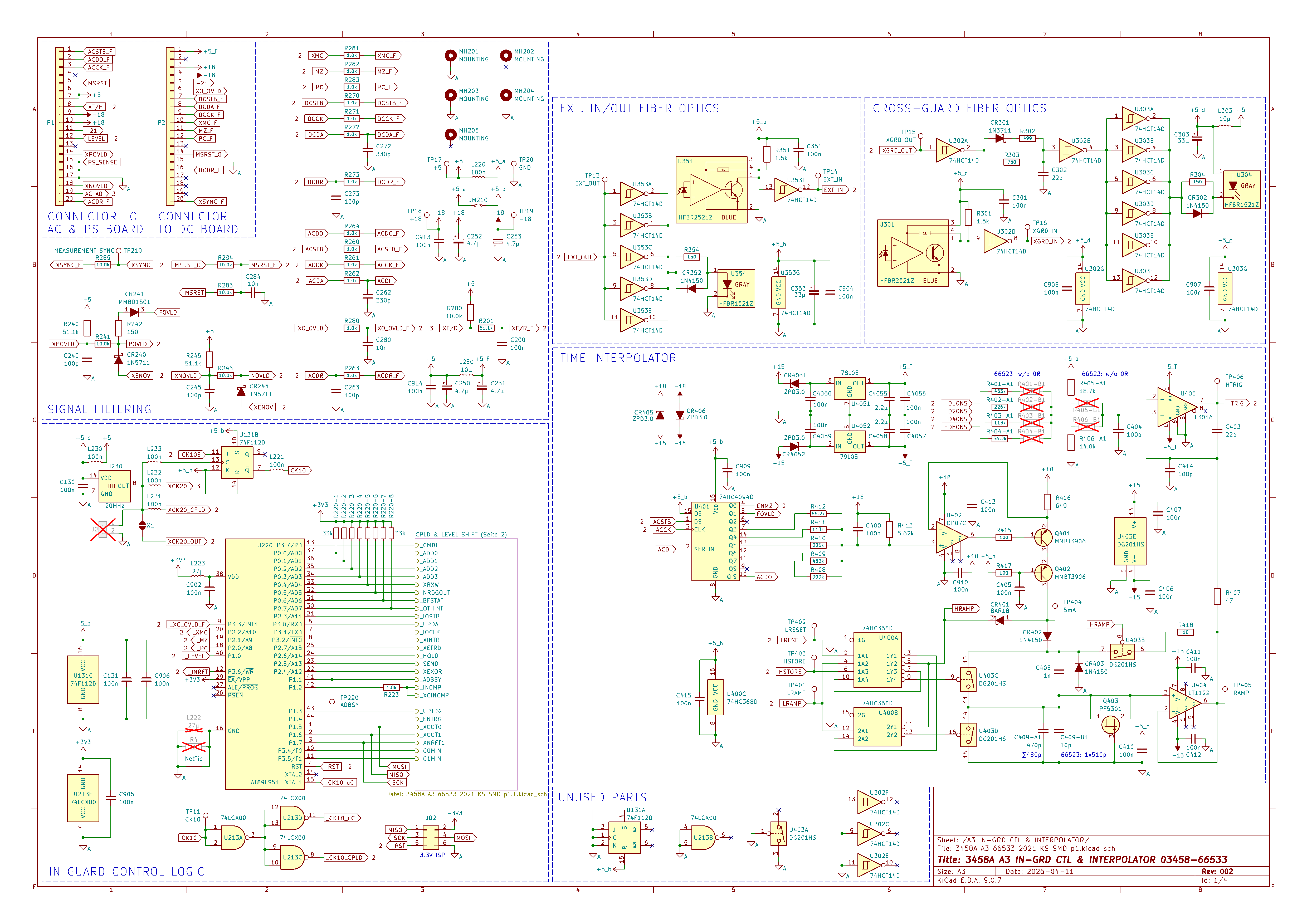

3458A A3 66533 2021 KS RoHS SMD - KiCad PCB replica
Based on CLIP 66503 and provided pictures from recent 66533 version.
There might be errors and there are a couple of open questions - see issues
If there are errors or questions please open an issue.
These 3D models are excluded from project license (folder 3D models):
0009483064: Molex KK 396 from https://www.molex.com/en-us/products/part-detail/09483064 - copyright: Molex
Main components on the 3458A-A3-66533-2021-KS-RoHS-SMD
3458A-A3-66533-2021-KS-RoHS-SMD bill of materials (BOM)
399 components, 137 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 7 | SN74LVC8T245PW | TSSOP-24_4.4x7.8mm_P0.65mm | U1, U2, U3, U4, U5, U6, U7 |
| 1 | LMS8117ADT-3.3 | TO-252-2 | U11 |
| 1 | LMS8117AMP-1.8 | SOT-223-3_TabPin2 | U12 |
| 4 | LT1001 | SOIC-8_3.9x4.9mm_P1.27mm | U110, U151, U160, U165 |
| 2 | AD817A | SOIC-8_3.9x4.9mm_P1.27mm | U111, U140 |
| 1 | AD848J | SOIC-8_3.9x4.9mm_P1.27mm | U112 |
| 1 | 74F112D | SOIC-16_3.9x9.9mm_P1.27mm | U131 |
| 3 | TL3016 | SOIC-8_3.9x4.9mm_P1.27mm | U142, U181, U405 |
| 4 | 74HCT14D | SOIC-14_3.9x8.7mm_P1.27mm | U150, U302, U303, U353 |
| 1 | LM358 | SOIC-8_3.9x4.9mm_P1.27mm | U170 |
| 1 | HYBRID | U180_PGA-65 | U180 |
| 1 | 5M1270ZT144C5N | LQFP-144_20x20mm_P0.5mm | U210 |
| 1 | 74LCX00 | SOIC-14_3.9x8.7mm_P1.27mm | U213 |
| 1 | AT89LS51 | TQFP-44_10x10mm_P0.8mm | U220 |
| 1 | 20MHz | Oscillator_DIP-14 | U230 |
| 2 | HFBR2521Z | HFBR-2521Z Fiber Optic | U301, U351 |
| 2 | HFBR1521Z | HFBR-1521Z Fiber Optic | U304, U354 |
| 1 | 74HC368D | SOIC-16_3.9x9.9mm_P1.27mm | U400 |
| 1 | 74HC4094D | SOIC-16_3.9x9.9mm_P1.27mm | U401 |
| 1 | OP07C | SOIC-8_3.9x4.9mm_P1.27mm | U402 |
Show 117 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | DG201HS | SOIC-16_3.9x9.9mm_P1.27mm | U403 |
| 1 | LT1122 | SOIC-8_3.9x4.9mm_P1.27mm | U404 |
| 3 | 78L05 | SOIC-8_3.9x4.9mm_P1.27mm | U1421, U1811, U4051 |
| 3 | 79L05 | SOIC-8_3.9x4.9mm_P1.27mm | U1422, U1812, U4052 |
| 4 | MMBF4393 | SOT-23W | Q1, Q2, Q11, Q12 |
| 1 | MMBF4392 | SOT-23W | Q110 |
| 1 | MMBT3904 | SOT-23W | Q151 |
| 2 | MMBT3906 | SOT-23W | Q401, Q402 |
| 1 | PF5301 | TO-92_Inline_Wide_DSG | Q403 |
| 1 | Conn_01x06 | CONN_SDA-41815_06_BE_H_MOL | J1 |
| 1 | Conn_01x07 | PinHeader_1x07_P2.54mm_Vertical | J3 |
| 2 | Conn_01x20 | IDC-Header_2x10_P2.54mm_Vertical | P1, P2 |
| 18 | ZPD3.0 | D_SOD-123 | CR1, CR2, CR3, CR4, CR110, CR111, CR116, CR117 +10 |
| 8 | BAV99 | SOT-23W | CR5, CR6, CR7, CR8, CR12, CR13, CR14, CR15 |
| 2 | BAT54S | SOT-23W | CR9, CR11 |
| 10 | 1N4150 | D_SOD-123 | CR140, CR141, CR144, CR145, CR155, CR156, CR302, CR352 +2 |
| 3 | 1N5711 | D_DO-35_SOD27_P7.62mm_Horizontal | CR240, CR245, CR301 |
| 1 | MMBD1501 | SOT-23W | CR241 |
| 1 | BAR18 | SOT-23W | CR401 |
| 1 | JTAG 3.3V | PinHeader_2x05_P2.54mm_Vertical | JD1 |
| 1 | Conn_02x03 | PinHeader_2x03_P2.54mm_Vertical | JD2 |
| 1 | Jumper | R_1206_3216Metric | JM210 |
| 1 | ZR_HI | TestPoint_THTPad_2.0x2.0mm_Drill1.0mm | TP1 |
| 1 | ZR_LO | TestPoint_THTPad_2.0x2.0mm_Drill1.0mm | TP2 |
| 2 | GND | TestPoint_THTPad_2.0x2.0mm_Drill1.0mm | TP3, TP20 |
| 1 | DCBUF | TestPoint_THTPad_2.0x2.0mm_Drill1.0mm | TP4 |
| 1 | MOD_SENSE | TestPoint_THTPad_2.0x2.0mm_Drill1.0mm | TP5 |
| 1 | MOD_IN | TestPoint_THTPad_2.0x2.0mm_Drill1.0mm | TP6 |
| 1 | XS64 | TestPoint_THTPad_2.0x2.0mm_Drill1.0mm | TP7 |
| 1 | S16 | TestPoint_THTPad_2.0x2.0mm_Drill1.0mm | TP8 |
| 1 | XS4 | TestPoint_THTPad_2.0x2.0mm_Drill1.0mm | TP9 |
| 1 | S1 | TestPoint_THTPad_2.0x2.0mm_Drill1.0mm | TP10 |
| 1 | CK10 | TestPoint_THTPad_2.0x2.0mm_Drill1.0mm | TP11 |
| 1 | DC_AD | TestPoint_THTPad_2.0x2.0mm_Drill1.0mm | TP12 |
| 1 | EXT_OUT | TestPoint_THTPad_2.0x2.0mm_Drill1.0mm | TP13 |
| 1 | EXT_IN | TestPoint_THTPad_2.0x2.0mm_Drill1.0mm | TP14 |
| 1 | XGRD_OUT | TestPoint_THTPad_2.0x2.0mm_Drill1.0mm | TP15 |
| 1 | XGRD_IN | TestPoint_THTPad_2.0x2.0mm_Drill1.0mm | TP16 |
| 1 | +5 | TestPoint_THTPad_2.0x2.0mm_Drill1.0mm | TP17 |
| 1 | +18 | TestPoint_THTPad_2.0x2.0mm_Drill1.0mm | TP18 |
| 1 | -18 | TestPoint_THTPad_2.0x2.0mm_Drill1.0mm | TP19 |
| 1 | AC_AD | TestPoint_THTPad_2.0x2.0mm_Drill1.0mm | TP21 |
| 1 | ZJUMP | TestPoint_THTPad_2.0x2.0mm_Drill1.0mm | TP22 |
| 1 | INTEGRATOR | TestPoint_THTPad_2.0x2.0mm_Drill1.0mm | TP112 |
| 1 | SLOPE AMP | TestPoint_THTPad_2.0x2.0mm_Drill1.0mm | TP140 |
| 1 | COMPARATOR | TestPoint_THTPad_2.0x2.0mm_Drill1.0mm | TP142 |
| 1 | +5ref | TestPoint_THTPad_2.0x2.0mm_Drill1.0mm | TP151 |
| 1 | +12ref | TestPoint_THTPad_2.0x2.0mm_Drill1.0mm | TP160 |
| 1 | -12ref | TestPoint_THTPad_2.0x2.0mm_Drill1.0mm | TP165 |
| 1 | MEASUREMENT SYNC | TestPoint_THTPad_2.0x2.0mm_Drill1.0mm | TP210 |
| 1 | ADBSY | TestPoint_THTPad_2.0x2.0mm_Drill1.0mm | TP220 |
| 1 | LRAMP | TestPoint_THTPad_2.0x2.0mm_Drill1.0mm | TP401 |
| 1 | LRESET | TestPoint_THTPad_2.0x2.0mm_Drill1.0mm | TP402 |
| 1 | HSTORE | TestPoint_THTPad_2.0x2.0mm_Drill1.0mm | TP403 |
| 1 | 5mA | TestPoint_THTPad_2.0x2.0mm_Drill1.0mm | TP404 |
| 1 | RAMP | TestPoint_THTPad_2.0x2.0mm_Drill1.0mm | TP405 |
| 1 | HTRIG | TestPoint_THTPad_2.0x2.0mm_Drill1.0mm | TP406 |
| 3 | LED | LED_0603_1608Metric | LD1, LD2, LD3 |
| 4 | 100n | L_0805_2012Metric | L123, L124, L127, L221 |
| 5 | 100n | L_0603_1608Metric | L220, L230, L231, L232, L233 |
| 1 | 27µ | L_1812_4532Metric | L223 |
| 2 | 10µ | L_1812_4532Metric | L250, L303 |
| 76 | 100n | C_0603_1608Metric | C1, C2, C3, C4, C5, C6, C19, C20 +68 |
| 13 | 2.2µ | C_0805_2012Metric | C24, C31, C33, C36, C112, C120, C121, C1421 +5 |
| 4 | 100n | C_0805_2012Metric | C27, C45, C407, C413 |
| 5 | 33µ | CP_EIA-3528-21_Kemet-B | C32, C34, C181, C303, C353 |
| 8 | 100p | C_0805_2012Metric | C118, C122, C240, C245, C263, C273, C404, C414 |
| 1 | 150p | C_0805_2012Metric | C119-A1 |
| 1 | 180p | C_0805_2012Metric | C119-B1 |
| 1 | 200p | C_0603_1608Metric | C128 |
| 2 | 470p | C_0603_1608Metric | C129, C409-A1 |
| 5 | 1n | C_0603_1608Metric | C150, C155, C156, C168, C408 |
| 6 | 10n | C_0805_2012Metric | C151, C152, C160, C165, C280, C284 |
| 4 | 4.7µ | CP_EIA-3528-21_Kemet-B | C250, C251, C252, C253 |
| 2 | 330p | C_0603_1608Metric | C262, C272 |
| 2 | 22p | C_0603_1608Metric | C302, C403 |
| 1 | 10p | C_0603_1608Metric | C409-B1 |
| 3 | 330 | R_0603_1608Metric | R1, R2, R3 |
| 8 | 1.96k | R_1206_3216Metric | R7, R8, R12, R14, R15, R16, R17, R18 |
| 2 | 28.7 | R_1206_3216Metric | R9, R11 |
| 2 | 422 | R_1206_3216Metric | R10, R13 |
| 2 | 5.62k | R_1206_3216Metric | R112, R413 |
| 4 | 100 | R_1206_3216Metric | R114, R182, R415, R417 |
| 1 | 475 | R_1206_3216Metric | R115 |
| 4 | 1.5k | R_1206_3216Metric | R118, R151-2, R301, R351 |
| 1 | 300 | R_1206_3216Metric | R122 |
| 1 | 60.4 | R_1206_3216Metric | R129 |
| 18 | 1.0k | R_1206_3216Metric | R140, R142, R158, R183, R223, R260, R261, R262 +10 |
| 2 | 18.7k | R_1206_3216Metric | R141, R405-A1 |
| 6 | 51.1k | R_1206_3216Metric | R143, R153, R171, R201, R240, R245 |
| 3 | 16.7k | R_1206_3216Metric | R144, R150, R152 |
| 11 | 10.0k | R_1206_3216Metric | R148, R155, R177, R180, R181, R200, R241, R246 +3 |
| 1 | 36k | R_1206_3216Metric | R151 |
| 1 | 604k | R_1206_3216Metric | R154 |
| 5 | 2.0k | R_1206_3216Metric | R156, R162, R166, R173, R193 |
| 1 | 200 | R_1206_3216Metric | R157 |
| 1 | 47.5 | R_1206_3216Metric | R159 |
| 2 | 301 | R_1206_3216Metric | R161, R167 |
| 1 | 10.2k | R_1206_3216Metric | R168 |
| 1 | 402 | R_1206_3216Metric | R172 |
| 1 | 24.3k | R_1206_3216Metric | R176 |
| 1 | 619k | R_1206_3216Metric | R184 |
| 1 | 3.01M | R_1206_3216Metric | R185 |
| 1 | 124 | R_1206_3216Metric | R186 |
| 3 | 10 | R_1206_3216Metric | R190, R191, R418 |
| 8 | 33k | R_0603_1608Metric | R220-1, R220-2, R220-3, R220-4, R220-5, R220-6, R220-7, R220-8 |
| 3 | 150 | R_1206_3216Metric | R242, R304, R354 |
| 1 | 499 | R_0805_2012Metric | R302 |
| 1 | 750 | R_0805_2012Metric | R303 |
| 2 | 453k | R_1206_3216Metric | R401-A1, R409 |
| 2 | 226k | R_1206_3216Metric | R402-A1, R410 |
| 2 | 113k | R_1206_3216Metric | R403-A1, R411 |
| 2 | 56.2k | R_1206_3216Metric | R404-A1, R412 |
| 1 | 14.0k | R_1206_3216Metric | R406-A1 |
| 1 | 47 | R_1206_3216Metric | R407 |
| 1 | 909k | R_1206_3216Metric | R408 |
| 1 | 649 | R_1206_3216Metric | R416 |
3458A-A3-66533-2021-KS-RoHS-SMD design files
The KiCad project lives in the EleDes/3458A-A3-66533-2021-KS-RoHS-SMD-KiCad repository on GitHub; these links point at the commit this page was built from.
3458A-A3-66533-2021-KS-RoHS-SMD: common questions
How big is the 3458A-A3-66533-2021-KS-RoHS-SMD PCB?
The 3458A-A3-66533-2021-KS-RoHS-SMD measures 213 × 136 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the 3458A-A3-66533-2021-KS-RoHS-SMD?
399 components, from 137 distinct parts. The full bill of materials is listed on this page.
Where can I download the 3458A-A3-66533-2021-KS-RoHS-SMD design files?
From the EleDes/3458A-A3-66533-2021-KS-RoHS-SMD-KiCad repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the 3458A-A3-66533-2021-KS-RoHS-SMD design in my own project?
Yes, under the terms of its CC0-1.0 license, which EleDes chose for the repository.
