About the Barghest PCB

Barghest is an open source RP2040/RP2350 PCB design by ElKinoflop, published on GitHub under the MIT license. It is a 2-layer board measuring 266.7 × 109.5 mm, with 138 components from 13 distinct parts.

Its main chip is the RP2040_Pro_Micro, from the RP2040/RP2350 family. By type, the board carries 60 diodes, 9 switches, 4 capacitors and 1 IC.

It belongs with the keyboards designs in this gallery.

From the project

Stacked acrylic handwired keyboard

Stacked acrylic keyboard case designed for handwiring with a Waveshare RP2040-Tiny. Iterated from P3D Jake's Hydra Invisibolt case which was designed for MechVault's Hydra PCB. Thanks Jake for allowing me to open source this after I took his Hydra case designed and ruined modified it. Thanks Cain at MechVault for the layout inspiration. If you decide to make one of these then consider donating to Jake's coffee fund.

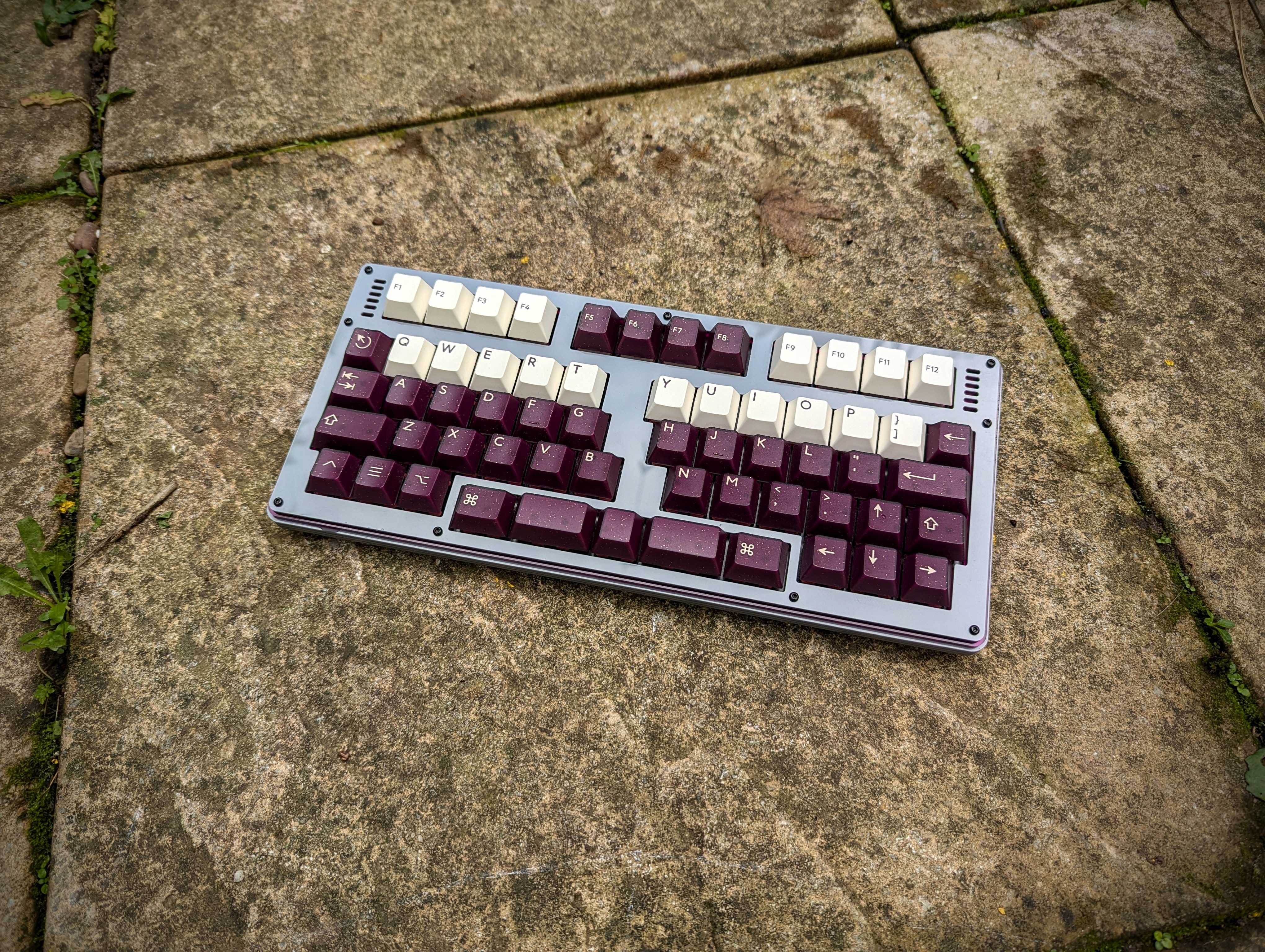

Barghest, from the project README — From the project README

Main components on the Barghest

RP2040_Pro_Micro

Barghest bill of materials (BOM)

138 components, 13 distinct parts.

Qty	Part	Footprint	Refs
1	RP2040_Pro_Micro	RP2040_Pro_Micro_Flipped	U1
53	MX_SW_HS	SW_MX_HS_CPG151101S11_1u	MX1, MX2, MX3, MX4, MX5, MX6, MX7, MX8 +45
3	MX_SW_HS	MX_PCB_1.00u	MX24, MX26, MX49
3	MX_SW_HS	SW_MX_HS_CPG151101S11_1.25u	MX27, MX58, MX64
4	MX_SW_HS	SW_MX_HS_CPG151101S11_1.75u	MX38, MX39, MX60, MX62
1	MX_SW_HS	MX_PCB_1.25u	MX51
4	MX_stab	STAB_MX_3u	S4, S5, S9, S13
1	MX_stab	STAB_MX_P_7u	S10
1	MX_stab	STAB_MX_2.25u	S11
1	MX_stab	STAB_MX_2u	S12
2	RotaryEncoder_Switch	ROT_Alps_EC11E-Switch	SW1, SW2
60	D	D_SOD-123	D1, D2, D3, D4, D5, D6, D7, D8 +52
4	100nF	C_0402_1005Metric	C24, C25, C26, C27

Barghest design files

The KiCad project lives in the ElKinoflop/Barghest repository on GitHub; these links point at the commit this page was built from.

LayoutPCB/Barghest PCB by Shrimped.kicad_pcb
SchematicPCB/Barghest PCB by Shrimped.kicad_sch

Barghest: common questions

What microcontroller does the Barghest use?

The Barghest is built around the RP2040_Pro_Micro, from the RP2040/RP2350 family.

How big is the Barghest PCB?

The Barghest measures 266.7 × 109.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Barghest?

138 components, from 13 distinct parts. The full bill of materials is listed on this page.

Where can I download the Barghest design files?

From the ElKinoflop/Barghest repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Barghest design in my own project?

Yes, under the terms of its MIT license, which ElKinoflop chose for the repository.

Can I test firmware for the Barghest without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
