Nes cnrom PCB layout, top view — open source AVR/Arduino board by emeargt
Simulate this board

About the Nes cnrom PCB

Nes cnrom is an open source AVR/Arduino PCB design by emeargt, published on GitHub under the CC-BY-SA-4.0 license. It is a 2-layer board measuring 99.7 × 63.9 mm, with 10 components from 8 distinct parts.

Its main chip is the ATTINY13A-PU, from the AVR/Arduino family. Other key parts include the 74HC161, CHR-ROM and PRG-ROM. By type, the board carries 4 ICs, 3 capacitors and 2 diodes.

It belongs with the retro computing designs in this gallery.

From the project

KiCad project for NES-CN-ROM-256-05 cartridge schematic and PCB

[cc-by-sa]: http://creativecommons.org/licenses/by-sa/4.0/ [cc-by-sa-shield]: https://img.shields.io/badge/License-CC%20BY--SA%204.0-lightgrey.svg

This repository contains a KiCad project for a NES-CN-ROM-256-05 cartridge pcb.

Original NES-CN-ROM-256-05 schematic is from N. Schenk's NES repo. The schematic was modified to include currently available parts and their associated footprints.

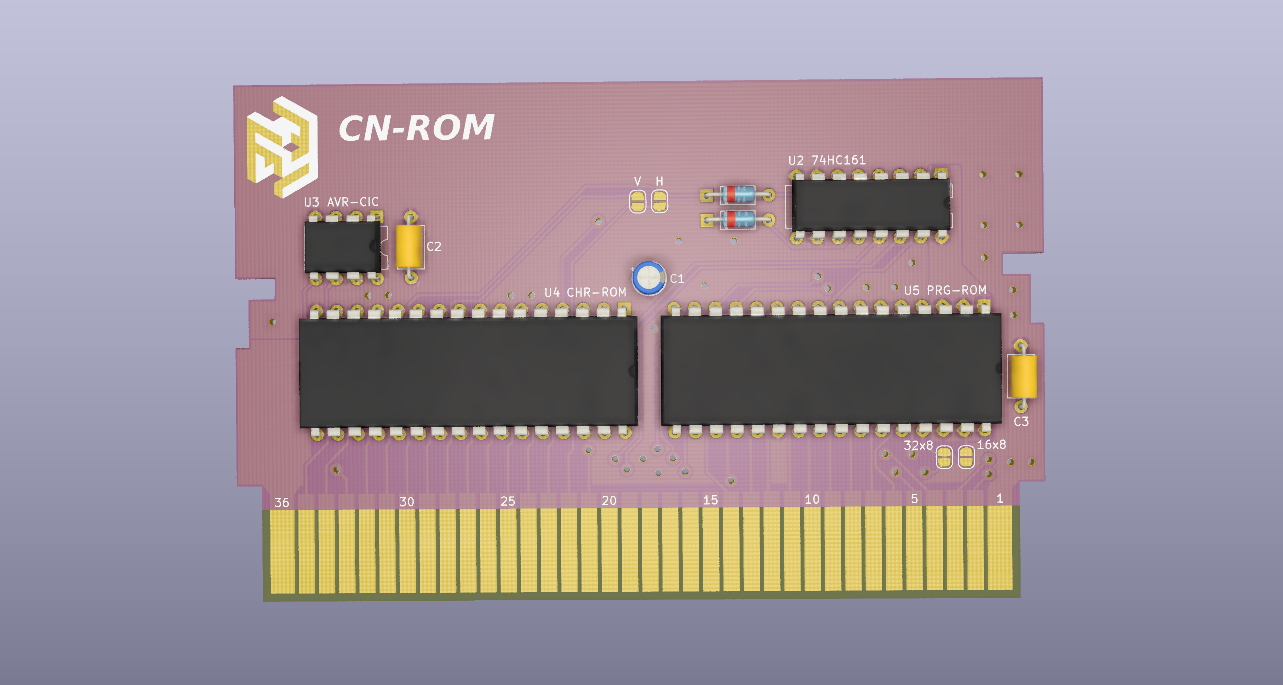

Nes cnrom, from the project README
From the project README

Main components on the Nes cnrom

74HC161ATTINY13A-PUCHR-ROMPRG-ROM

Nes cnrom bill of materials (BOM)

10 components, 8 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
74HC161
U2
1
ATTINY13A-PU
ATtiny13A-PU
U3
1
CHR-ROM
U4
1
PRG-ROM
U5
1
Cartridge Connector
EDGE1
2
1N4148
D1, D2
1
22UF
22uF
C1
2
10NF
10nF
C2, C3

Nes cnrom design files

The KiCad project lives in the emeargt/nes-cnrom repository on GitHub; these links point at the commit this page was built from.

Nes cnrom: common questions

What microcontroller does the Nes cnrom use?

The Nes cnrom is built around the ATTINY13A-PU, from the AVR/Arduino family.

How big is the Nes cnrom PCB?

The Nes cnrom measures 99.7 × 63.9 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Nes cnrom?

10 components, from 8 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Nes cnrom design files?

From the emeargt/nes-cnrom repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the Nes cnrom design in my own project?

Yes, under the terms of its CC-BY-SA-4.0 license, which emeargt chose for the repository.

Can I test firmware for the Nes cnrom without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
