EmoePower PCB layout, top view — open source board by emoestudio

About the EmoePower PCB

EmoePower is an open source PCB design by emoestudio, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 82 × 52 mm, with 68 components from 38 distinct parts.

Other key parts include the LM5175PWP, MAX4080T and MAX907. By type, the board carries 19 capacitors, 17 resistors, 4 transistors, 4 connectors, 4 diodes and 3 ICs.

It belongs with the power & battery designs in this gallery.

From the project

A DIY Buck-Boost Power Supply for Laboratory works and personal use, based on LM5175 and ESP32.

This is a pocket-sized, IoT-ed Power Supply.

It's final goal is to meet EEers' daily usage requirements:

- Small Sized - Programmable Voltage and Current settings - High Efficiency - High Reliability - High precision - Multiple control method - Modernized GUI

This project is still under development and test.

Finally get Rt = 84.5kΩ and we select standard value, that is 82kΩ.

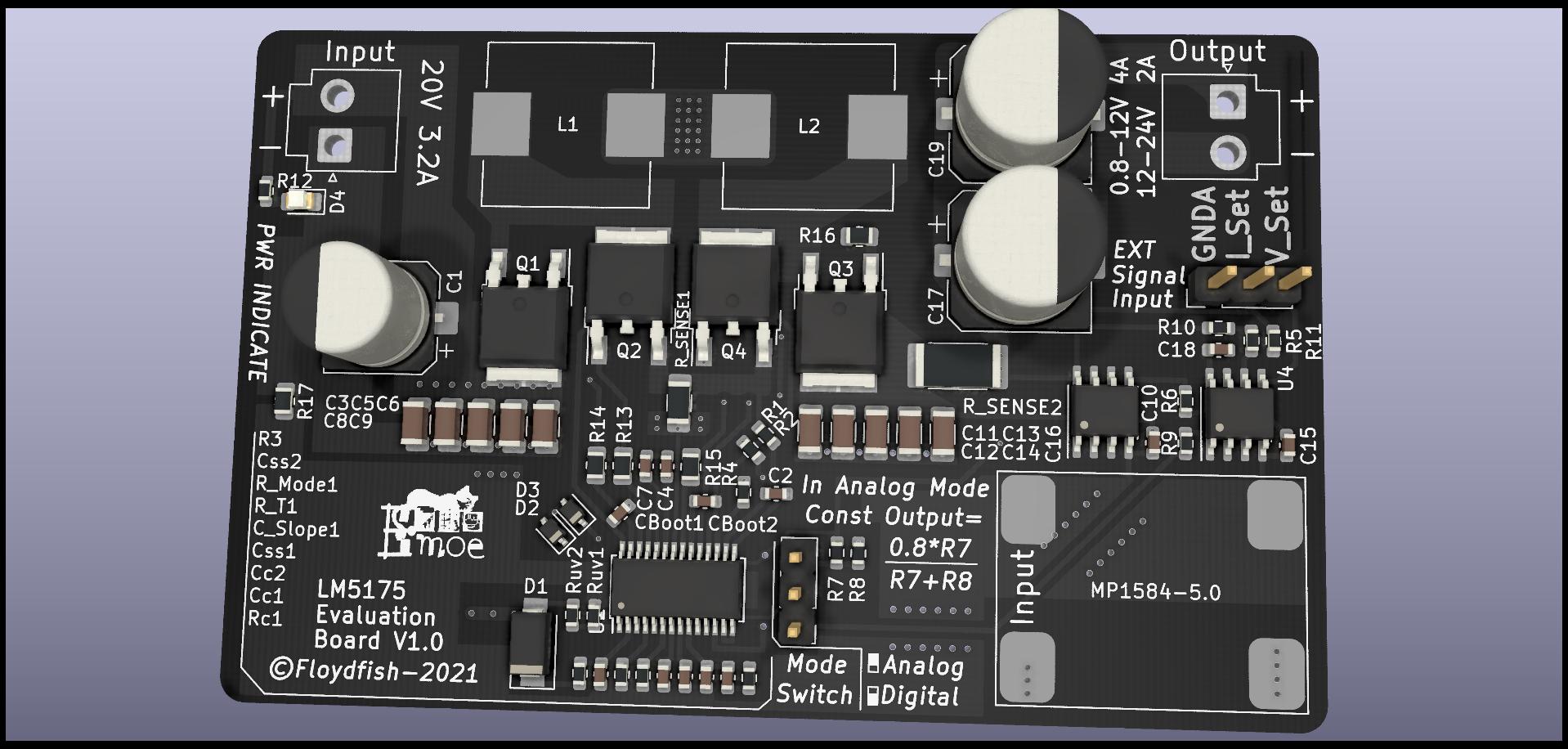

EmoePower, from the project README
From the project README

Main components on the EmoePower

LM5175PWPMAX4080TMAX907

EmoePower bill of materials (BOM)

68 components, 38 distinct parts.

QtyPartRefs
1
LM5175PWP
U2
1
MAX4080T
U3
1
MAX907
U4
4
IRLR8726TRPBF
Q1, Q2, Q3, Q4
1
PWR_IN
J1
1
DAC
J2
1
Mode_Switch
J3
1
PWR_OUT
J4
4
0.1uF
CBoot1, CBoot2, Css1, Css2
1
470pF
C_Slope1
1
22nF
Cc1
1
100pF
Cc2
1
MP1584-3A
MP1584-5.0
1
93.1k
R_Mode1
1
8m
R_SENSE1
1
25m
R_SENSE2
1
82k
R_T1
1
10k
Rc1
1
56k
Ruv1
1
240k
Ruv2
Show 18 more
QtyPartRefs
1
1n4007
D1
2
MBR0520LT
D2, D3
1
LED
D4
2
4.7uH
L1, L2
1
50V 100uF
C1
1
47pF
C2
5
4.7uF
C3, C5, C6, C8, C9
5
0.1uF
C4, C7, C10, C15, C18
5
10uF
C11, C12, C13, C14, C16
2
50V 220uF
C17, C19
3
100
R1, R2, R9
3
10
R3, R5, R6
1
10k
R4
1
280k
R7
2
20k
R8, R11
1
180k
R10
1
4.7k
R12
5
0
R13, R14, R15, R16, R17

EmoePower design files

The KiCad project lives in the emoestudio/EmoePower repository on GitHub; these links point at the commit this page was built from.

EmoePower: common questions

How big is the EmoePower PCB?

The EmoePower measures 82 × 52 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the EmoePower?

68 components, from 38 distinct parts. The full bill of materials is listed on this page.

Where can I download the EmoePower design files?

From the emoestudio/EmoePower repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the EmoePower design in my own project?

Yes, under the terms of its GPL-3.0 license, which emoestudio chose for the repository.
