Spinner

enkhbold470·spinner·kicad/spinner.kicad_pcb

Spinner PCB layout, top view — open source STM32 board by enkhbold470

About the Spinner PCB

Spinner is an open source STM32 PCB design by enkhbold470, published on GitHub under the CERN-OHL-S-2.0 license. It is a 4-layer board measuring 84 × 66 mm, with 83 components from 36 distinct parts.

Its main chip is the STM32G431KBT6, from the STM32 family. Other key parts include the AP63203WU-7, L78L12ABUTR, IR2104STRPBF, MT6701CT-STD and TCAN332GDR. By type, the board carries 34 capacitors, 18 resistors, 8 ICs, 7 diodes, 6 transistors and 5 connectors.

It belongs with the robotics & motion and test & measurement designs in this gallery.

From the project

12-24 V FOC BLDC motor controller: STM32G431, three IR2104 half bridges with 60 V MOSFETs, MT6701 encoder, CAN FD. 4-layer KiCad 10 board.

A 12-24 V field-oriented-control BLDC motor controller: STM32G431, three IR2104 half bridges, MT6701 encoder, CAN FD.

Part of the KiCad projects portfolio. Gerbers are in fab/gerbers/ and zipped in fab/.

Not fabricated, assembled or powered. Every number on this page is measured by KiCad 10 on the files in this folder; the full measurements are in report.json.

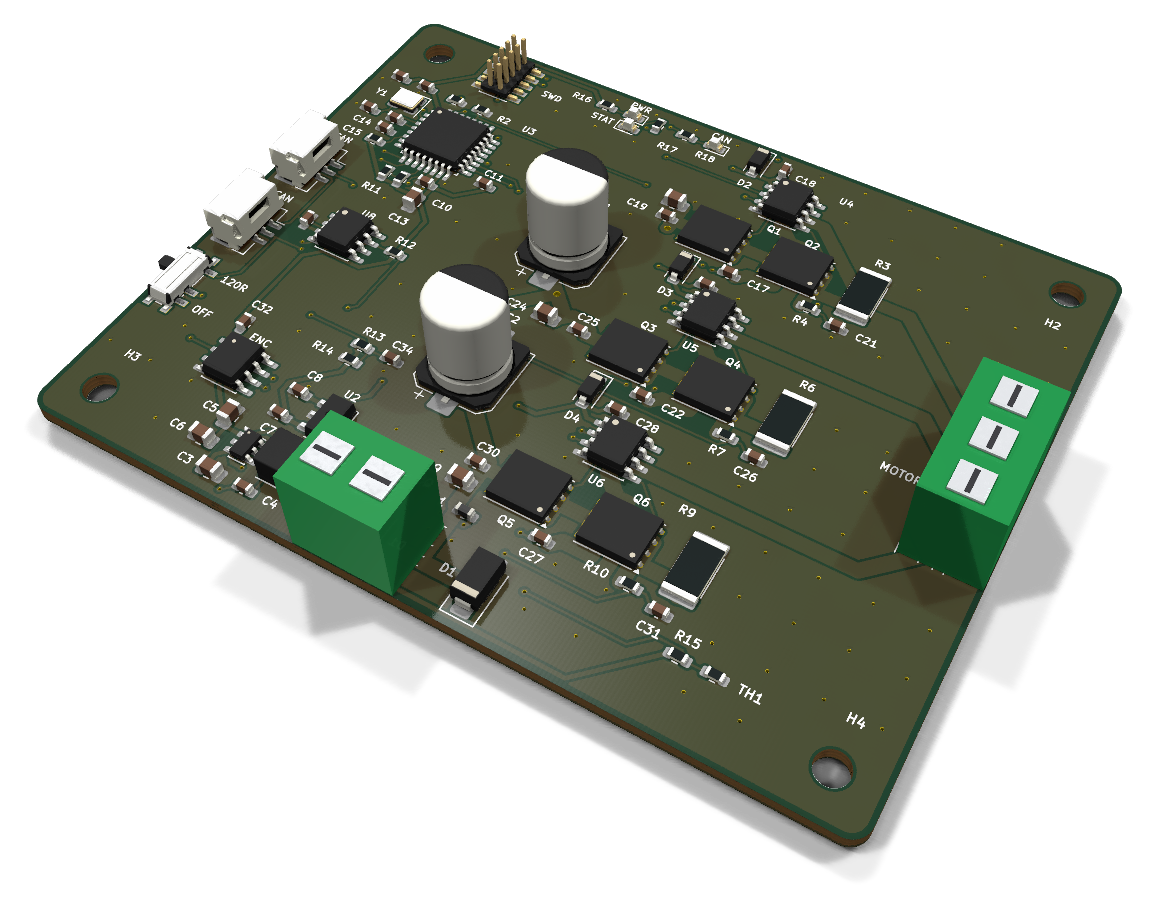

Spinner, from the project README
From the project README

Main components on the Spinner

AP63203WU-7L78L12ABUTRSTM32G431KBT6IR2104STRPBFMT6701CT-STDTCAN332GDR

Spinner bill of materials (BOM)

83 components, 36 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
AP63203WU-7
AP63203WU
U1
1
L78L12ABUTR
L78L12
U2
1
STM32G431KBT6
U3
3
IR2104STRPBF
IR2104S
U4, U5, U6
1
MT6701CT-STD
MT6701CT
U7
1
TCAN332GDR
TCAN332G
U8
6
BSC028N06LS3 G
BSC028N06LS3
Q1, Q2, Q3, Q4, Q5, Q6
1
TAXM8M4RDBCCT2T
8MHz
Y1
1
MX126-5.0-02P-GN01-Cu-S-A
VIN 12-24V
J1
1
PZ127VS-12-10-H10-A38
SWD
J2
1
MX126-5.0-03P-GN01-Cu-S-A
MOTOR
J3
2
SM03B-GHS-TB(LF)(SN)
CAN
J4, J5
1
PCM12SMTR
TERM
SW1
1
NCP18XH103F03RB
10k B3380
TH1
1
SMAJ24A
D1
3
B5819W SL
B5819W
D2, D3, D4
1
KT-0603G
Green (PWR)
D5
1
KT-0603R
Red (STAT)
D6
1
XL-1608UOC-06
Orange (CAN)
D7
1
BLM18PG121SN1D
120R@100MHz
FB1
Show 16 more
QtyPartRefs
1
FNR4030S3R9MT
3.9uH
L1
2
UCD1V221MNL1GS
220uF 35V
C1, C2
4
GRM21BR61H106KE43L
10uF 50V
C3, C19, C24, C29
11
CC0603KRX7R9BB104
100nF
C4, C9, C10, C11, C14, C20, C25, C30 +3
2
CL21A226MAQNNNE
22uF
C5, C6
9
CL10A105KB8NNNC
1uF
C7, C8, C12, C17, C18, C22, C23, C27 +1
1
CL21A475KAQNNNE
4.7uF
C13
2
CL10C120JB8NNNC
12pF
C15, C16
3
CL10B102KB8NNNC
1nF
C21, C26, C31
3
0603WAF4701T5E
4.7k
R1, R14, R15
2
0603WAF1003T5E
100k
R2, R13
3
PA2512FKE7T0R01E
10mΩ
R3, R6, R9
5
0603WAF1001T5E
1k
R4, R7, R10, R17, R18
3
0603WAF3302T5E
33k
R5, R8, R11
1
0603WAF1200T5E
120
R12
1
0603WAF2201T5E
2.2k
R16

Spinner design files

The KiCad project lives in the enkhbold470/spinner repository on GitHub; these links point at the commit this page was built from.

Spinner: common questions

What microcontroller does the Spinner use?

The Spinner is built around the STM32G431KBT6, from the STM32 family.

How big is the Spinner PCB?

The Spinner measures 84 × 66 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the Spinner?

83 components, from 36 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Spinner design files?

From the enkhbold470/spinner repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Spinner design in my own project?

Yes, under the terms of its CERN-OHL-S-2.0 license, which enkhbold470 chose for the repository.

Can I test firmware for the Spinner without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
