Env-KB60MXHS

Envious-Data·Env-KB60F·KiCad Files/MainPCB_MX_HS/Env-KB60MXHS.kicad_pcb

Env-KB60MXHS PCB layout, top view — open source RP2040/RP2350 board by Envious-Data
Simulate this board

About the Env-KB60MXHS PCB

Env-KB60MXHS is an open source RP2040/RP2350 PCB design by Envious-Data, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 283 × 126.5 mm, with 137 components from 8 distinct parts.

Its main chip is the Pico, from the RP2040/RP2350 family. By type, the board carries 1 IC, 1 connector and 1 switch.

It belongs with the keyboards designs in this gallery.

From the project

Another Custom Mechanical Keyboard... F stands for FOREHEAD!

Project Name: KB60F Nickname: Lil Delirium

there are some spare GPIOs and a space for a header (mainly for a small oled) so feel free to add things if you can, I always enjoy seeing people using my keyboards for things I never thought of or intended.

https://github.com/Envious-Data/EnvKB-QMK/tree/main/_PREBUILTFIRMWARES

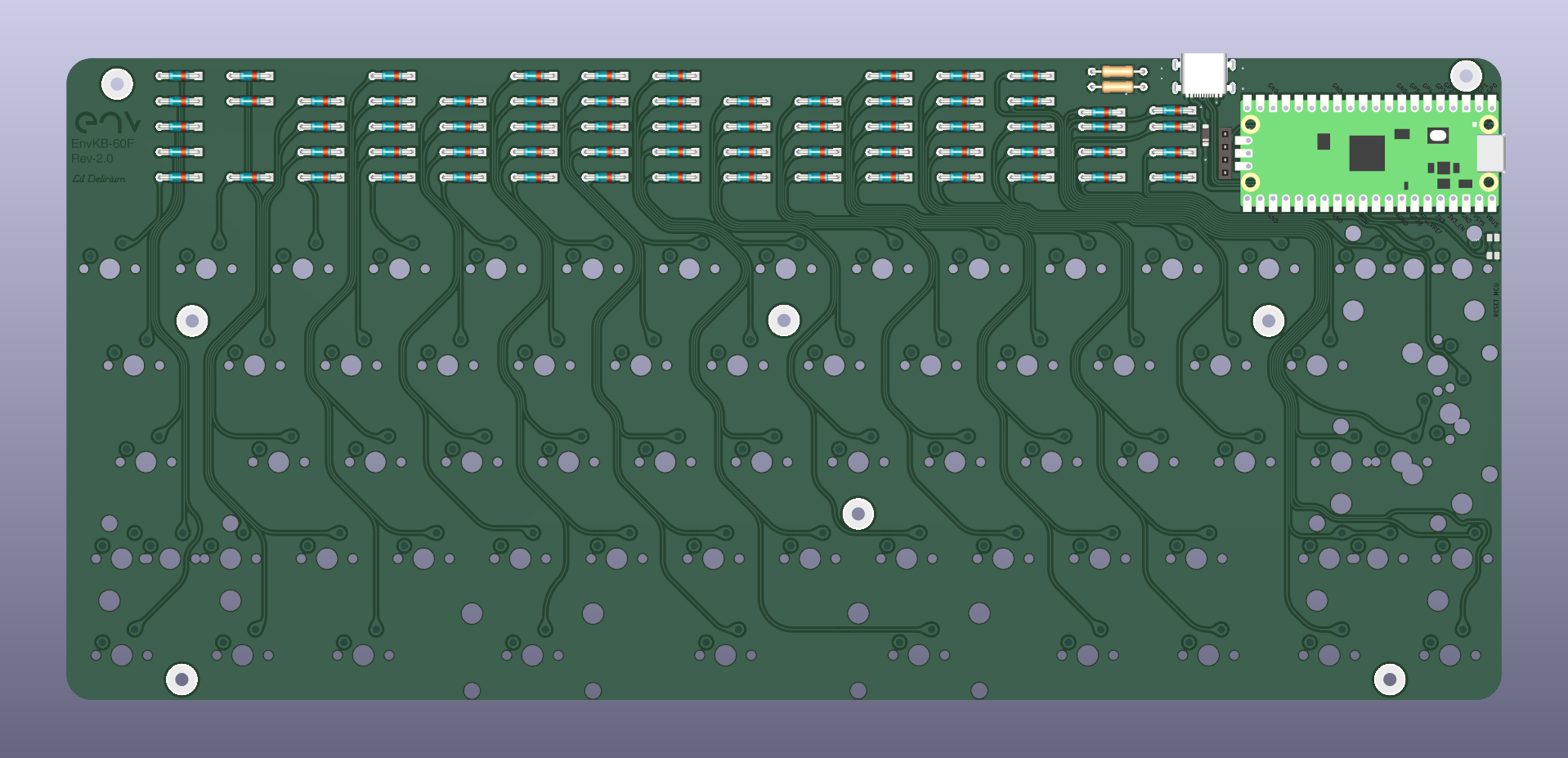

Env-KB60MXHS, from the project README
From the project README

Main components on the Env-KB60MXHS

Pico

Env-KB60MXHS bill of materials (BOM)

137 components, 8 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
Pico
U1
1
CONN_01X04
Conn_01x04
J1
2
5.1K 0805 Resistor
5.1K1, 5.1K2
65
LL4148
D_1, D_2, D_3, D_4, D_5, D_6, D_7, D_8 +57
1
1n5817W
D_64
65
CPG151101S11
K_1, K_2, K_3, K_4, K_5, K_6, K_7, K_8 +57
1
EVQPUL
SW1
1
U262-161N-4BVC11
TYPE-C-31-M-14
XKB Enterprise
USB1

Env-KB60MXHS design files

The KiCad project lives in the Envious-Data/Env-KB60F repository on GitHub; these links point at the commit this page was built from.

Env-KB60MXHS: common questions

What microcontroller does the Env-KB60MXHS use?

The Env-KB60MXHS is built around the Pico, from the RP2040/RP2350 family.

How big is the Env-KB60MXHS PCB?

The Env-KB60MXHS measures 283 × 126.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Env-KB60MXHS?

137 components, from 8 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Env-KB60MXHS design files?

From the Envious-Data/Env-KB60F repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Env-KB60MXHS design in my own project?

Yes, under the terms of its GPL-3.0 license, which Envious-Data chose for the repository.

Can I test firmware for the Env-KB60MXHS without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
