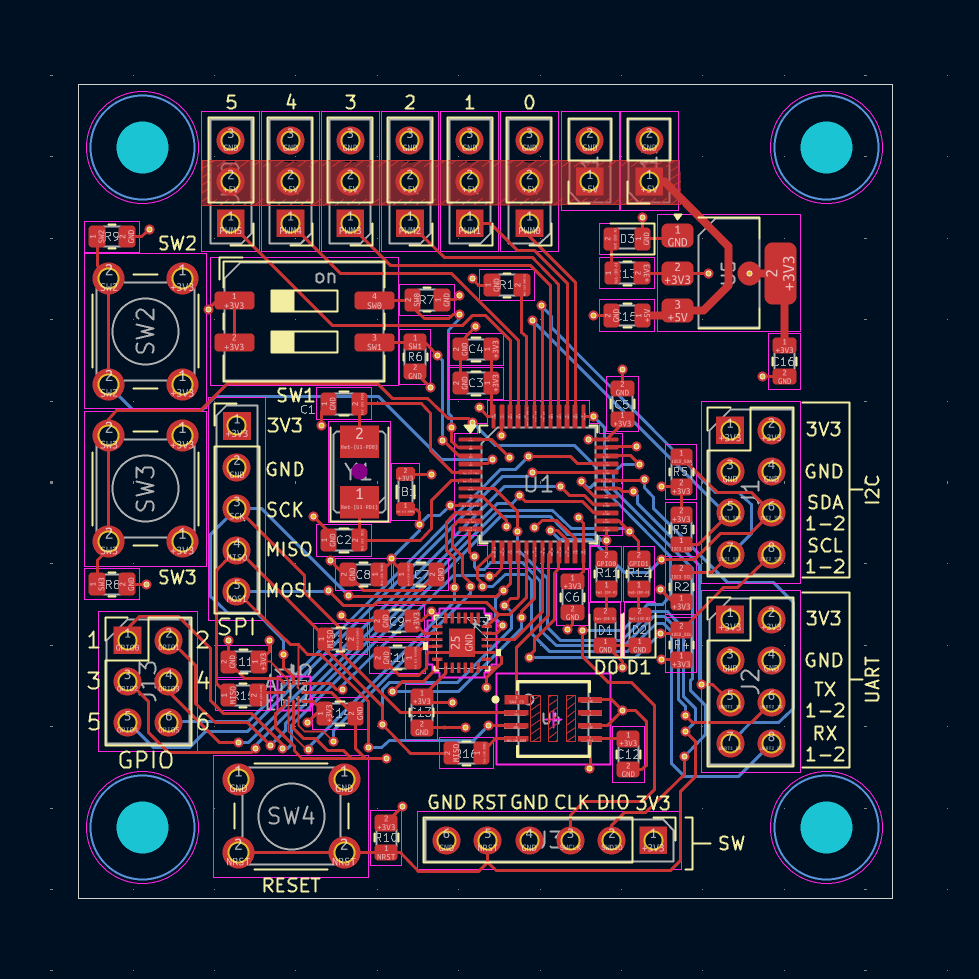

Flight controller PCB layout, top view — open source STM32 board by epicgrowl

About the Flight controller PCB

Flight controller is an open source STM32 PCB design by epicgrowl, published on GitHub. It is a 4-layer board measuring 50 × 50 mm, with 59 components from 30 distinct parts.

Its main chip is the STM32F103CBTX, from the STM32 family. Other key parts include the MPU-6500, BMM150, KP464 and AMS1117-3.3. By type, the board carries 16 capacitors, 16 resistors, 13 connectors, 5 ICs, 4 switches and 3 diodes.

It belongs with the robotics & motion designs in this gallery.

From the project

Probably not a very good design, but fully functional and stable.

Flight controller, from the project README
From the project README

Main components on the Flight controller

STM32F103CBTXMPU-6500BMM150KP464AMS1117-3.3

Flight controller bill of materials (BOM)

59 components, 30 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
STM32F103CBTX
STM32F103CBTx
U1
1
MPU-6500
U2
1
BMM150
U3
1
KP464
U4
1
AMS1117-3.3
U5
1
8M
Y1
2
CONN_01X08_PIN
Conn_01x08_Pin
J1, J2
1
CONN_01X06_PIN
Conn_01x06_Pin
J3
1
CONN_01X05_PIN
Conn_01x05_Pin
J4
6
CONN_01X03_PIN
Conn_01x03_Pin
J5, J6, J7, J8, J9, J10
2
CONN_01X02_SOCKET
Conn_01x02_Socket
J11, J12
1
CONN_02X03_ODD_EVEN
Conn_02x03_Odd_Even
J13
1
SW_DIP_X02
SW_DIP_x02
SW1
3
SW_Push
SW2, SW3, SW4
1
YELLOW
D1
1
RED
D2
1
GREEN
D3
1
100M
FB1
2
18P
18p
C1, C2
2
1u
C3, C8
Show 10 more
QtyPartRefs
4
100N
100n
C4, C5, C6, C7
1
10N
10n
C9
5
0.1U
0.1u
C10, C11, C12, C13, C14
1
10U
10u
C15
1
22U
22u
C16
1
10K
10k
R1
4
4.7K
4.7k
R2, R3, R4, R5
5
R_Small
R6, R7, R8, R9, R10
3
620
R11, R12, R13
3
22
R14, R15, R16

Flight controller design files

The KiCad project lives in the epicgrowl/flight-controller repository on GitHub; these links point at the commit this page was built from.

Flight controller: common questions

What microcontroller does the Flight controller use?

The Flight controller is built around the STM32F103CBTX, from the STM32 family.

How big is the Flight controller PCB?

The Flight controller measures 50 × 50 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the Flight controller?

59 components, from 30 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Flight controller design files?

From the epicgrowl/flight-controller repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Flight controller design in my own project?

The repository has no license, so all rights stay with epicgrowl. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Flight controller without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
