AIO
About the AIO PCB
AIO is an open source RISC-V PCB design by ErBWs, published on GitHub under the GPL-3.0 license. It is a 4-layer board measuring 63.1 × 63.5 mm, with 155 components from 35 distinct parts.
Its main chip is the LQFP-100_14x14mm_P0.5mm, from the RISC-V family. Other key parts include the FD6288Q, RT9013-33GB and ME3116. By type, the board carries 75 resistors, 35 capacitors, 15 diodes, 12 transistors, 9 connectors and 5 ICs.

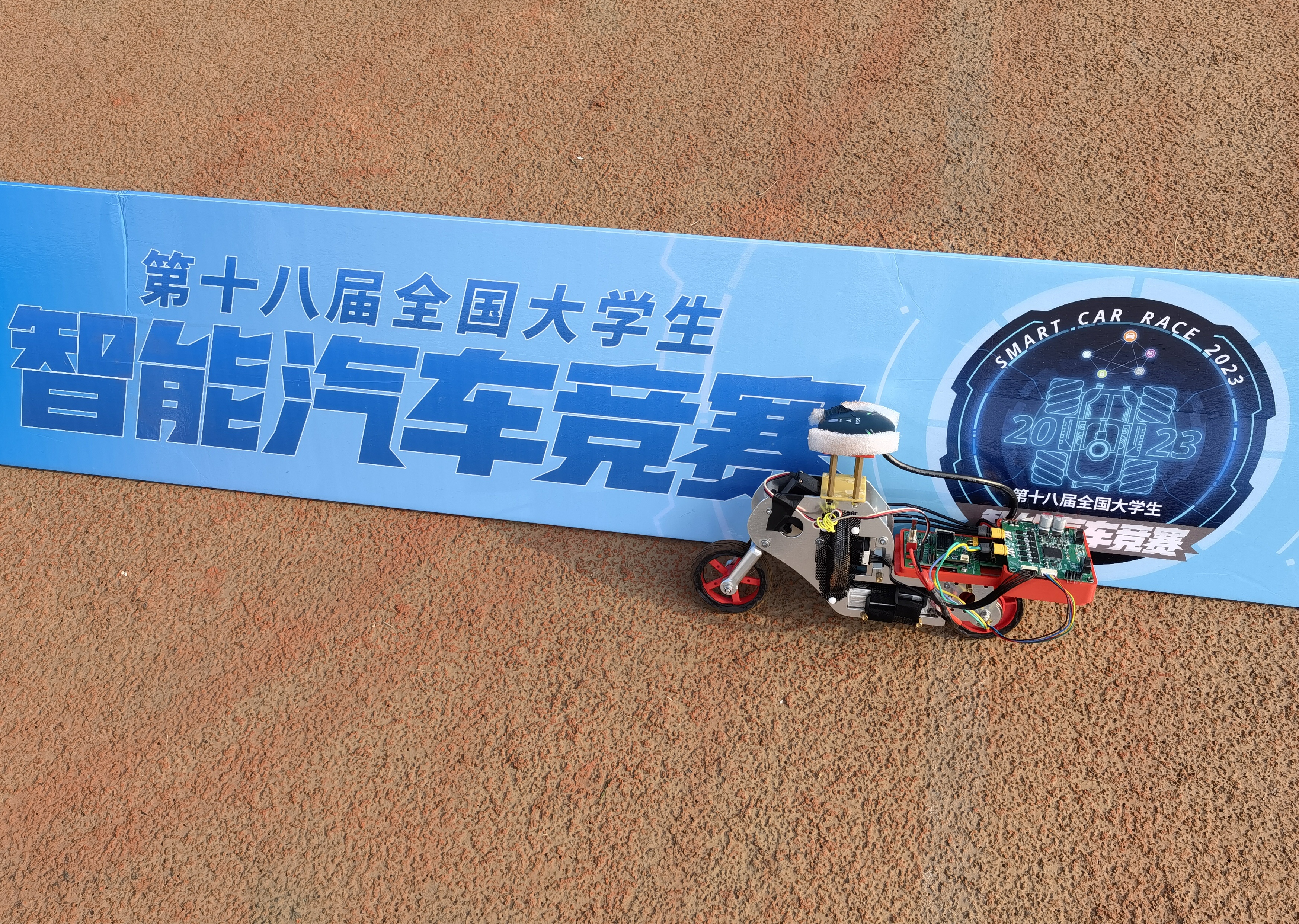

From the project
十八届智能车单车越野
主要采用的算法方案：采用INS/GNSS 组合导航位姿计算，B样条曲线优化规划路线，Stanely纯跟踪算法。
主要硬件方案：自制核心板，与母板采用BTB连接器。无刷驱动开源逐飞方案改版，实际比赛中并未使用改版驱动。
Main components on the AIO
AIO bill of materials (BOM)
155 components, 35 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | FD6288Q | QFN-24-1EP_4x4mm_P0.5mm_EP2.7x2.7mm | IC1, IC2 |
| 1 | ~ | LQFP-100_14x14mm_P0.5mm | U1 |
| 1 | RT9013-33GB | SOT-23-5 | U2 |
| 1 | ME3116 | SOT-23-6 | U3 |
| 12 | NMOS | TPH1R403NL | Q1, Q2, Q3, Q4, Q5, Q6, Q7, Q8 +4 |
| 1 | 8MHZ 8MHz | Crystal_SMD_3225_4P | Y1 |
| 1 | FLY_WHEEL | PinSocket_2x03_P2.54mm_Horizontal | J1 |
| 1 | SWD&UART | JST_SH_SM05B-SRSS-TB_1x05-1MP_P1.00mm_Horizontal | J2 |
| 1 | MOTOR_BACK | PinSocket_2x03_P2.54mm_Horizontal | J3 |
| 2 | MR30 | MR30 | J4, J5 |
| 2 | Hall | JST_ZE_SM06B-ZESS-TB_1x06-1MP_P1.50mm_Horizontal | J6, J7 |
| 2 | MOTOR | AMASS_XT30PW-M_1x02_P2.50mm_Horizontal | J8, J9 |
| 2 | SW_SPDT | SPDT_12C01 | SW1, SW2 |
| 11 | 1N5819 | SOD-323 | D1, D2, D3, D4, D5, D6, D7, D8 +3 |
| 1 | 1N4148W | D_SMA | D11 |
| 1 | TVS | D_SMB | D12 |
| 2 | LED | LED_0603_1608Metric | D13, D14 |
| 1 | 6.8UH 6.8uH | L_NR201612 | L1 |
| 2 | 1UF 1uF | C_0402 | C1, C2 |
| 11 | 10UF 10uF | C_0402 | C3, C4, C12, C13, C14, C15, C16, C17 +3 |
Show 15 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 12 | 100NF 100nF | C_0402 | C5, C6, C7, C8, C9, C10, C11, C18 +4 |
| 2 | 20PF 20pF | C_0402 | C19, C20 |
| 7 | 10NF 10nF | C_0402 | C21, C22, C23, C24, C25, C26, C34 |
| 1 | 100PF 100pF | C_0402 | C28 |
| 29 | 10K | R_0402 | R1, R5, R6, R9, R14, R15, R18, R20 +21 |
| 2 | 4K7 | R_0402 | R2, R11 |
| 2 | 1K5 | R_0402 | R3, R12 |
| 5 | 1K | R_0402 | R4, R7, R13, R16, R75 |
| 10 | 100R | R_0402 | R8, R10, R17, R19, R56, R57, R58, R59 +2 |
| 12 | 4R7 | R_0402 | R21, R22, R23, R24, R25, R26, R35, R36 +4 |
| 2 | 2MR 2mR | R_2512_6332Metric | R49, R50 |
| 3 | 0R | R_0402 | R60, R63, R70 |
| 6 | 4.7K | R_0402 | R64, R65, R66, R67, R68, R69 |
| 3 | 5K1 | R_0402 | R71, R72, R73 |
| 1 | 1M | R_0402 | R74 |
AIO design files
The KiCad project lives in the ErBWs/CH32-Bike-Overland repository on GitHub; these links point at the commit this page was built from.
AIO: common questions
What microcontroller does the AIO use?
The AIO is built around the LQFP-100_14x14mm_P0.5mm, from the RISC-V family.
How big is the AIO PCB?
The AIO measures 63.1 × 63.5 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the AIO?
155 components, from 35 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the AIO design files?
From the ErBWs/CH32-Bike-Overland repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the AIO design in my own project?
Yes, under the terms of its GPL-3.0 license, which ErBWs chose for the repository.
Can I test firmware for the AIO without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RISC-V firmware against it before you order a PCB.
