5x9

evansj·ESP32-LED·PCB/5x9/5x9.kicad_pcb

5x9 PCB layout, top view — open source board by evansj
Simulate this board

About the 5x9 PCB

5x9 is an open source PCB design by evansj, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 10 × 22 mm, with 57 components from 3 distinct parts.

By type, the board carries 45 diodes, 10 capacitors and 2 connectors.

From the project

A Stargate thing...

This is an open source project, but bear in mind you cannot sell boards bearing the Andrews & Arnold Ltd name, the A&A logo, the registered trademark AJK logo, or the GS1 allocated EANs assigned to Andrews & Arnold Ltd.

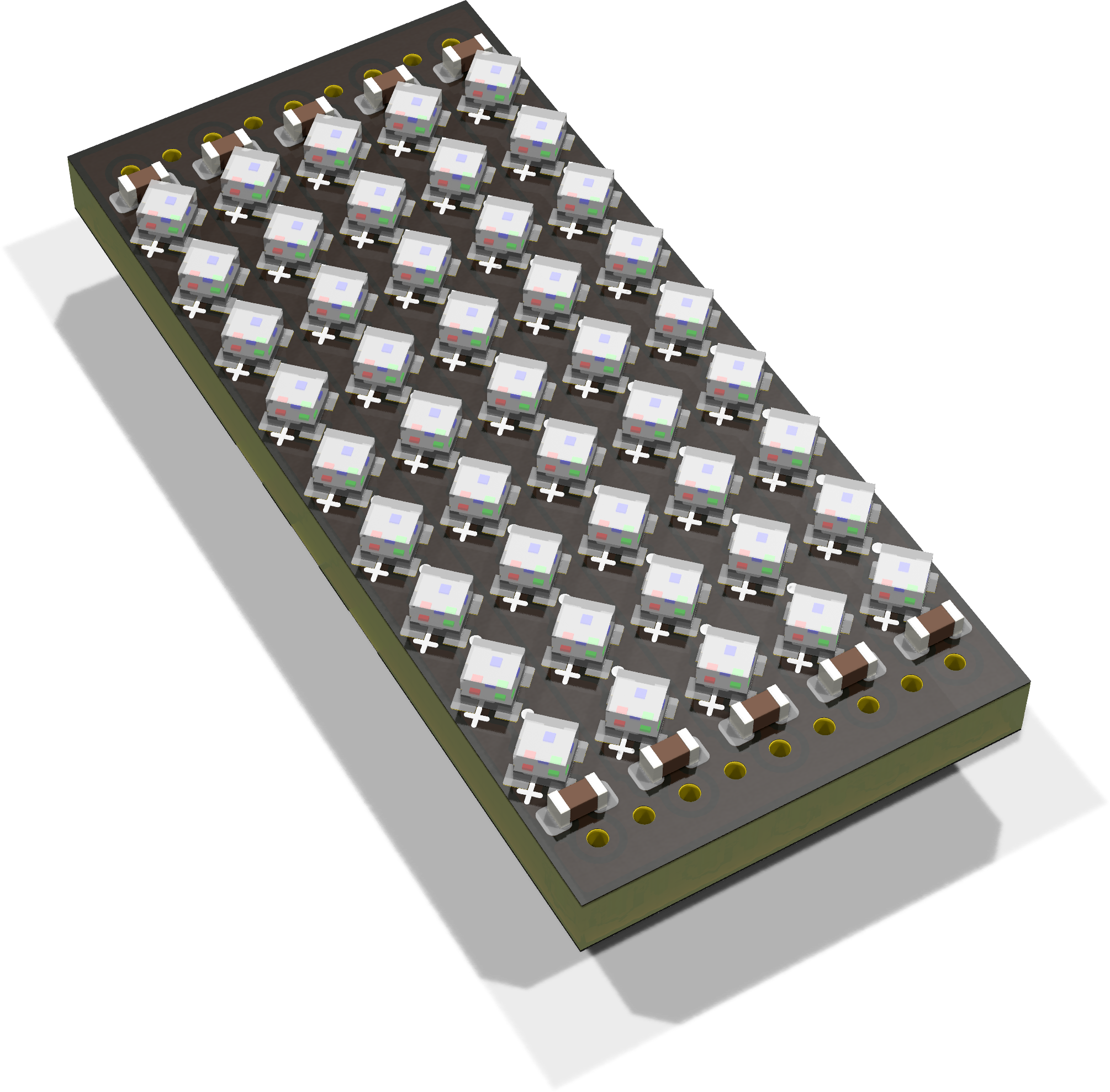

5x9, from the project README
From the project README

5x9 bill of materials (BOM)

57 components, 3 distinct parts — part numbers from the project's BOM.

QtyPartRefs
2
CONN_01X03
Conn_01x03
J1, J2
45
C5349953
XL-1010RGBC-WS2812B
D1, D2, D3, D4, D5, D6, D7, D8 +37
10
330NF
330nF
C1, C2, C3, C4, C5, C6, C7, C8 +2

5x9 design files

The KiCad project lives in the evansj/ESP32-LED repository on GitHub; these links point at the commit this page was built from.

5x9: common questions

How big is the 5x9 PCB?

The 5x9 measures 10 × 22 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the 5x9?

57 components, from 3 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the 5x9 design files?

From the evansj/ESP32-LED repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the 5x9 design in my own project?

Yes, under the terms of its GPL-3.0 license, which evansj chose for the repository.
