Stargate

evansj·ESP32-LED·PCB/Gate/Gate.kicad_pcb

Stargate PCB layout, top view — open source board by evansj
Simulate this board

About the Stargate PCB

Stargate is an open source PCB design by evansj, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 137 × 148.9 mm, with 1014 components from 2 distinct parts.

By type, the board carries 507 diodes and 507 capacitors.

From the project

A Stargate thing...

This is an open source project, but bear in mind you cannot sell boards or cases bearing the Andrews & Arnold Ltd name, the A&A logo, the registered trademark AJK logo, or the GS1 allocated EANs assigned to Andrews & Arnold Ltd.

3D case designs are normally automatically created from the PCB so as to ensure correct details and placement of apertures, etc.

- Stargate - StargateBottom - StargateRamp - StargateRampBottom - StargateRampTop - StargateTop

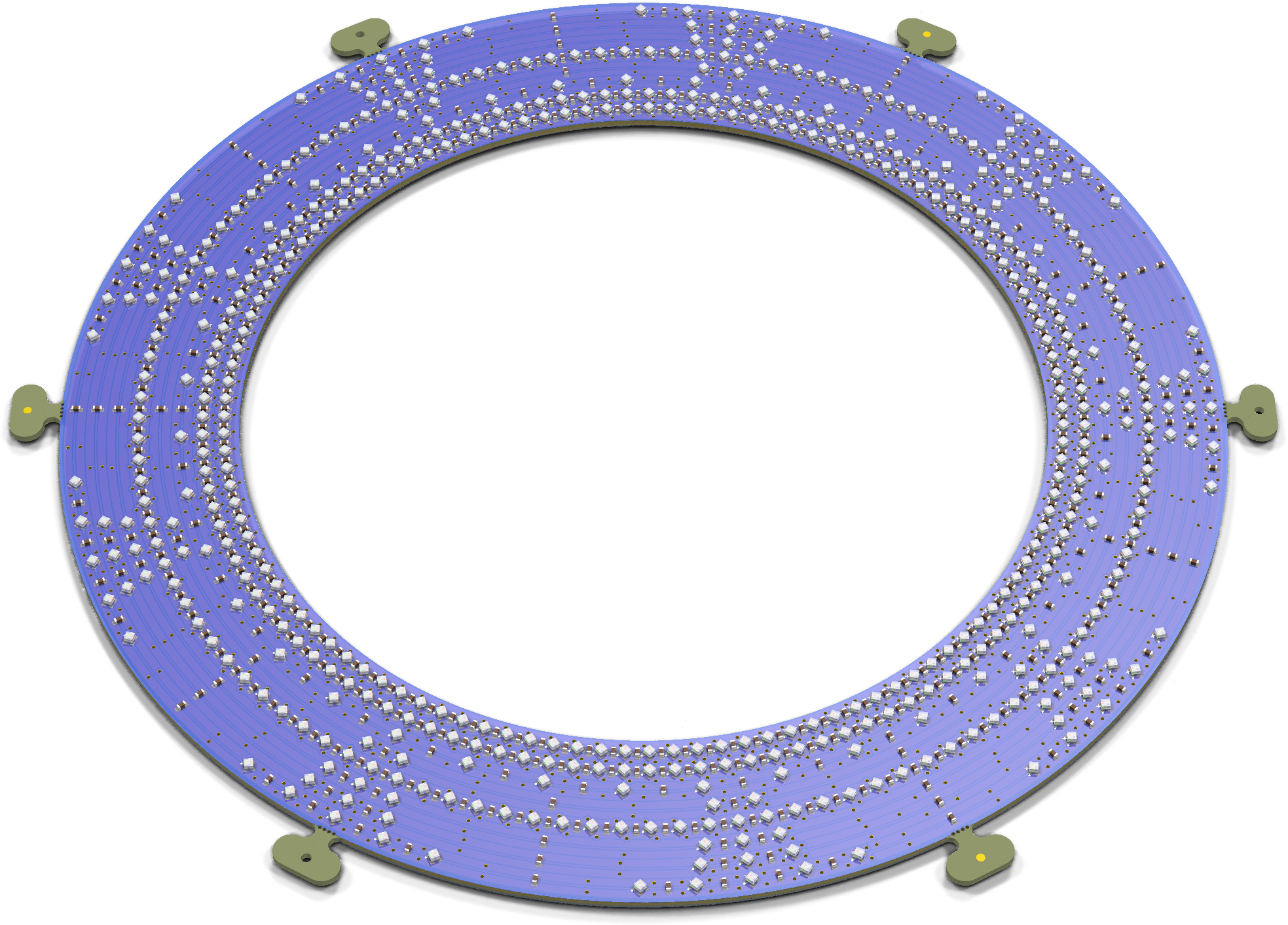

Stargate, from the project README
From the project README

Stargate bill of materials (BOM)

1014 components, 2 distinct parts — part numbers from the project's BOM.

QtyPartRefs
507
C5349953
XL-1010RGBC-WS2812B
D1, D2, D3, D4, D5, D6, D7, D8 +499
507
100NF
100nF
C1, C2, C3, C4, C5, C6, C7, C8 +499

Stargate design files

The KiCad project lives in the evansj/ESP32-LED repository on GitHub; these links point at the commit this page was built from.

Stargate: common questions

How big is the Stargate PCB?

The Stargate measures 137 × 148.9 mm, has 2 copper layers and is 1 mm thick.

How many components are on the Stargate?

1014 components, from 2 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Stargate design files?

From the evansj/ESP32-LED repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Stargate design in my own project?

Yes, under the terms of its GPL-3.0 license, which evansj chose for the repository.
