Gate2
About the Gate2 PCB

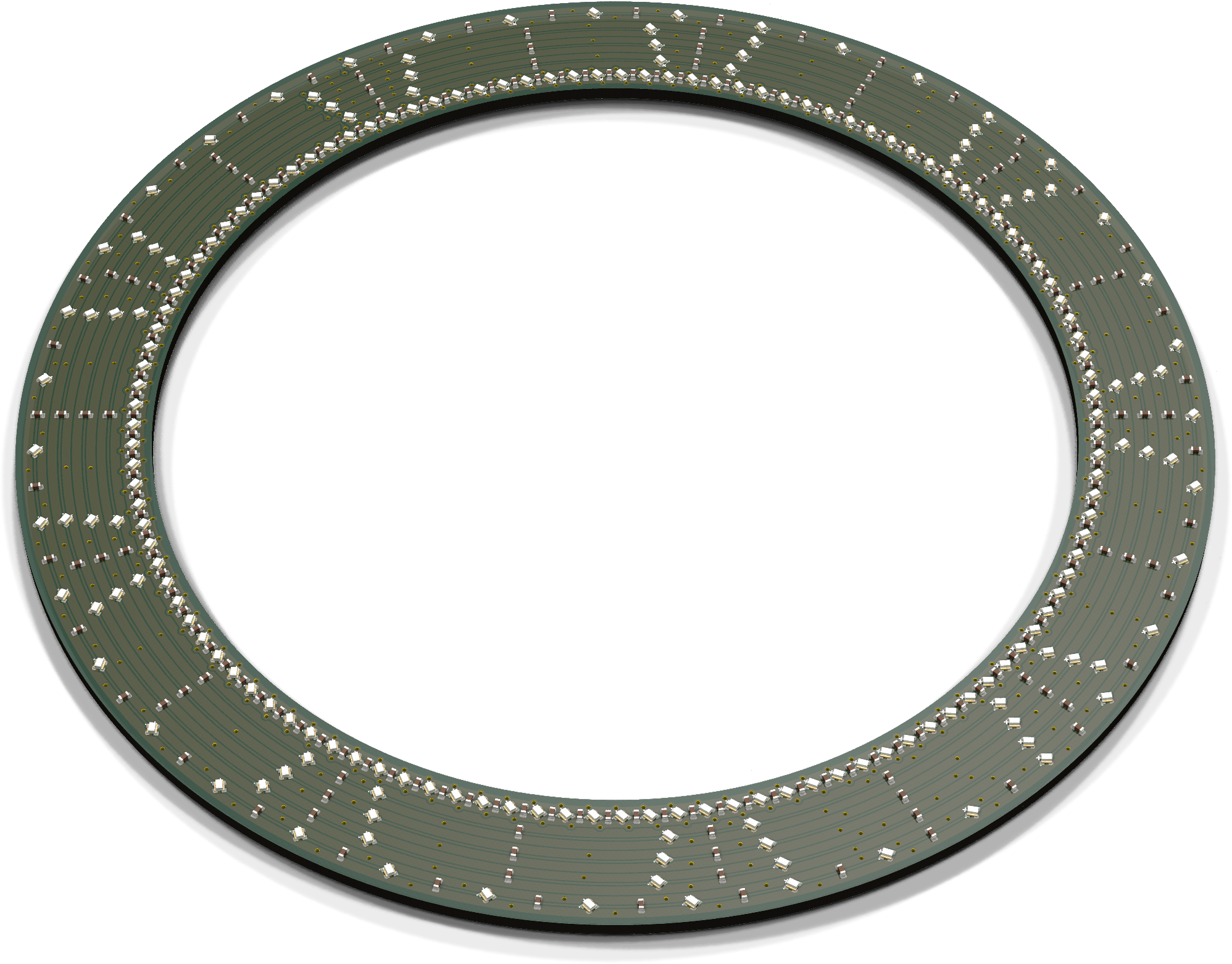

Gate2 is an open source PCB design by evansj, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 124 × 124 mm, with 420 components from 2 distinct parts.
By type, the board carries 210 diodes and 210 capacitors.
From the project
A Stargate thing...
This is an open source project, but bear in mind you cannot sell boards bearing the Andrews & Arnold Ltd name, the A&A logo, the registered trademark AJK logo, or the GS1 allocated EANs assigned to Andrews & Arnold Ltd.
Gate2 bill of materials (BOM)
420 components, 2 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 210 | C5349953 XL-1010RGBC-WS2812B | SMD1010-Hole | D1, D2, D3, D4, D5, D6, D7, D8 +202 |
| 210 | 330NF 330nF | Dummy | C1, C2, C3, C4, C5, C6, C7, C8 +202 |
Gate2 design files
The KiCad project lives in the evansj/ESP32-LED repository on GitHub; these links point at the commit this page was built from.
Gate2: common questions
How big is the Gate2 PCB?
The Gate2 measures 124 × 124 mm, has 2 copper layers and is 1 mm thick.
How many components are on the Gate2?
420 components, from 2 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Gate2 design files?
From the evansj/ESP32-LED repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Gate2 design in my own project?
Yes, under the terms of its GPL-3.0 license, which evansj chose for the repository.
