Clock
About the Clock PCB

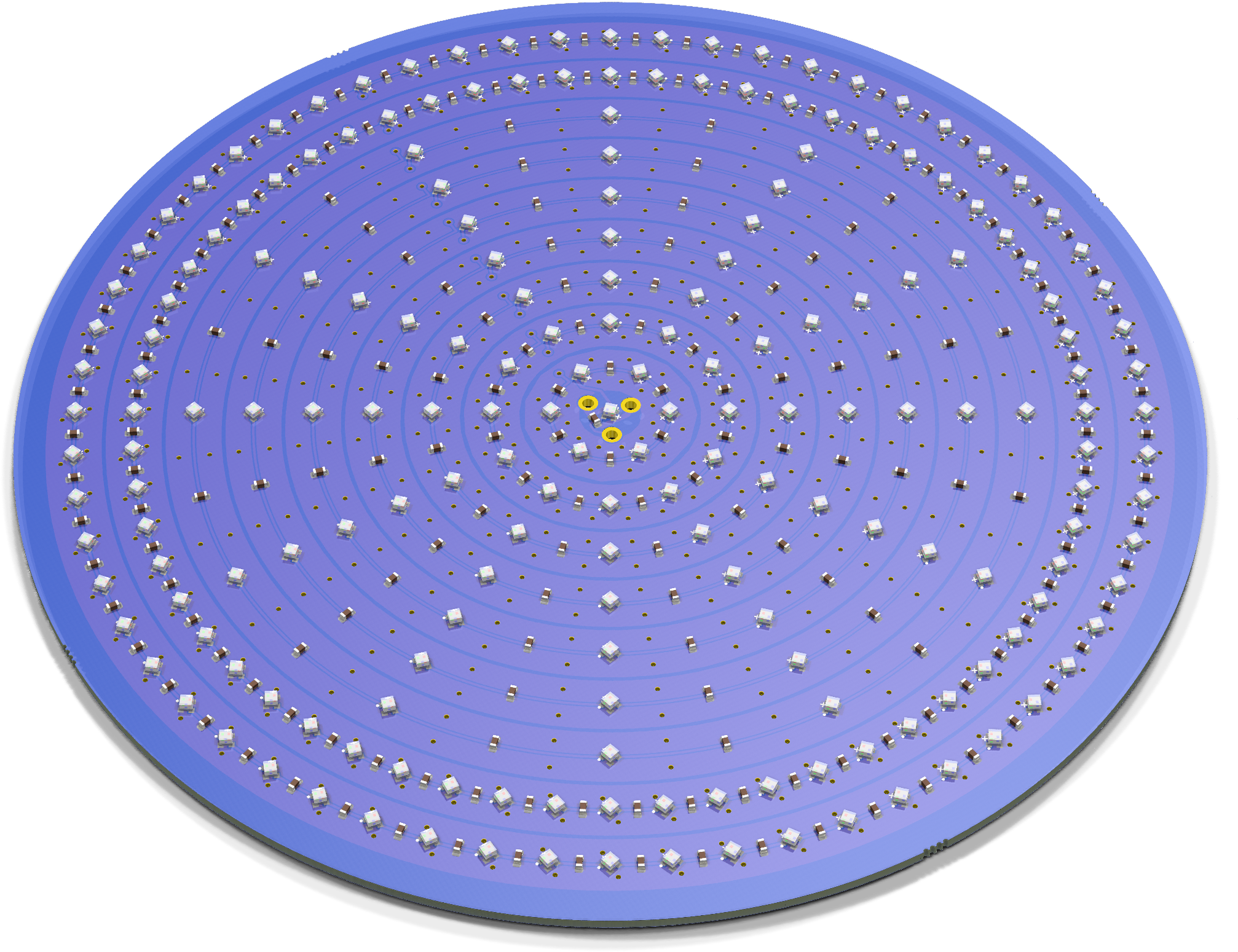

Clock is an open source PCB design by evansj, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 120 × 120 mm, with 401 components from 5 distinct parts.
By type, the board carries 199 diodes, 199 capacitors and 3 test points.
From the project
A Stargate thing...
This is an open source project, but bear in mind you cannot sell boards bearing the Andrews & Arnold Ltd name, the A&A logo, the registered trademark AJK logo, or the GS1 allocated EANs assigned to Andrews & Arnold Ltd.
Clock bill of materials (BOM)
401 components, 5 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | GND | Round | TP1 |
| 1 | DIN | Round | TP2 |
| 1 | PWR | Round | TP3 |
| 199 | C5349953 XL-1010RGBC-WS2812B | SMD1010 | D1, D2, D3, D4, D5, D6, D7, D8 +191 |
| 199 | 100NF 100nF | C_0402 | C1, C2, C3, C4, C5, C6, C7, C8 +191 |
Clock design files
The KiCad project lives in the evansj/ESP32-LED repository on GitHub; these links point at the commit this page was built from.
Clock: common questions
How big is the Clock PCB?
The Clock measures 120 × 120 mm, has 2 copper layers and is 1 mm thick.
How many components are on the Clock?
401 components, from 5 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Clock design files?
From the evansj/ESP32-LED repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Clock design in my own project?
Yes, under the terms of its GPL-3.0 license, which evansj chose for the repository.
