Led matrix

farazaleboyeh·led-matrix·hardware/led-matrix.kicad_pcb

Led matrix PCB layout, top view — open source board by farazaleboyeh

About the Led matrix PCB

Led matrix is an open source PCB design by farazaleboyeh, published on GitHub. It is a 2-layer board measuring 154.7 × 125.7 mm, with 158 components from 7 distinct parts.

Other key parts include the 74HC595. By type, the board carries 100 diodes, 40 resistors, 10 transistors, 5 ICs and 3 connectors.

It belongs with the displays & leds and dev boards & breakouts designs in this gallery.

From the project

Graphics driver & hardware design for a custom-built display that shows streamed music artwork. [In Progress]

The system works by first calling Spotify's APIs to fetch all data regarding the user's playing music. From the given information, a link to the album art is then used to store all JPEG data (as a stream of bytes) to an internal buffer. The TJpg Decoder library is used to decode the buffer as RGB565 data (locally), which perpetually reaches out to a separate callback function, which converts again to RGB888 and also writes to the display's back framebuffer. When the front and back framebuffers are swapped, a continuously firing interrupt displays the artwork by streaming the bitplanes…

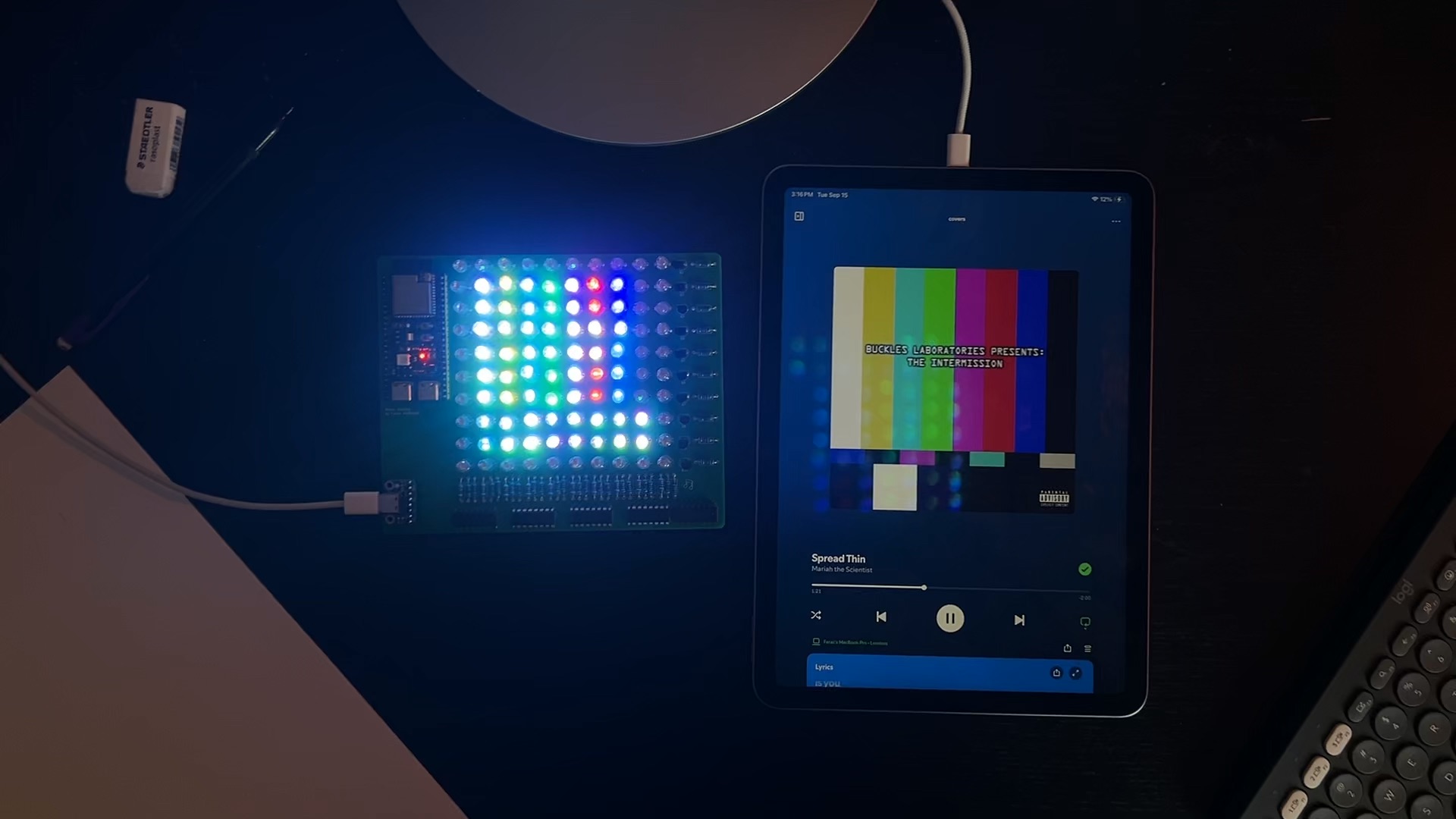

Led matrix, from the project README
From the project README

Main components on the Led matrix

74HC595

Led matrix bill of materials (BOM)

158 components, 7 distinct parts.

QtyPartRefs
5
74HC595
U1, U2, U3, U4, U5
9
Q_PNP_BCE
Q1, Q2, Q3, Q4, Q5, Q6, Q7, Q8 +1
1
Q_PNP_EBC
Q10
2
Conn_01x22
J1, J2
1
Conn_01x08
J3
100
LED_RGBA
D1, D2, D3, D4, D5, D6, D7, D8 +92
40
R
R1, R2, R3, R4, R5, R6, R7, R8 +32

Led matrix design files

The KiCad project lives in the farazaleboyeh/led-matrix repository on GitHub; these links point at the commit this page was built from.

Led matrix: common questions

How big is the Led matrix PCB?

The Led matrix measures 154.7 × 125.7 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Led matrix?

158 components, from 7 distinct parts. The full bill of materials is listed on this page.

Where can I download the Led matrix design files?

From the farazaleboyeh/led-matrix repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Led matrix design in my own project?

The repository has no license, so all rights stay with farazaleboyeh. Use it as a reference, and ask the author before reusing the design.
