AD7124-4-Implementation PCB layout, top view — open source NXP board by fedecastellaro
Simulate this board

About the AD7124-4-Implementation PCB

AD7124-4-Implementation is an open source NXP PCB design by fedecastellaro, published on GitHub. It is a 2-layer board measuring 114.2 × 98.8 mm, with 36 components from 26 distinct parts.

Its main chip is the LPCXPRESSO1769, from the NXP family. Other key parts include the LM2575-5.0, MP3V5050GP, MCP6002-xSN, AD7124 and NCP1117ST33T3G. By type, the board carries 14 capacitors, 8 resistors, 7 ICs, 3 connectors, 1 switch and 1 diode.

From the project

AD7124-4 - 24-Bit ADC, 4-Channel , Sigma-Delta - PCB and software implementation

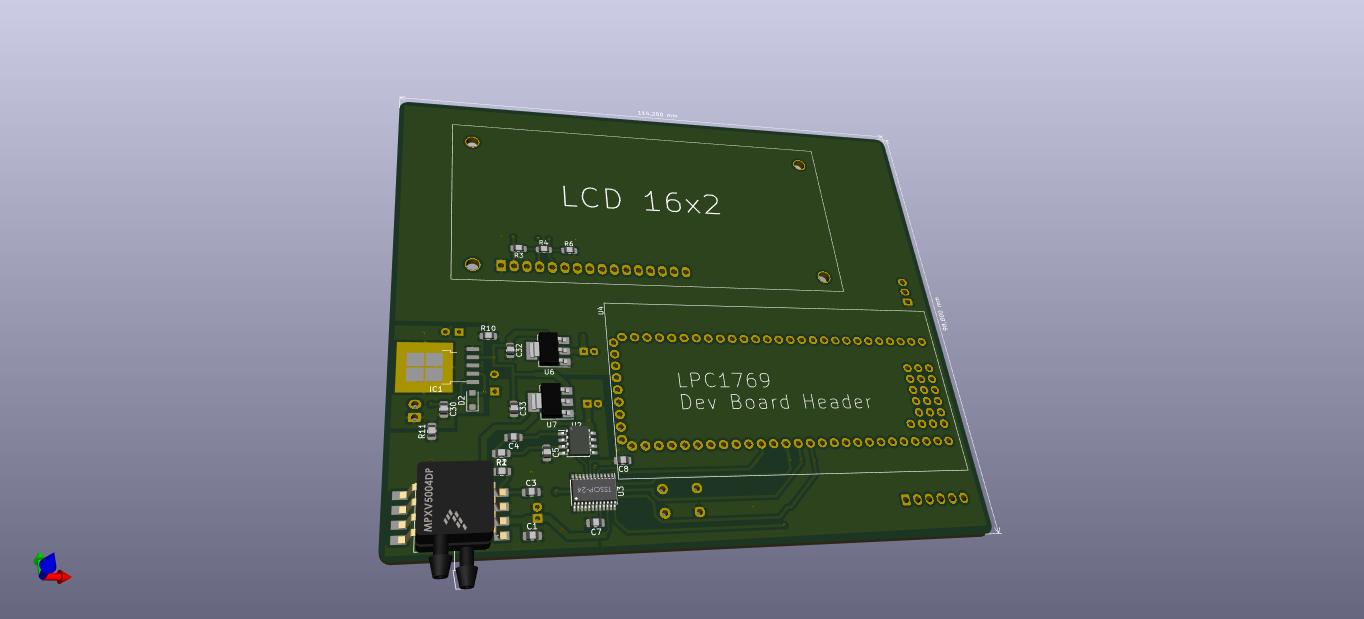

This are the files of a very simple but effective Sphygmomanometer. It uses a MP3V5050GP as a pressure sensor, a 2nd order Butterworth low pass filter, a LPC1769 dev-board as uC, and a LCD 16x2 to present values.

AD7124-4-Implementation, from the project README
From the project README

Main components on the AD7124-4-Implementation

LM2575-5.0MP3V5050GPMCP6002-xSNAD7124LPCXPRESSO1769NCP1117ST33T3GLDL1117S30R

AD7124-4-Implementation bill of materials (BOM)

36 components, 26 distinct parts.

QtyPartRefs
1
LM2575-5.0
IC1
1
MP3V5050GP
U1
1
MCP6002-xSN
U2
1
AD7124
U3
1
LPCXPRESSO1769
U4
1
NCP1117ST33T3G
U6
1
LDL1117S30R
U7
1
Comunicacion con PC
J1
1
bateria
J2
1
AUX
J3
1
HY1602E
DS1
1
RESET
SW1
1
MBR120E5FT1G
D2
1
220uH
L1
3
0.1uF
C1, C7, C8
1
1.0uF
C2
1
470pF
C3
2
10nF
C4, C5
4
100nF
C29, C30, C32, C33
1
220uF
C31
Show 6 more
QtyPartRefs
2
10uF
C34, C35
2
33K
R1, R2
1
470R
R3
2
1K
R4, R6
1
100k
R5
2
0
R10, R11

AD7124-4-Implementation design files

The KiCad project lives in the fedecastellaro/AD7124-4-Implementation repository on GitHub; these links point at the commit this page was built from.

AD7124-4-Implementation: common questions

What microcontroller does the AD7124-4-Implementation use?

The AD7124-4-Implementation is built around the LPCXPRESSO1769, from the NXP family.

How big is the AD7124-4-Implementation PCB?

The AD7124-4-Implementation measures 114.2 × 98.8 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the AD7124-4-Implementation?

36 components, from 26 distinct parts. The full bill of materials is listed on this page.

Where can I download the AD7124-4-Implementation design files?

From the fedecastellaro/AD7124-4-Implementation repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the AD7124-4-Implementation design in my own project?

The repository has no license, so all rights stay with fedecastellaro. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the AD7124-4-Implementation without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug NXP firmware against it before you order a PCB.
