1 CH 4-20 mA to voltage converter board

Fescron·2ch-4-20mA-converter·hardware/1ch-4-20mA/1ch-4-20mA.kicad_pcb

1 CH 4-20 mA to voltage converter board layout, top view — open source board by Fescron
Simulate this board

About the 1 CH 4-20 mA to voltage converter board

1 CH 4-20 mA to voltage converter board is an open source PCB design by Fescron, published on GitHub. It is a 2-layer board measuring 32.4 × 24.8 mm, with 8 components from 8 distinct parts.

Other key parts include the LMP8640. By type, the board carries 3 resistors, 2 connectors, 1 IC, 1 jumper and 1 capacitor.

It belongs with the test & measurement, sensors and dev boards & breakouts designs in this gallery.

From the project

1/2 channel 4-20 mA to voltage converter boards using LMP8640 current sense monitor.

This board converts two 4 - 20 mA signals to a voltage using a LMP8640 Current Shunt Monitor from Texas Instruments. To provide power to the 4 - 20 mA sensors a TEC2-0913 2W 15V Isolated DC-DC converter is used from Traco Power. Quick-connect terminals from Phoenix Contact are also used.

To allow for extensive testing three separate GND nets/planes and a lot of test points are used. They can be connected together using jumpers if necessary. The power supply can also be disabled and fully disconnected from the sensors using a jumper as well (wich can also be used to measure the in-line…

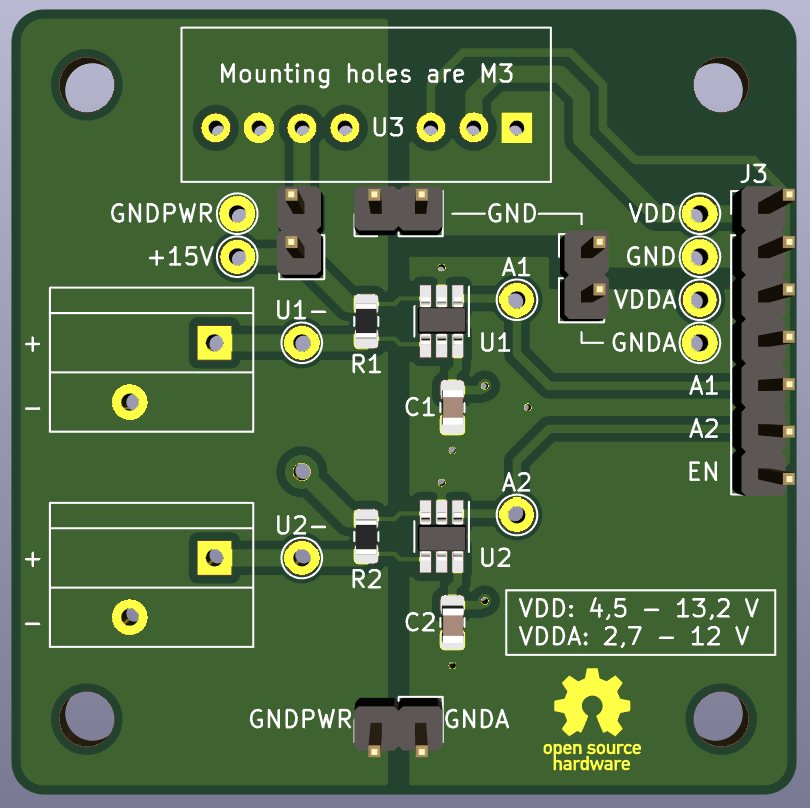

1 CH 4-20 mA to voltage converter board, from the project README
From the project README

Main components on the 1 CH 4-20 mA to voltage converter board

LMP8640

1 CH 4-20 mA to voltage converter board bill of materials (BOM)

8 components, 8 distinct parts.

QtyPartRefs
1
LMP8640
U1
1
Conn_01x02
J1
1
Conn_01x03
J2
1
Jumper_NC_Small
JP1
1
100 nF
C1
1
270 Ω
R1
1
4,99 Ω
R2
1
0 Ω
R3

1 CH 4-20 mA to voltage converter board design files

The KiCad project lives in the Fescron/2ch-4-20mA-converter repository on GitHub; these links point at the commit this page was built from.

1 CH 4-20 mA to voltage converter board: common questions

How big is the 1 CH 4-20 mA to voltage converter board?

The 1 CH 4-20 mA to voltage converter board measures 32.4 × 24.8 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the 1 CH 4-20 mA to voltage converter board?

8 components, from 8 distinct parts. The full bill of materials is listed on this page.

Where can I download the 1 CH 4-20 mA to voltage converter board design files?

From the Fescron/2ch-4-20mA-converter repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the 1 CH 4-20 mA to voltage converter board design in my own project?

The repository has no license, so all rights stay with Fescron. Use it as a reference, and ask the author before reusing the design.
