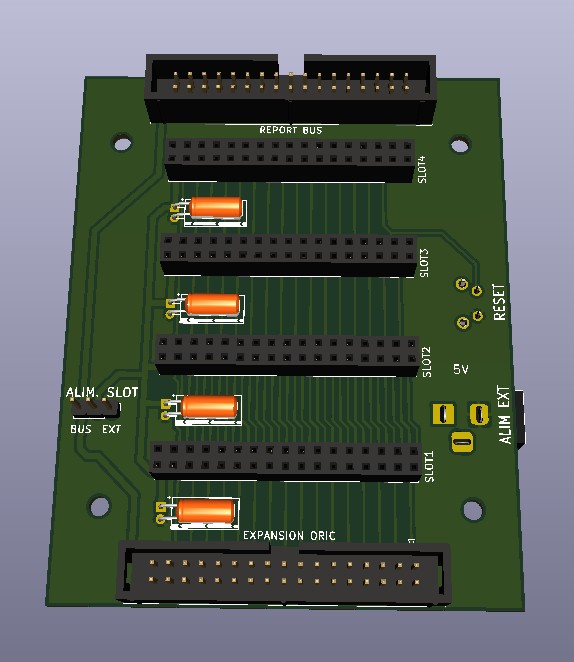

PLATINE BUS ORIC PCB layout, top view — open source board by Fred72z

About the PLATINE BUS ORIC PCB

PLATINE BUS ORIC is an open source PCB design by Fred72z, published on GitHub under the GPL-2.0 license. It is a 2-layer board measuring 76.2 × 94.6 mm, with 13 components from 10 distinct parts.

By type, the board carries 7 connectors, 4 capacitors, 1 jumper and 1 switch.

From the project

Extensions pour ORIC1-ATMOS

Les extensions peuvent être alimentées à partir de l'alimentation de l'ORIC ou à partir d'une alimentation externe. Le choix se fait par un cavalier à 2 positions. La platine possède un bouton RESET sur le côté. Les extensions sont placées en page 3 et sont compatibles avec le contrôleur microdisc. Les extensions à venir sont:

PLATINE BUS ORIC, from the project README
From the project README

PLATINE BUS ORIC bill of materials (BOM)

13 components, 10 distinct parts.

QtyPartRefs
1
EXPANSION ORIC
J1
1
SLOT1
J2
1
SLOT2
J3
1
SLOT3
J4
1
REPORT BUS
J5
1
5V
J6
1
SLOT4
J7
1
Jumper_3_Open
JP1
1
SW_Push
SW1
4
47µF
C1, C2, C3, C4

PLATINE BUS ORIC design files

The KiCad project lives in the Fred72z/ORIC repository on GitHub; these links point at the commit this page was built from.

PLATINE BUS ORIC: common questions

How big is the PLATINE BUS ORIC PCB?

The PLATINE BUS ORIC measures 76.2 × 94.6 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the PLATINE BUS ORIC?

13 components, from 10 distinct parts. The full bill of materials is listed on this page.

Where can I download the PLATINE BUS ORIC design files?

From the Fred72z/ORIC repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the PLATINE BUS ORIC design in my own project?

Yes, under the terms of its GPL-2.0 license, which Fred72z chose for the repository.
