INTERFACE 8 ENTREES/SORTIES LOGIQUES ORIC

Fred72z·ORIC·BUS_ORIC/Extensions/8ES_Numeriques/Kicad5/8ESN.kicad_pcb

INTERFACE 8 ENTREES/SORTIES LOGIQUES ORIC PCB layout, top view — open source board by Fred72z

About the INTERFACE 8 ENTREES/SORTIES LOGIQUES ORIC PCB

INTERFACE 8 ENTREES/SORTIES LOGIQUES ORIC is an open source PCB design by Fred72z, published on GitHub under the GPL-2.0 license. It is a 2-layer board measuring 76.2 × 49.5 mm, with 37 components from 28 distinct parts.

Other key parts include the GAL16V8, 74LS374, 74LS244 and ULN2803A. By type, the board carries 17 diodes, 11 resistors, 4 ICs, 3 connectors, 1 switch and 1 capacitor.

From the project

Extensions pour ORIC1-ATMOS

Cette platine se branche sur la platine d'extension de bus et permet d'ajouter 8 entrées et 8 sorties à collecteurs ouverts à l'ORIC. Elle reprend le principe des cartes mageco disponibles sur de nombreux micros de cette époque. Elle est équipée de 16 Leds qui sont allumées pour un état "0". Elle occupe un seul octet à l'adresse 3FA ou 3FB. Le choix de l'adresse se fait avec un petit commutateur DIP.

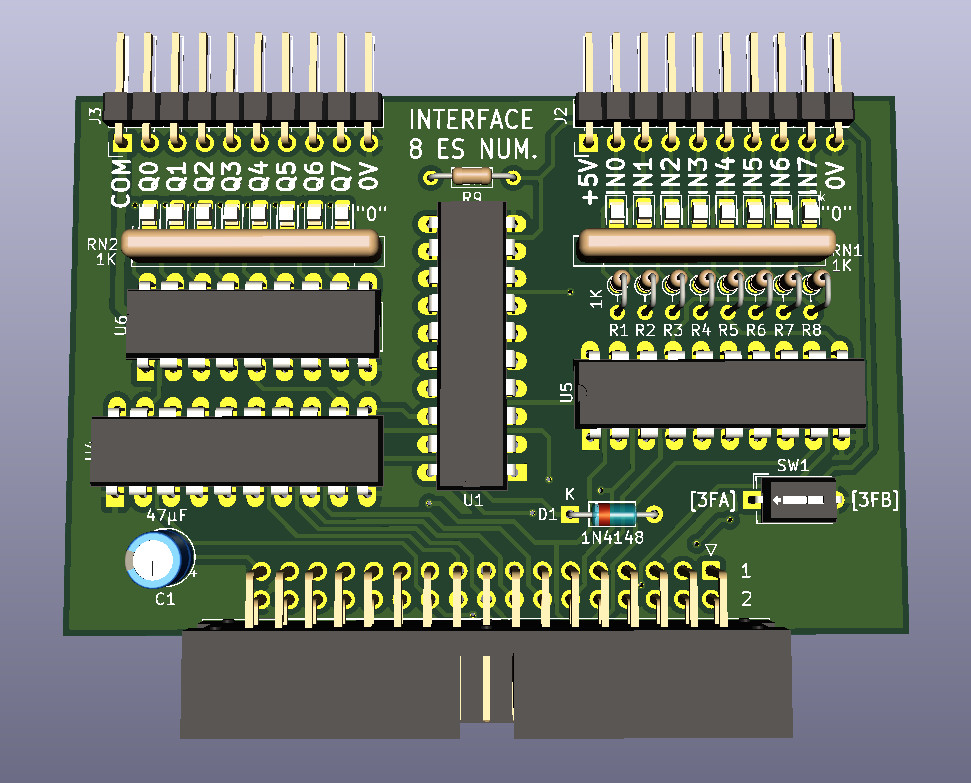

INTERFACE 8 ENTREES/SORTIES LOGIQUES ORIC, from the project README — From the project README

Main components on the INTERFACE 8 ENTREES/SORTIES LOGIQUES ORIC

GAL16V8 74LS374 74LS244 ULN2803A

INTERFACE 8 ENTREES/SORTIES LOGIQUES ORIC bill of materials (BOM)

37 components, 28 distinct parts.

Qty	Part	Footprint	Refs
1	GAL16V8	DIP-20_W7.62mm_LongPads	U1
1	74LS374	DIP-20_W7.62mm_LongPads	U4
1	74LS244	DIP-20_W7.62mm_LongPads	U5
1	ULN2803A	DIP-18_W7.62mm_LongPads	U6
1	SLOT1	IDC-Header_2x17_P2.54mm_Horizontal	J1
2	E/S	PinHeader_1x10_P2.54mm_Horizontal	J2, J3
1	3FA/3FB	SW_DIP_SPSTx01_Slide_6.7x4.1mm_W7.62mm_P2.54mm_LowProfile	SW1
1	1N4148	D_DO-35_SOD27_P7.62mm_Horizontal	D1
1	Q0	LED_0805_2012Metric	D2
1	Q1	LED_0805_2012Metric	D3
1	Q2	LED_0805_2012Metric	D4
1	Q3	LED_0805_2012Metric	D5
1	Q4	LED_0805_2012Metric	D6
1	Q5	LED_0805_2012Metric	D7
1	Q6	LED_0805_2012Metric	D8
1	Q7	LED_0805_2012Metric	D9
1	D0	LED_0805_2012Metric	D10
1	D1	LED_0805_2012Metric	D11
1	D2	LED_0805_2012Metric	D12
1	D3	LED_0805_2012Metric	D13

Show 8 more

Qty	Part	Footprint	Refs
1	D4	LED_0805_2012Metric	D14
1	D5	LED_0805_2012Metric	D15
1	D6	LED_0805_2012Metric	D16
1	D7	LED_0805_2012Metric	D17
1	47µF	CP_Radial_D5.0mm_P2.00mm	C1
8	1K	R_Axial_DIN0204_L3.6mm_D1.6mm_P2.54mm_Vertical	R1, R2, R3, R4, R5, R6, R7, R8
1	1K	R_Axial_DIN0204_L3.6mm_D1.6mm_P7.62mm_Horizontal	R9
2	1K	R_Array_SIP9	RN1, RN2

INTERFACE 8 ENTREES/SORTIES LOGIQUES ORIC design files

The KiCad project lives in the Fred72z/ORIC repository on GitHub; these links point at the commit this page was built from.

LayoutBUS_ORIC/Extensions/8ES_Numeriques/Kicad5/8ESN.kicad_pcb

INTERFACE 8 ENTREES/SORTIES LOGIQUES ORIC: common questions

How big is the INTERFACE 8 ENTREES/SORTIES LOGIQUES ORIC PCB?

The INTERFACE 8 ENTREES/SORTIES LOGIQUES ORIC measures 76.2 × 49.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the INTERFACE 8 ENTREES/SORTIES LOGIQUES ORIC?

37 components, from 28 distinct parts. The full bill of materials is listed on this page.

Where can I download the INTERFACE 8 ENTREES/SORTIES LOGIQUES ORIC design files?

From the Fred72z/ORIC repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the INTERFACE 8 ENTREES/SORTIES LOGIQUES ORIC design in my own project?

Yes, under the terms of its GPL-2.0 license, which Fred72z chose for the repository.
