Fred72z·ORIC·Telestrat_II/Keyboard/Kicad5/Keyboard.kicad_pcb

Keyboard PCB layout, top view — open source board by Fred72z

About the Keyboard PCB

Keyboard is an open source PCB design by Fred72z, published on GitHub under the GPL-2.0 license. It is a board measuring 272.2 × 107.8 mm, with 62 components from 61 distinct parts.

Other key parts include the 4051. By type, the board carries 60 switches, 1 IC and 1 connector.

It belongs with the keyboards designs in this gallery.

From the project

Extensions pour ORIC1-ATMOS

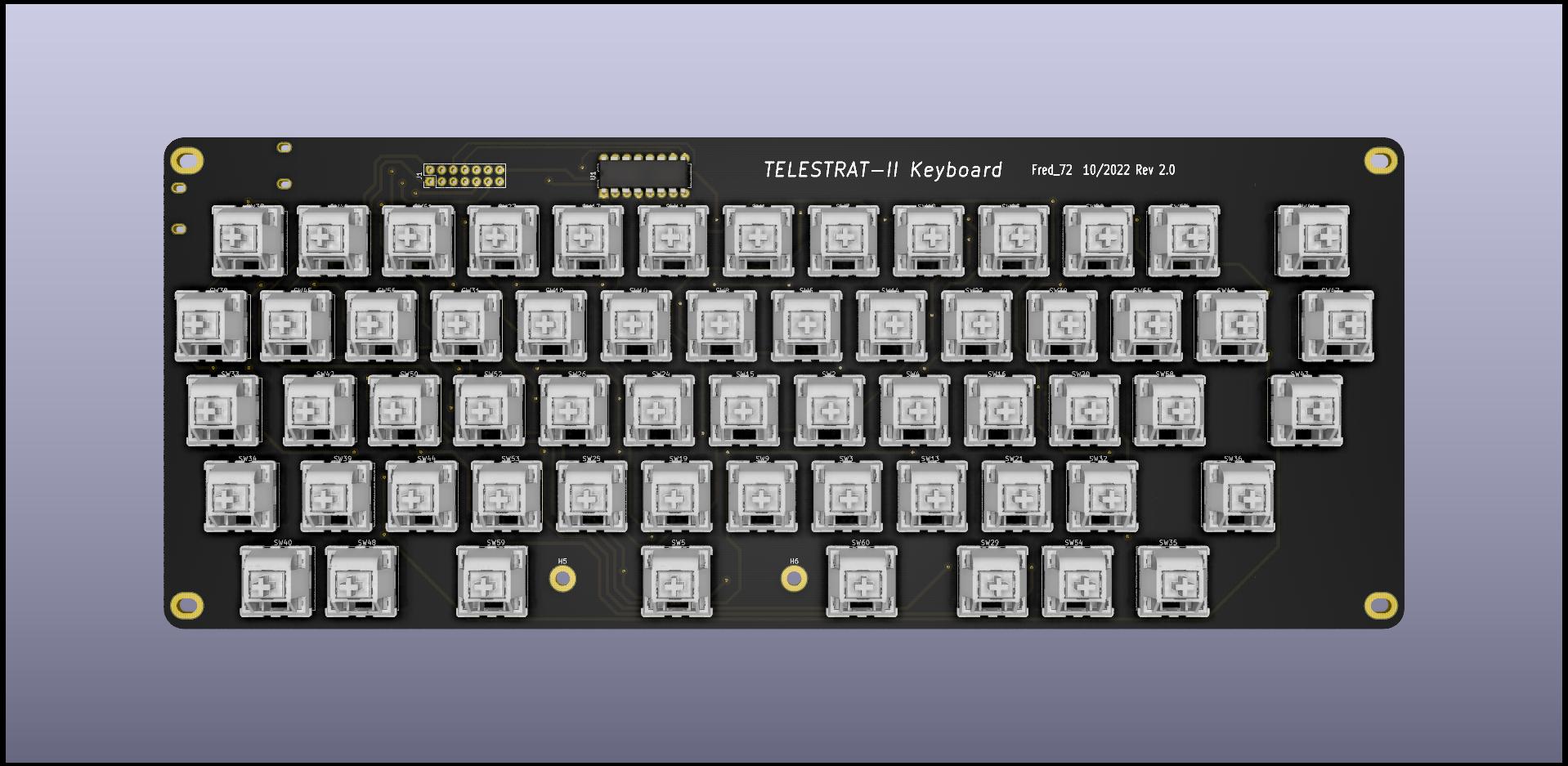

Les touches du clavier sont des CHERRY ou GATERON (rouge). La barre d'espace reçoit 2 touches (préférable) ou une seule touche (ajout d'une barre pour l'équilibrer). La vue 3D du PCB montre 3 touches pour la barre d'espace mais il ne faut en mettre qu'une ou deux.

Keyboard, from the project README
From the project README

Main components on the Keyboard

4051

Keyboard bill of materials (BOM)

62 components, 61 distinct parts.

QtyPartRefs
1
4051
U1
1
CLAVIER
J1
1
7
SW1
1
J
SW2
1
M
SW3
1
K
SW4
1
SPACE
SW5
1
U
SW6
1
8
SW7
1
Y
SW8
1
N
SW9
1
T
SW10
1
6
SW11
1
9
SW12
1
<
SW13
1
I
SW14
1
H
SW15
1
L
SW16
1
5
SW17
1
R
SW18
Show 41 more
QtyPartRefs
1
B
SW19
1
;
SW20
1
>
SW21
1
O
SW22
1
0
SW23
1
G
SW24
1
V
SW25
1
F
SW26
1
4
SW27
1
-
SW28
1
F_UP
SW29
1
P
SW30
1
E
SW31
1
/
SW32
1
CTRL
SW33
1
SHIFTG
SW34
1
FUNCT
SW35
1
SHIFTD
SW36
1
1
SW37
1
ESC
SW38
1
Z
SW39
1
F_LF
SW40
1
DEL
SW41
1
A
SW42
1
RETURN
SW43
1
X
SW44
1
Q
SW45
1
2
SW46
1
\
SW47
1
FL_DW
SW48
1
]
SW49
1
S
SW50
1
3
SW51
1
D
SW52
1
C
SW53
1
FL_RG
SW54
1
[
SW55
1
W
SW56
1
=
SW57
1
"
SW58
2
SPACE
SW59, SW60

Keyboard design files

The KiCad project lives in the Fred72z/ORIC repository on GitHub; these links point at the commit this page was built from.

Keyboard: common questions

How big is the Keyboard PCB?

The Keyboard measures 272.2 × 107.8 mm and is 1.6002 mm thick.

How many components are on the Keyboard?

62 components, from 61 distinct parts. The full bill of materials is listed on this page.

Where can I download the Keyboard design files?

From the Fred72z/ORIC repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Keyboard design in my own project?

Yes, under the terms of its GPL-2.0 license, which Fred72z chose for the repository.
