EREBUS

Fred72z·ORIC·BUS_ORIC/Extensions/Erebus/Kicad/EREBUS.kicad_pcb

EREBUS PCB layout, top view — open source board by Fred72z

About the EREBUS PCB

EREBUS is an open source PCB design by Fred72z, published on GitHub under the GPL-2.0 license. It is a 2-layer board measuring 76.2 × 49.5 mm, with 13 components from 9 distinct parts.

Other key parts include the EPM7032SLC, 27C512PLCC, AMS1117-3.3 and 74HC125. By type, the board carries 4 ICs, 4 resistors, 3 capacitors and 2 connectors.

From the project

Extensions pour ORIC1-ATMOS

Cette platine se branche sur la platine d'extension de bus et permet d'ajouter l'Erebus à l'ORIC. C'est la version pour Bus ORIC de l'interface conçue par kenneth pour lire des fichiers Tap directement depuis une carte SD.

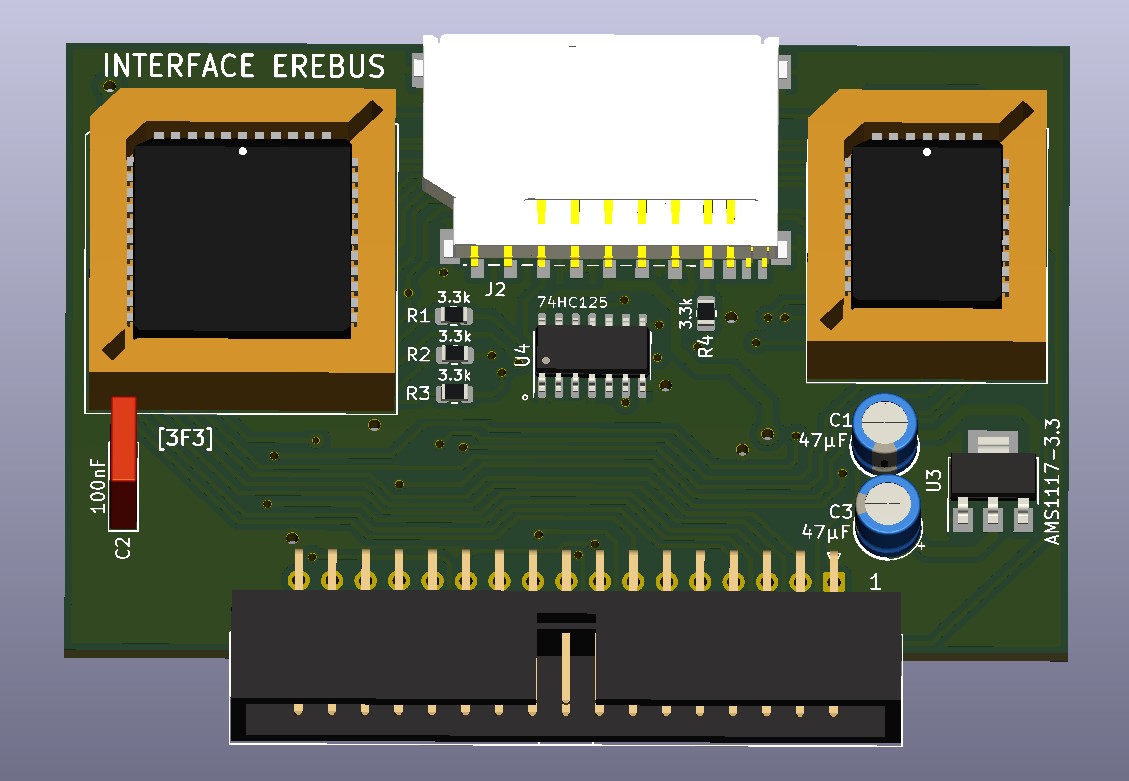

EREBUS, from the project README
From the project README

Main components on the EREBUS

EPM7032SLC27C512PLCCAMS1117-3.374HC125

EREBUS bill of materials (BOM)

13 components, 9 distinct parts.

QtyPartRefs
1
EPM7032SLC
U1
1
27C512PLCC
U2
1
AMS1117-3.3
U3
1
74HC125
U4
1
SLOT1
J1
1
SD_Card
J2
2
47µF
C1, C3
1
100nF
C2
4
3.3k
R1, R2, R3, R4

EREBUS design files

The KiCad project lives in the Fred72z/ORIC repository on GitHub; these links point at the commit this page was built from.

EREBUS: common questions

How big is the EREBUS PCB?

The EREBUS measures 76.2 × 49.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the EREBUS?

13 components, from 9 distinct parts. The full bill of materials is listed on this page.

Where can I download the EREBUS design files?

From the Fred72z/ORIC repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the EREBUS design in my own project?

Yes, under the terms of its GPL-2.0 license, which Fred72z chose for the repository.
