About the AddOnC PCB
AddOnC is an open source PCB design by freeDSP, published on GitHub under the CC-BY-SA-4.0 license. It is a 2-layer board measuring 380 × 45 mm, with 97 components from 52 distinct parts.
Other key parts include the 25AA1024T-I/SM. By type, the board carries 49 resistors, 22 crystals, 21 capacitors, 2 transformers, 1 IC and 1 inductor.
It belongs with the iot & wireless and audio designs in this gallery.
From the project

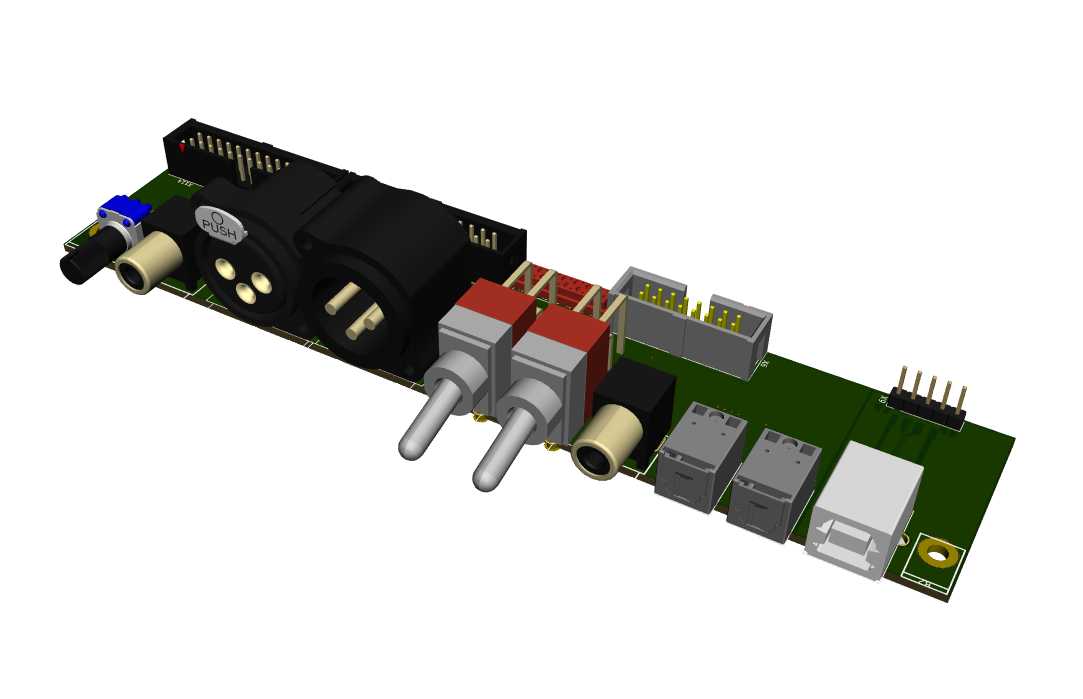

freeDSP ADAU1452 with 8 analog input, 8 analog outputs, S/P-DIF I/O, ADAT I/O, USB Audio Class2, WiFi, Bluetooth
- 1x XLR Analog in - 1x RCA Analog in - 1x TOSlink in (for S/P-DIF via glassfiber) - 1x RCA Digital in (for S/P-DIF via coaxial cable) - 1x RCA Digital out (connect a subwoofer) - 1x XLR Analog Out (connect a subwoofer) - 1x USB - Volume potentiometer
Schematics and backplates v1.0.0 Schematics and backplates
Pre-amp / 7.1-management without limits.
- 8x XLR Analog Out, unbalanced (RCA) is possible too - 8x RCA Analog In - 8x XLR Analog In - 4x RCA Digital In (for S/P-DIF via Cinch) - 4x TOSlink Digital In ((for S/P-DIF via LWL) - 1x USB in
Main components on the AddOnC
AddOnC bill of materials (BOM)
97 components, 52 distinct parts — part numbers from the project's BOM.
