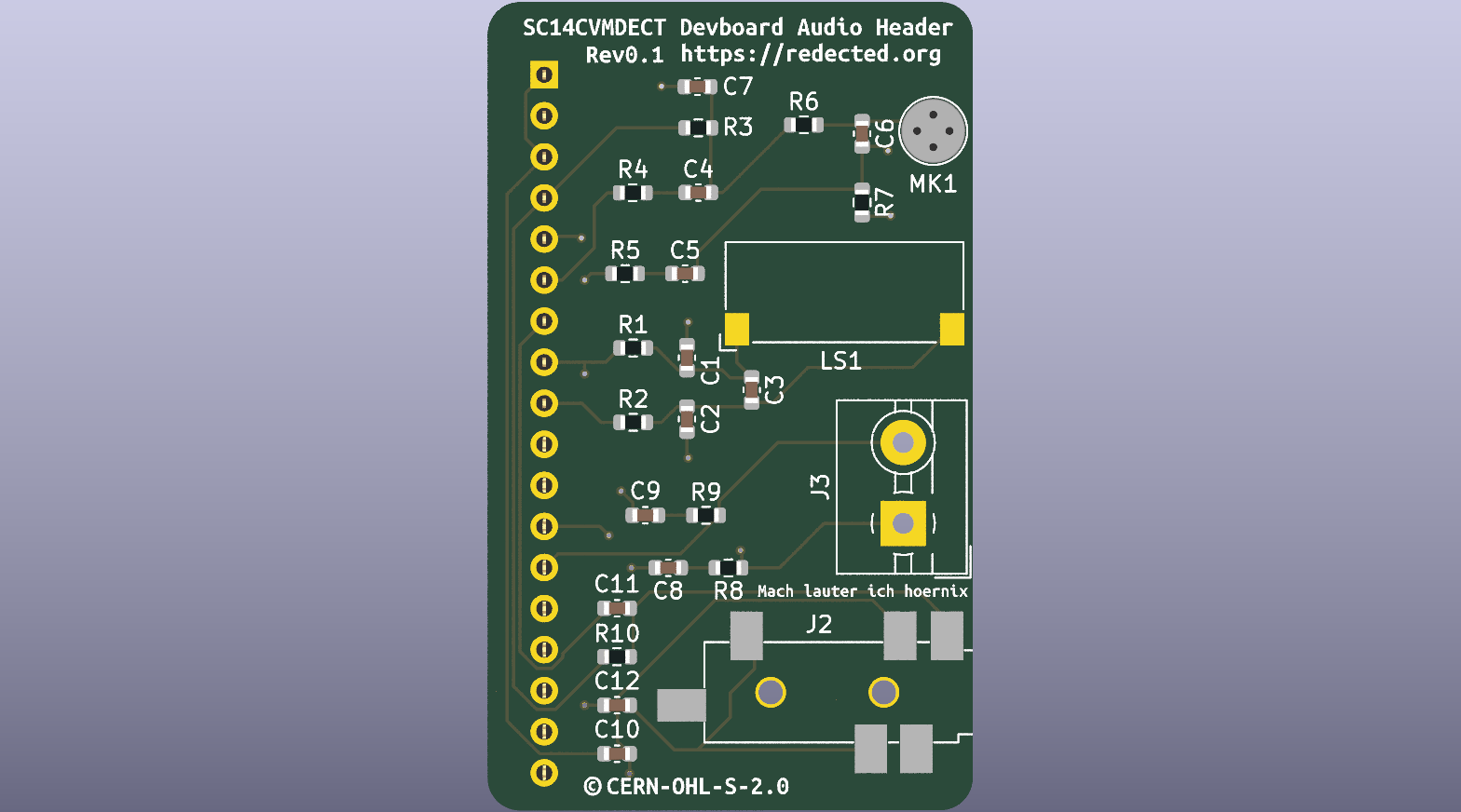

SC14CVMDECT Devboard Audio Header PCB layout, top view — open source board by funkeleinhorn

About the SC14CVMDECT Devboard Audio Header PCB

SC14CVMDECT Devboard Audio Header is an open source PCB design by funkeleinhorn, published on GitHub under the CERN-OHL-S-2.0 license. It is a 4-layer board measuring 30 × 50 mm, with 27 components from 13 distinct parts.

By type, the board carries 12 capacitors, 10 resistors, 3 connectors, 1 speaker and 1 microphone.

It belongs with the audio and dev boards & breakouts designs in this gallery.

From the project

SC14CVMDECT DEVBOARD

Header board providing audio circutry for the Open Hardware devboard for the SC14CVMDECT module from Renesas. Documentation of the devboard and the header boards can be found at redected.org.

This project is licensed as open hardware. See LICENSE.txt for details.

SC14CVMDECT Devboard Audio Header, from the project README
From the project README

SC14CVMDECT Devboard Audio Header bill of materials (BOM)

27 components, 13 distinct parts.

QtyPartRefs
1
Conn_01x18
J1
1
AudioJack4
J2
1
Screw_Terminal_01x02
J3
1
Speaker
LS1
1
Microphone
MK1
5
C
C1, C2, C3, C6, C7
3
0U1
C4, C5, C11
3
1N
C8, C9, C12
1
1U
C10
4
0R
R1, R2, R4, R5
3
1K
R3, R7, R10
1
10R
R6
2
1R
R8, R9

SC14CVMDECT Devboard Audio Header design files

The KiCad project lives in the funkeleinhorn/sc14cvmdect-devboard repository on GitHub; these links point at the commit this page was built from.

SC14CVMDECT Devboard Audio Header: common questions

How big is the SC14CVMDECT Devboard Audio Header PCB?

The SC14CVMDECT Devboard Audio Header measures 30 × 50 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the SC14CVMDECT Devboard Audio Header?

27 components, from 13 distinct parts. The full bill of materials is listed on this page.

Where can I download the SC14CVMDECT Devboard Audio Header design files?

From the funkeleinhorn/sc14cvmdect-devboard repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the SC14CVMDECT Devboard Audio Header design in my own project?

Yes, under the terms of its CERN-OHL-S-2.0 license, which funkeleinhorn chose for the repository.
