SD Tape Player

GadgetReboot·SD_Tape_Player·KiCad/SD_Tape_Player.kicad_pcb

SD Tape Player PCB layout, top view — open source AVR/Arduino board by GadgetReboot

About the SD Tape Player PCB

SD Tape Player is an open source AVR/Arduino PCB design by GadgetReboot, published on GitHub. It is a 2-layer board measuring 62.5 × 67 mm, with 31 components from 19 distinct parts.

Its main chip is the Arduino_Nano_Socket, from the AVR/Arduino family. Other key parts include the LM386 and 74LVC125. By type, the board carries 10 resistors, 7 capacitors, 5 connectors, 5 switches, 2 ICs and 1 module.

It belongs with the audio designs in this gallery.

From the project

Play computer cassette data audio files from a micro SD card with Arduino Nano

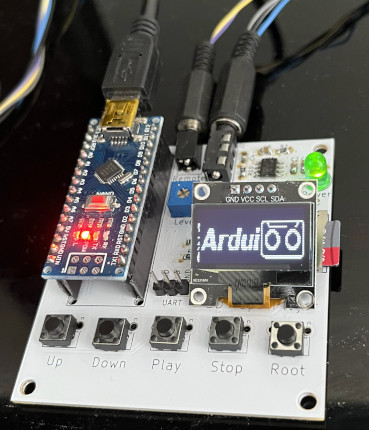

SD Tape Player, from the project README
From the project README

Main components on the SD Tape Player

LM38674LVC125

SD Tape Player bill of materials (BOM)

31 components, 19 distinct parts.

QtyPartRefs
1
LM386
U1
1
74LVC125
U2
1
Arduino_Nano_Socket
M2
1
UART
J1
1
AudioJack
J2
1
Conn_01x04
J3
1
2.5mm Jack
J4
1
Micro_SD TFP09-2-12B
J5
5
B3F-3100
SW1, SW2, SW3, SW4, SW5
1
LED_Small_ALT
D1
2
10uF
C1, C4
2
100nF
C2, C7
2
1uF
C3, C6
1
47nF
C5
1
10K
R1
1
10r
R2
5
3.3K
R3, R4, R5, R8, R9
2
10K
R6, R7
1
100r
R10

SD Tape Player design files

The KiCad project lives in the GadgetReboot/SD_Tape_Player repository on GitHub; these links point at the commit this page was built from.

SD Tape Player: common questions

What microcontroller does the SD Tape Player use?

The SD Tape Player is built around the Arduino_Nano_Socket, from the AVR/Arduino family.

How big is the SD Tape Player PCB?

The SD Tape Player measures 62.5 × 67 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the SD Tape Player?

31 components, from 19 distinct parts. The full bill of materials is listed on this page.

Where can I download the SD Tape Player design files?

From the GadgetReboot/SD_Tape_Player repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the SD Tape Player design in my own project?

The repository has no license, so all rights stay with GadgetReboot. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the SD Tape Player without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
