Me2188c slim PCB layout, top view — open source board by galopago

About the Me2188c slim PCB

Me2188c slim is an open source PCB design by galopago, published on GitHub. It is a 2-layer board measuring 15.7 × 15.7 mm, with 7 components from 6 distinct parts.

Other key parts include the ME2188. By type, the board carries 4 capacitors, 1 IC, 1 connector and 1 inductor.

It belongs with the power & battery designs in this gallery.

From the project

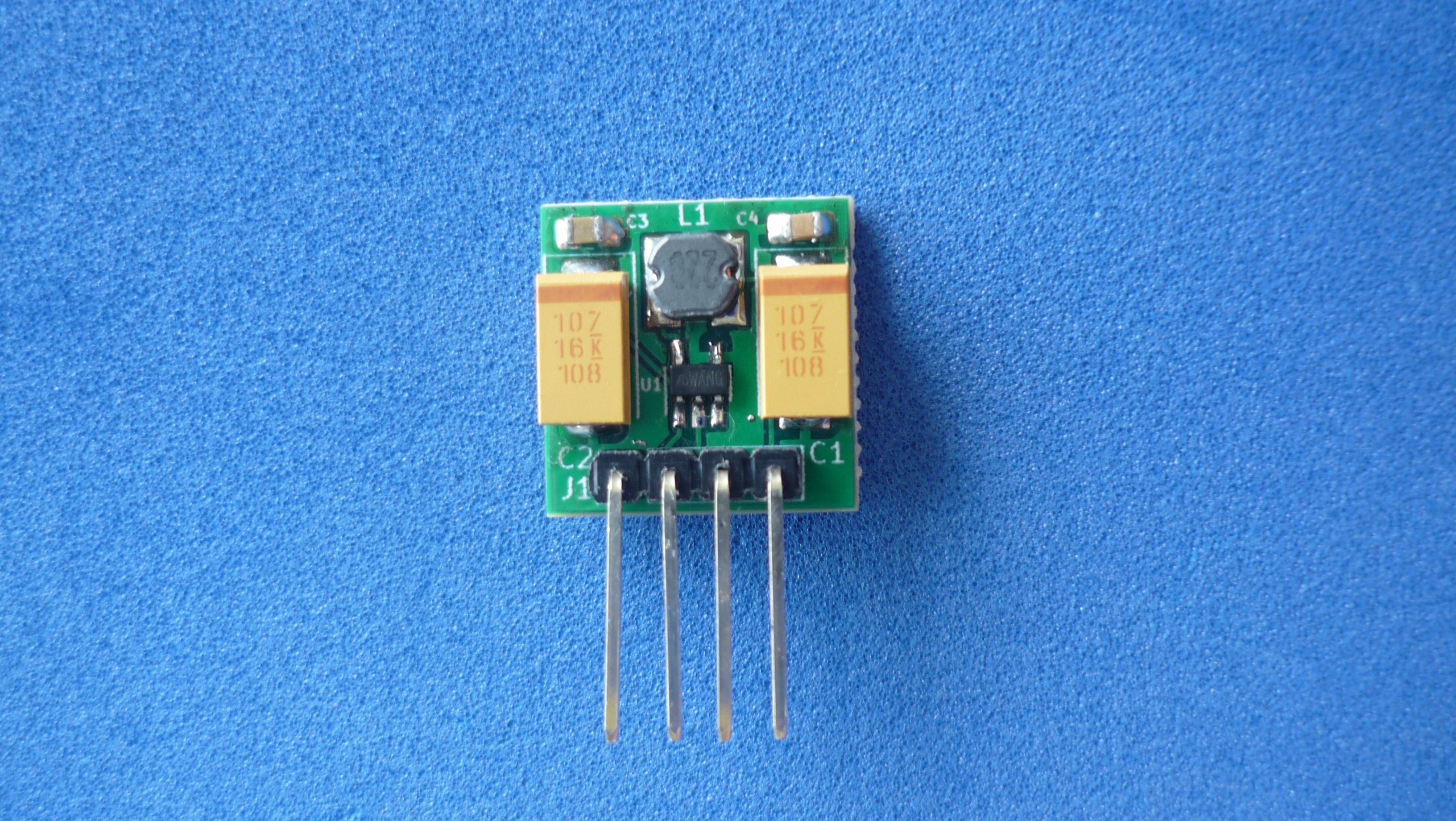

Small step-up module based on the ME2188 chip, designed specifically for low-power 3.3V embedded systems. It allows you to boost the voltage from a single 1.5V battery to 3.3V, enabling you to power your projects efficiently.

This is a small step-up module based on the chip, designed specifically for low-power 3.3V embedded systems. It allows you to boost the voltage from a single 1.5V battery to 3.3V, enabling you to power your projects efficiently.

- Compact size: 15.7mm x 15.7mm - Designed for low-power 3.3V embedded systems - All components on the front PCB layer - External pins spaced 2.54mm for easy integration - Input voltage: 1.5V (single battery)

Me2188c slim, from the project README
From the project README

Main components on the Me2188c slim

ME2188

Me2188c slim bill of materials (BOM)

7 components, 6 distinct parts.

QtyPartRefs
1
ME2188
U1
1
Conn_01x04_Male
J1
1
22uH
L1
1
10uF
C1
1
100uF
C2
2
100nF
C3, C4

Me2188c slim design files

The KiCad project lives in the galopago/me2188c-slim repository on GitHub; these links point at the commit this page was built from.

Me2188c slim: common questions

How big is the Me2188c slim PCB?

The Me2188c slim measures 15.7 × 15.7 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Me2188c slim?

7 components, from 6 distinct parts. The full bill of materials is listed on this page.

Where can I download the Me2188c slim design files?

From the galopago/me2188c-slim repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Me2188c slim design in my own project?

The repository has no license, so all rights stay with galopago. Use it as a reference, and ask the author before reusing the design.
