About the SimplyKeeb-60K PCB

SimplyKeeb-60K is an open source RP2040/RP2350 PCB design by geaz, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 291 × 153.2 mm, with 158 components from 20 distinct parts.

Its main chip is the C2040, from the RP2040/RP2350 family. Other key parts include the C82317, C26537 and C128392. By type, the board carries 62 switches, 60 diodes, 18 capacitors, 10 resistors, 4 ICs and 1 crystal.

It belongs with the keyboards designs in this gallery.

From the project

60 keys keyboard variants

This repository contains everything to build different variants of my 60 keys keyboard layout. The layout is designed with 10 finger typing, programmers & gamers in mind.

The following variants are available at the moment:

- simplyKeeb S60ph - A completely 3D printed hotswap split keyboard - simplyKeeb S60 - A pcb variant of the S60ph using a RP2040 and smd components

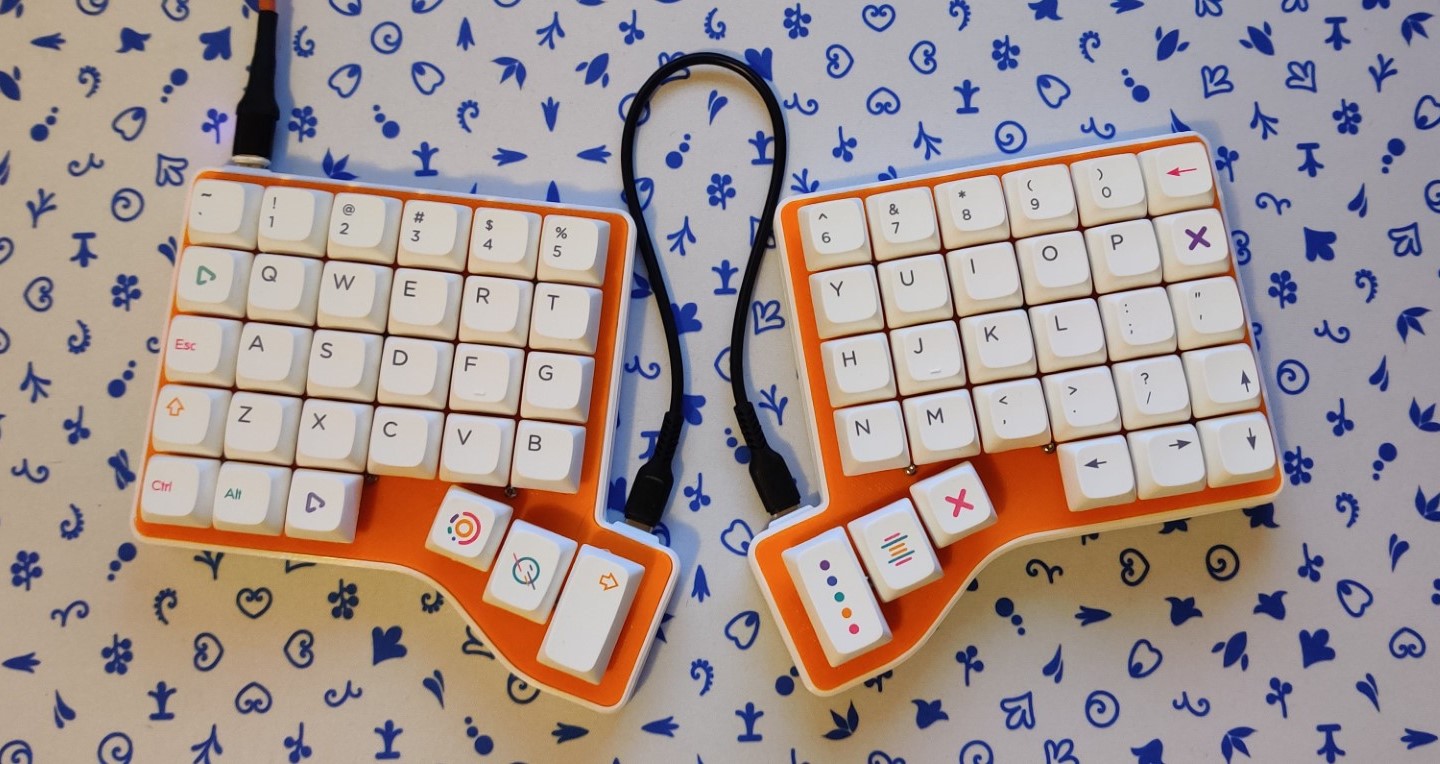

SimplyKeeb-60K, from the project README — From the project README

Main components on the SimplyKeeb-60K

C82317 C26537 C2040 C128392

SimplyKeeb-60K bill of materials (BOM)

158 components, 20 distinct parts — part numbers from the project's BOM.

Qty	Part	Footprint	Refs
1	C82317 ~ WINBOND	SOIC-8_L5.3-W5.3-P1.27-LS8.0-BL	U1
1	C26537 ~ ON	SOT-223-3_L6.5-W3.4-P2.30-LS7.0-BR	U2
1	C2040 ~ Raspberry Pi	RP2040	U3
1	C128392 PCA9555PW (IO Expander) NXP	TSSOP-24_L7.8-W4.4-P0.65-LS6.4-BL	U10
1	S4T12000ZYFAC JYJE(晶友嘉)	CRYSTAL-SMD_L7.4-W4.0-LS8.0	X1
2	~	SW-SMD_L6.0-W3.3-LS8.0	SW1, SW2
56	SW_Push	MXOnly-1U-Hotswap	SW3, SW4, SW5, SW6, SW7, SW8, SW9, SW10 +48
2	SW_Push	MXOnly-1.5U-Hotswap-Vertical	SW27, SW42
2	SW_Push	MXOnly-2U-Hotswap-Vertical	SW32, SW37
3	C2760486 USB Type C 韩国韩荣	USB-C-SMD_TYPE-C-31-M-31	USB1, USB2, USB3
60	1N4148W	D_SOD-123	D6, D7, D8, D9, D10, D16, D17, D18 +52
2	30PF 30pF	C_0402_1005Metric	C1, C2
3	10UF 10uF	C_0402_1005Metric	C3, C5, C16
11	100NF 100nF	C_0402_1005Metric	C4, C6, C7, C9, C11, C12, C13, C14 +3
2	1UF 1uF	C_0402_1005Metric	C8, C10
2	5.1K 5.1k	R_0402_1005Metric	R1, R4
2	1k	R_0402_1005Metric	R2, R5
2	10K 10k	R_0402_1005Metric	R3, R10
2	27R	R_0402_1005Metric	R6, R7
2	R4.7K R4.7k	R_0402_1005Metric	R8, R9

SimplyKeeb-60K design files

The KiCad project lives in the geaz/simplyKeeb-60K repository on GitHub; these links point at the commit this page was built from.

SimplyKeeb-60K: common questions

What microcontroller does the SimplyKeeb-60K use?

The SimplyKeeb-60K is built around the C2040, from the RP2040/RP2350 family.

How big is the SimplyKeeb-60K PCB?

The SimplyKeeb-60K measures 291 × 153.2 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the SimplyKeeb-60K?

158 components, from 20 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the SimplyKeeb-60K design files?

From the geaz/simplyKeeb-60K repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the SimplyKeeb-60K design in my own project?

Yes, under the terms of its GPL-3.0 license, which geaz chose for the repository.

Can I test firmware for the SimplyKeeb-60K without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
