ElaraGNSSMKRShield PCB layout, top view — open source AVR/Arduino board by generationmake

About the ElaraGNSSMKRShield PCB

ElaraGNSSMKRShield is an open source AVR/Arduino PCB design by generationmake, published on GitHub under the Custom license license. It is a 2-layer board measuring 61.5 × 25 mm, with 37 components from 17 distinct parts.

Its main chip is the ARDUINO_MKR, from the AVR/Arduino family. Other key parts include the TPS73618DBV, 2613011037000, PCA9306 and SN74LVC2G34. By type, the board carries 21 resistors, 5 capacitors, 4 ICs, 2 transistors, 2 connectors and 1 diode.

It belongs with the rf & radio and dev boards & breakouts designs in this gallery.

From the project

GNSS Shield with Wuerth Elara for Arduino MKR

By default the Elara GNSS is connected via I2C. It is possible to connect to serial.

* https://www.we-online.de/katalog/de/ELARA-I

This hardware is licensed under the CERN OHL v. 1.2

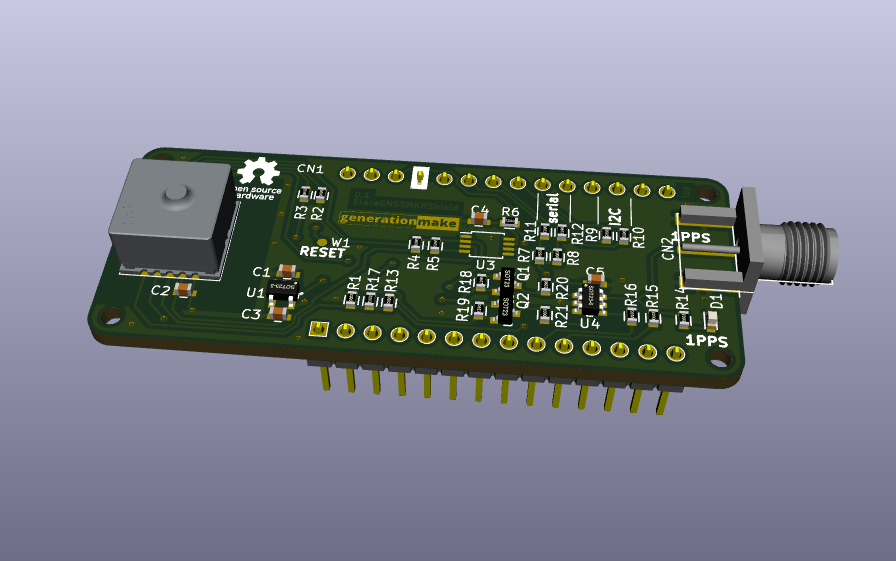

ElaraGNSSMKRShield, from the project README
From the project README

Main components on the ElaraGNSSMKRShield

TPS73618DBV2613011037000PCA9306SN74LVC2G34

ElaraGNSSMKRShield bill of materials (BOM)

37 components, 17 distinct parts.

QtyPartRefs
1
TPS73618DBV
U1
1
2613011037000
U2
1
PCA9306
U3
1
SN74LVC2G34
U4
2
BSS138
Q1, Q2
1
ARDUINO_MKR
CN1
1
60312202114509
CN2
1
TEST_1P
W1
1
150060GS75000
D1
1
Label
L1
4
885012206095
C1, C2, C3, C5
1
885012206077
C4
7
10k
R1, R2, R13, R18, R19, R20, R21
4
DNI
R3, R4, R5, R17
1
200k
R6
3
1k
R7, R8, R14
6
0R
R9, R10, R11, R12, R15, R16

ElaraGNSSMKRShield design files

The KiCad project lives in the generationmake/ElaraGNSSMKRShield repository on GitHub; these links point at the commit this page was built from.

ElaraGNSSMKRShield: common questions

What microcontroller does the ElaraGNSSMKRShield use?

The ElaraGNSSMKRShield is built around the ARDUINO_MKR, from the AVR/Arduino family.

How big is the ElaraGNSSMKRShield PCB?

The ElaraGNSSMKRShield measures 61.5 × 25 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the ElaraGNSSMKRShield?

37 components, from 17 distinct parts. The full bill of materials is listed on this page.

Where can I download the ElaraGNSSMKRShield design files?

From the generationmake/ElaraGNSSMKRShield repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the ElaraGNSSMKRShield design in my own project?

It is published under Custom license, which limits how it may be reused; read the license before building on it.

Can I test firmware for the ElaraGNSSMKRShield without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
