PicoMKRAdapter

generationmake·PicoMKRAdapter·kicad_source/PicoMKRAdapter.kicad_pcb

PicoMKRAdapter PCB layout, top view — open source RP2040/RP2350 board by generationmake

About the PicoMKRAdapter PCB

PicoMKRAdapter is an open source RP2040/RP2350 PCB design by generationmake, published on GitHub under the Custom license license. It is a 2-layer board measuring 51 × 28 mm, with 5 components from 3 distinct parts.

Its main chip is the RASPBERRYPI_PICO, from the RP2040/RP2350 family.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

adapter board to connect a Raspberry Pi Pico to an Arduino MKR Shield and vice versa

This hardware is licensed under the CERN OHL v. 1.2

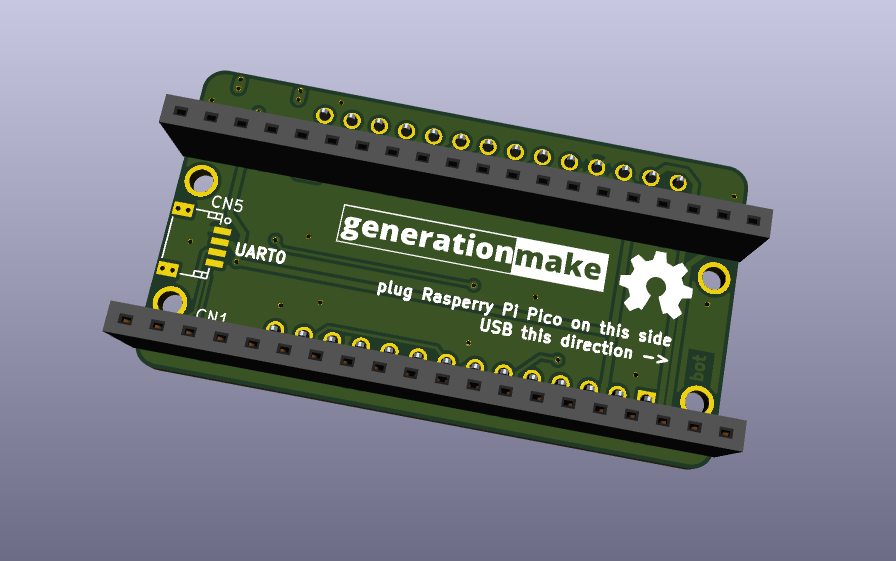

PicoMKRAdapter, from the project README
From the project README

PicoMKRAdapter bill of materials (BOM)

5 components, 3 distinct parts.

QtyPartRefs
1
RASPBERRYPI_PICO
CN1
1
ARDUINO_MKR
CN2
3
SM04B-SRSS-TB
CN3, CN4, CN5

PicoMKRAdapter design files

The KiCad project lives in the generationmake/PicoMKRAdapter repository on GitHub; these links point at the commit this page was built from.

PicoMKRAdapter: common questions

What microcontroller does the PicoMKRAdapter use?

The PicoMKRAdapter is built around the RASPBERRYPI_PICO, from the RP2040/RP2350 family.

How big is the PicoMKRAdapter PCB?

The PicoMKRAdapter measures 51 × 28 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the PicoMKRAdapter?

5 components, from 3 distinct parts. The full bill of materials is listed on this page.

Where can I download the PicoMKRAdapter design files?

From the generationmake/PicoMKRAdapter repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the PicoMKRAdapter design in my own project?

It is published under Custom license, which limits how it may be reused; read the license before building on it.

Can I test firmware for the PicoMKRAdapter without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
