Wifi iot core hw PCB layout, top view — open source STM32 board by genuine-engineering
Simulate this board

About the Wifi iot core hw PCB

Wifi iot core hw is an open source STM32 PCB design by genuine-engineering, published on GitHub. It is a 2-layer board measuring 31.8 × 58.4 mm, with 45 components from 22 distinct parts.

Its main chip is the STM32F103C8Tx, from the STM32 family. Other key parts include the ESP-07v2 and LP2985LV. By type, the board carries 21 capacitors, 13 resistors, 4 connectors, 3 ICs, 2 crystals and 2 diodes.

It belongs with the iot & wireless designs in this gallery.

From the project

IoT Core hardware combined STM32 + ESP8266

Wifi IoT Core project is to combine STM32 + ESP8266.

- ESP8266 is an amazing but cheap wifi chip. However it has many limitions, such as: no USB, limited analog interface, few I/O etc, while applications which are developed on it often need USB-Serial communication. Therefore many ESP8266-based modules in the world are added USB-TTL chip. While this brings some value to developing work, the value is just little in practical use. The design in this Wifi IoT Core project uses the cheap STM32, with USB interface, to ease development, and complements many other features which are missing in…

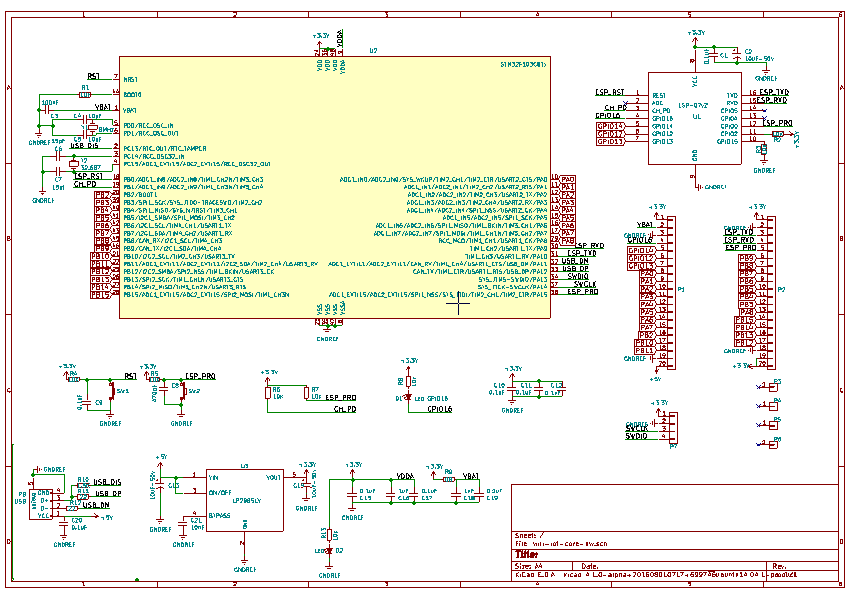

Wifi iot core hw, from the project README
From the project README

Main components on the Wifi iot core hw

ESP-07v2STM32F103C8TxLP2985LV

Wifi iot core hw bill of materials (BOM)

45 components, 22 distinct parts.

QtyPartRefs
1
ESP-07v2
U1
1
STM32F103C8Tx
U2
1
LP2985LV
U3
1
8MHz
Y1
1
32.687
Y2
2
CONN_01X20
P1, P2
1
CONN_01X04
P7
1
USB
P8
1
Led GPIO16
D1
1
Led
D2
9
0.1uF
C1, C9, C10, C11, C12, C15, C17, C19 +1
3
10uF-50v
C2, C13, C14
1
100nF
C3
2
10pF
C4, C5
2
15pF
C6, C7
1
470pF
C8
2
1uF
C16, C18
1
10nF
C21
9
10K
R1, R2, R3, R4, R5, R6, R7, R8 +1
1
0R
R9
Show 2 more
QtyPartRefs
1
1.5K
R10
2
22
R11, R12

Wifi iot core hw design files

The KiCad project lives in the genuine-engineering/wifi-iot-core-hw repository on GitHub; these links point at the commit this page was built from.

Wifi iot core hw: common questions

What microcontroller does the Wifi iot core hw use?

The Wifi iot core hw is built around the STM32F103C8Tx, from the STM32 family.

How big is the Wifi iot core hw PCB?

The Wifi iot core hw measures 31.8 × 58.4 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Wifi iot core hw?

45 components, from 22 distinct parts. The full bill of materials is listed on this page.

Where can I download the Wifi iot core hw design files?

From the genuine-engineering/wifi-iot-core-hw repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Wifi iot core hw design in my own project?

The repository has no license, so all rights stay with genuine-engineering. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Wifi iot core hw without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
