About the Gate-Access-Control PCB

Gate-Access-Control is an open source AVR/Arduino PCB design by George-P-1, published on GitHub. It is a 2-layer board measuring 85.4 × 38 mm, with 20 components from 17 distinct parts.

Its main chip is the ATMEGA328-MM, from the AVR/Arduino family. By type, the board carries 8 connectors, 4 resistors, 3 capacitors, 1 IC, 1 crystal and 1 fuse.

It belongs with the sensors designs in this gallery.

From the project

KiCAD Designing (Schematic and PCB)

A custom-designed PCB for a smart gate access control system, created using KiCad. It features both programming and power management components intended as part of a smart automation system for gates. This project was done as part of a university group assignment.

The system allows access via RF remote, switch or RFID tag and includes safety mechanisms like human detection inputs (photo sensors) that prevent gate operation. The board is designed to be AC-powered, with an onboard AC-DC converter and expansion-ready via various screw terminals and headers.

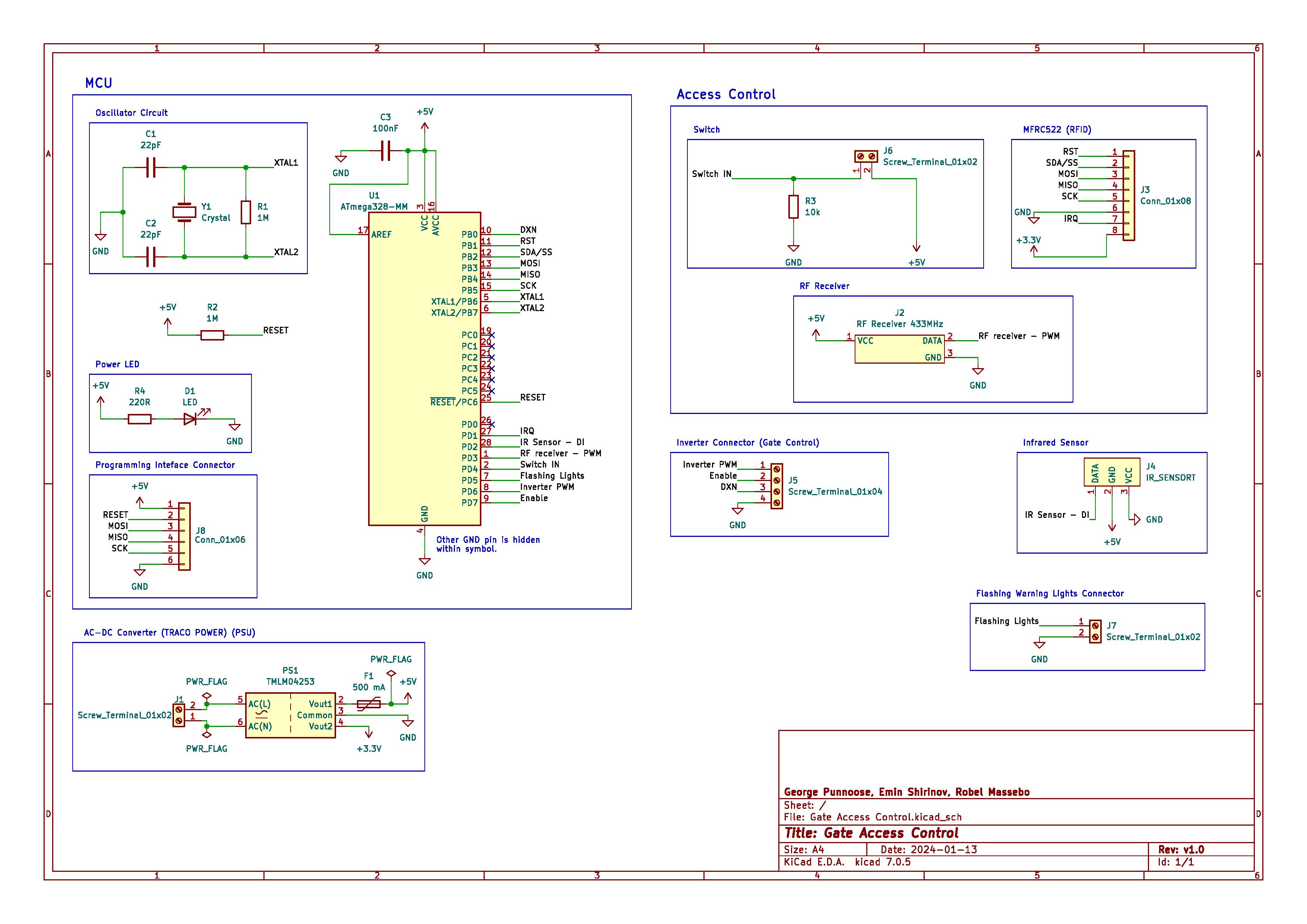

Gate-Access-Control, from the project README
From the project README

Main components on the Gate-Access-Control

ATMEGA328-MM

Gate-Access-Control bill of materials (BOM)

20 components, 17 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ATMEGA328-MM
ATmega328-MM
Mouser.pl
U1
1
Crystal
Mouser.pl
Y1
1
SCREW_TERMINAL_01X02
Screw_Terminal_01x02
Mouser.pl
J1
1
RF_RECEIVER_433
RF Receiver 433MHz
Mouser.pl
J2
1
CONN_01X08
Conn_01x08
Mouser.pl
J3
1
IR_SENSORT
Mouser.pl
J4
1
SCREW_TERMINAL_01X04
Screw_Terminal_01x04
Mouser.pl
J5
2
SCREW_TERMINAL_01X02
Screw_Terminal_01x02
Mouser.pl
J6, J7
1
CONN_01X06
Conn_01x06
Mouser.pl
J8
1
500 mA
Mouser.pl
F1
1
TMLM04253
Mouser.pl
PS1
1
LED
Mouser.pl
D1
2
22PF
22pF
Mouser.pl
C1, C2
1
100NF
100nF
Mouser.pl
C3
2
1M
Mouser.pl
R1, R2
1
10K
10k
Mouser.pl
R3
1
220R
Mouser.pl
R4

Gate-Access-Control design files

The KiCad project lives in the George-P-1/Gate-Access-Control-PCB repository on GitHub; these links point at the commit this page was built from.

Gate-Access-Control: common questions

What microcontroller does the Gate-Access-Control use?

The Gate-Access-Control is built around the ATMEGA328-MM, from the AVR/Arduino family.

How big is the Gate-Access-Control PCB?

The Gate-Access-Control measures 85.4 × 38 mm, has 2 copper layers and is 1.59 mm thick.

How many components are on the Gate-Access-Control?

20 components, from 17 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Gate-Access-Control design files?

From the George-P-1/Gate-Access-Control-PCB repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Gate-Access-Control design in my own project?

The repository has no license, so all rights stay with George-P-1. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Gate-Access-Control without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
