4IDEAdapter PCB layout, top view — open source board by gianlucarenzi

About the 4IDEAdapter PCB

4IDEAdapter is an open source PCB design by gianlucarenzi, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 76 × 100 mm, with 14 components from 7 distinct parts.

Other key parts include the 74LVC2G08. By type, the board carries 3 LEDs, 3 diodes, 3 resistors and 1 IC.

It belongs with the retro computing designs in this gallery.

From the project

4 ATA/ATAPI IDE Interface for Commodore Amiga 1200 and Amiga 600 computers

This project follow the same DIY project in Aminet (search 4IDE in docs/hw) or simply check out here:

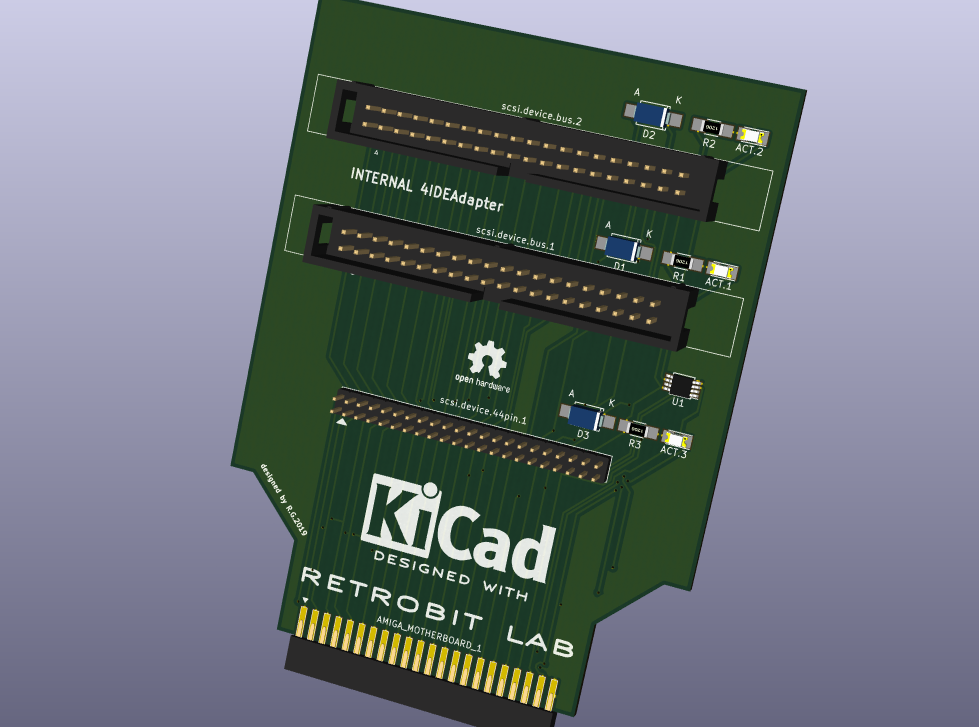

4IDEAdapter, from the project README
From the project README

Main components on the 4IDEAdapter

74LVC2G08

4IDEAdapter bill of materials (BOM)

14 components, 7 distinct parts.

QtyPartRefs
1
74LVC2G08
U1
1
CONN_02X22
AMIGA_MOTHERBOARD_1
1
conn_CONN_02X22
scsi.device.44pin.1
2
CONN_02X20
scsi.device.bus.1, scsi.device.bus.2
3
LED
ACT.1, ACT.2, ACT.3
3
1N4148
D1, D2, D3
3
330
R1, R2, R3

4IDEAdapter design files

The KiCad project lives in the gianlucarenzi/4IDEAdapter repository on GitHub; these links point at the commit this page was built from.

4IDEAdapter: common questions

How big is the 4IDEAdapter PCB?

The 4IDEAdapter measures 76 × 100 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the 4IDEAdapter?

14 components, from 7 distinct parts. The full bill of materials is listed on this page.

Where can I download the 4IDEAdapter design files?

From the gianlucarenzi/4IDEAdapter repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the 4IDEAdapter design in my own project?

Yes, under the terms of its GPL-3.0 license, which gianlucarenzi chose for the repository.
