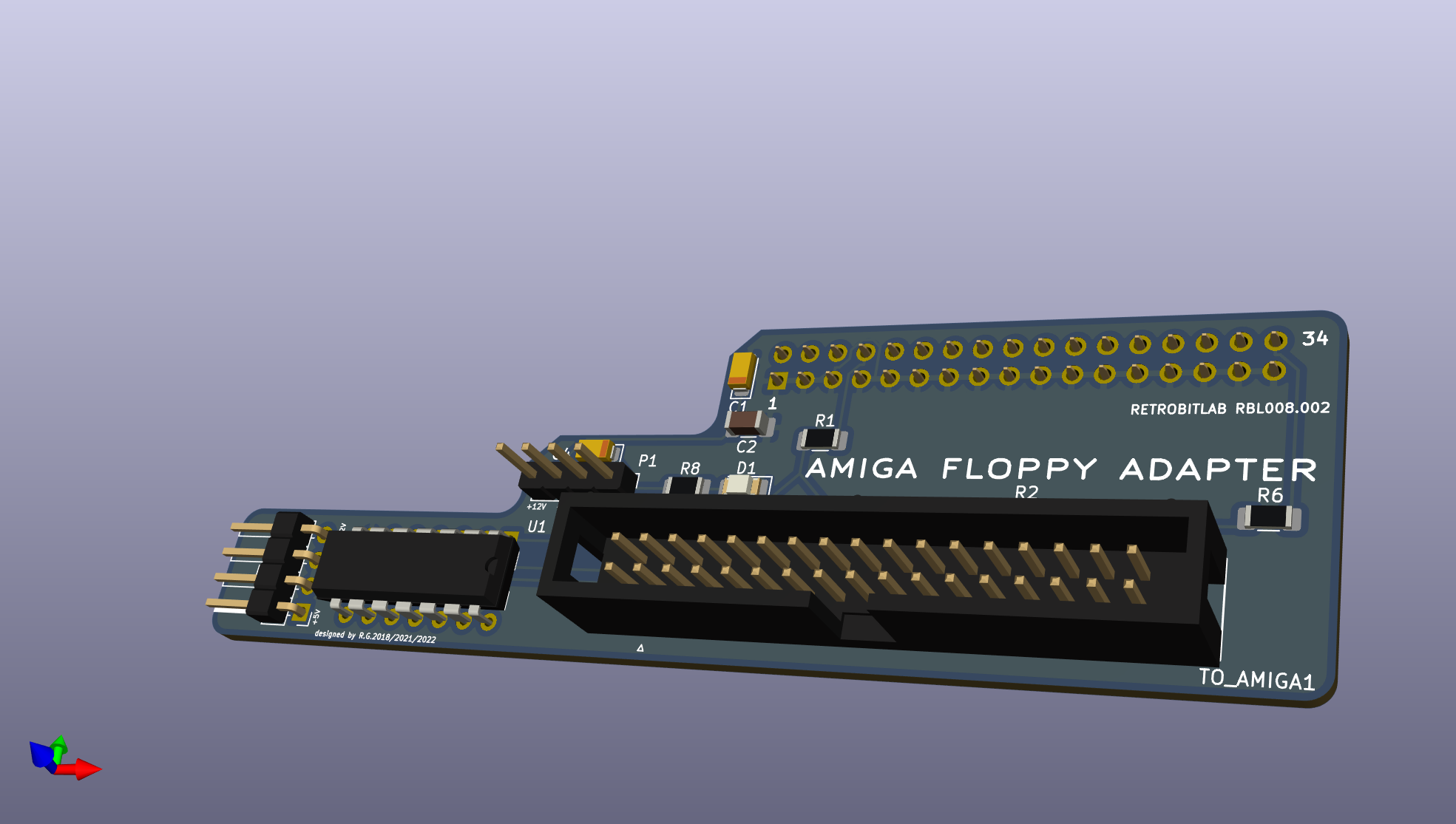

About the AmigaPCDriveAdapter PCB
AmigaPCDriveAdapter is an open source PCB design by gianlucarenzi, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 99.1 × 30.5 mm, with 18 components from 11 distinct parts.
Other key parts include the 74LS38. By type, the board carries 8 resistors, 4 capacitors, 2 connectors, 1 IC and 1 diode.
It belongs with the retro computing designs in this gallery.
From the project
A simple interface for standard PC Floppy Disk Drive and Amiga Computers
Created by Gianluca Renzi (C) 2018 E-Mail: - -
- V0.1 Initial Revision 2018 Made with Kicad 4.x - V1.0 First (BAD) PCB revision from transition from Kicad 4.x to Kicad 5.x - V2.0 PCB Revision entirely made on Kicad 5. No library from Kicad 4 anymore.
- V0.1 Initial release (2018) - V1.0 From Kicad 4 to Kicad 5 (2019). I found a bug in PCB version automatically generated by Kicad 5 from Kicad 4: All the hand soldering pads are way too large and they are overlapping each other short-circuiting every signal with a large series of resistors. Thanks to: Stefan Gammelgaard(BM) to point me out on…

Main components on the AmigaPCDriveAdapter
AmigaPCDriveAdapter bill of materials (BOM)
18 components, 11 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 74LS38 | DIP-14_W7.62mm | U1 |
| 1 | CONN_01X04 | PinHeader_1x04_P2.54mm_Vertical | P1 |
| 1 | CONN_01X04 | PinHeader_1x04_P2.54mm_Horizontal | P2 |
| 1 | CONN_02X17 | IDC-Header_2x17_P2.54mm_Vertical_Lock | TO_AMIGA1 |
| 1 | CONN_02X17 | PinSocket_2x17_P2.54mm_Vertical | TO_FLOPPY1 |
| 1 | Led_Small | LED_1206_3216Metric_Pad1.42x1.75mm_HandSolder | D1 |
| 2 | 10UF 10uF | CP_EIA-3216-12_Kemet-S | C1, C4 |
| 2 | 100NF 100nF | C_1206_3216Metric_Pad1.33x1.80mm_HandSolder | C2, C3 |
| 6 | 2.2K | R_1206_3216Metric_Pad1.30x1.75mm_HandSolder | R1, R2, R3, R4, R5, R7 |
| 1 | 2,2K | R_1206_3216Metric_Pad1.30x1.75mm_HandSolder | R6 |
| 1 | 330 | R_1206_3216Metric_Pad1.30x1.75mm_HandSolder | R8 |
AmigaPCDriveAdapter design files
The KiCad project lives in the gianlucarenzi/AmigaPCDriveAdapter repository on GitHub; these links point at the commit this page was built from.
AmigaPCDriveAdapter: common questions
How big is the AmigaPCDriveAdapter PCB?
The AmigaPCDriveAdapter measures 99.1 × 30.5 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the AmigaPCDriveAdapter?
18 components, from 11 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the AmigaPCDriveAdapter design files?
From the gianlucarenzi/AmigaPCDriveAdapter repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the AmigaPCDriveAdapter design in my own project?
Yes, under the terms of its GPL-3.0 license, which gianlucarenzi chose for the repository.
