RTB C11 PCB layout, top view — open source AVR/Arduino board by git4dcc

About the RTB C11 PCB

RTB C11 is an open source AVR/Arduino PCB design by git4dcc, published on GitHub under the Apache-2.0 license. It is a 2-layer board measuring 160.3 × 71.7 mm, with 112 components from 42 distinct parts.

Its main chip is the AVR64DA48, from the AVR/Arduino family. Other key parts include the TPSM365R15RDNR, THVD1450DRBR, MAX17613AATP+, 74AHC1G02 and INA181A1. By type, the board carries 68 resistors, 27 capacitors, 13 ICs, 3 diodes and 1 crystal.

From the project

Power distribution and monitoring

Smart Power Protection: This homebrew powerboard actively monitors input voltage to safeguard connected RTB modules. It automatically interrupts power to the RTB subsystem if the voltage drifts outside the safe range of 12V to 18V, preventing damage from erroneous power conditions.

- RTBC10 - Master - RTBC12 - Micro Booster - RTBC13 - Track Sensor - RTBP15 - Base

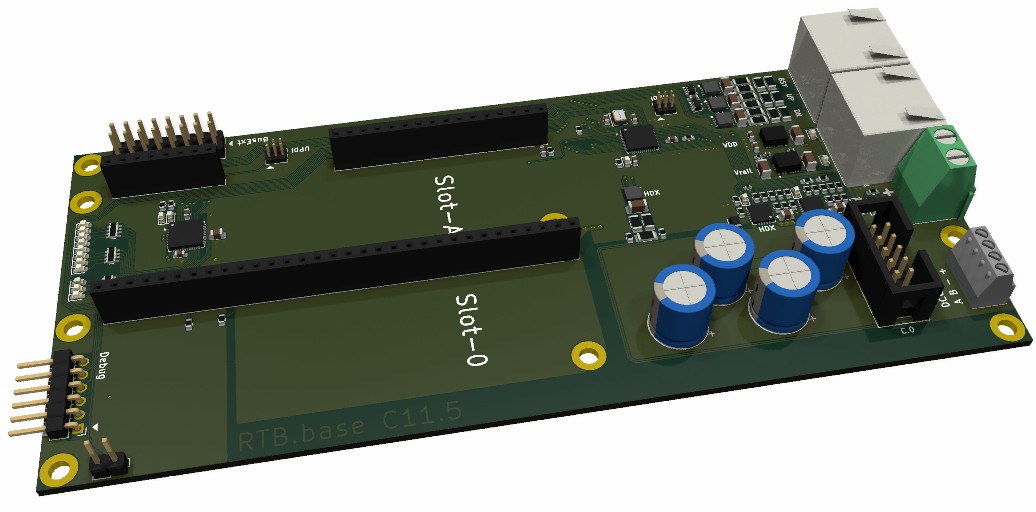

RTB C11, from the project README
From the project README

Main components on the RTB C11

TPSM365R15RDNRTHVD1450DRBRMAX17613AATP+AVR64DA4874AHC1G02INA181A1ATMEGA4809-A

RTB C11 bill of materials (BOM)

112 components, 42 distinct parts — part numbers from the project's BOM.

QtyPartRefs
2
TPSM365R15RDNR
IC1, IC7
4
THVD1450DRBR
IC2, IC3, IC4, IC5
2
MAX17613AATP+
IC6, IC8
1
AVR64DA48
U1
2
74AHC1G02
U3, U4
1
INA181A1
U7
1
ATMEGA4809-A
ATmega4809-A
U9
1
ASE-24MHZ
ASE-24MHz
X1
3
SSA34
D1, D5, D9
6
2.2U/50V
2.2u/50V
C2, C7, C8, C9, C10, C27
9
100N
100n
C3, C5, C6, C13, C21, C22, C24, C25 +1
2
1u
C4, C32
2
10U
10u
C11, C26
2
10U/25V
10u/25V
C12, C31
2
1U/50V
1u/50V
C14, C16
1
2.2U
2.2u
C19
1
100N
100n
C20
1
2.2U
2.2u
C23
1
100n
C33
1
100K
100k
R1
Show 22 more
QtyPartRefs
1
9.1K
9.1k
R2
1
10k
R3
5
10K
10k
R4, R9, R82, R88, R90
2
1k
R7, R8
1
150
R11
4
220K
220k
R12, R14, R18, R19
4
9.1K
9.1k
R13, R20, R27, R28
6
470K
470k
R21, R23, R36, R38, R43, R45
2
42.2K
42.2k
R22, R37
2
82K
82k
R24, R39
2
150K
150k
R25, R40
2
2.2K
2.2k
R26, R41
9
3.3K
3.3k
R29, R46, R47, R49, R50, R72, R80, R81 +1
1
0.05
R42
3
4.7K
4.7k
R51, R52, R53
6
390
R56, R57, R60, R61, R62, R63
8
22
R58, R59, R64, R65, R66, R67, R76, R77
1
33K
33k
R71
2
22K
22k
R83, R89
2
100
R84, R85
1
10K
10k
R87
2
4.7K
4.7k
RN1, RN2

RTB C11 design files

The KiCad project lives in the git4dcc/RTB_C11 repository on GitHub; these links point at the commit this page was built from.

RTB C11: common questions

What microcontroller does the RTB C11 use?

The RTB C11 is built around the AVR64DA48, from the AVR/Arduino family.

How big is the RTB C11 PCB?

The RTB C11 measures 160.3 × 71.7 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the RTB C11?

112 components, from 42 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the RTB C11 design files?

From the git4dcc/RTB_C11 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the RTB C11 design in my own project?

Yes, under the terms of its Apache-2.0 license, which git4dcc chose for the repository.

Can I test firmware for the RTB C11 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
