Bing bong pcb audio

GlobalSequence·bing-bong·hardware/bing-bong-pcb-audio/bing-bong-pcb-audio.kicad_pcb

Bing bong pcb audio layout, top view — open source Renesas board by GlobalSequence

About the Bing bong pcb audio

Bing bong pcb audio is an open source Renesas PCB design by GlobalSequence, published on GitHub. It is a 2-layer board measuring 40.3 × 108 mm, with 55 components from 21 distinct parts.

Its main chip is the SeeeduinoXIAO RA4M1, from the Renesas family. Other key parts include the L7805, TL071, TL074 and MCP6004. By type, the board carries 30 resistors, 11 capacitors, 5 ICs, 5 diodes, 3 connectors and 1 transistor.

It belongs with the audio designs in this gallery.

From the project

Bing Bong - Digital phase modulation/physical modeling drum module for Eurorack synthesizers

[](https://github.com/GlobalSequence/bing-bong/blob/master/photo.png)

Bing Bong is a digital drum synthesizer module for Eurorack synthesizers which generates percussive sounds using two different synthesis methods:

- Phase modulation synthesis - Physical modeling synthesis

This module is intended to offer a versatile array of sounds ranging anywhere from organic substrates to purely synthesized tones. With a wide frequency range, it can fill many roles in an electronic drum kit. Both atonal and tonal sounds can be produced, ranging anywhere from quick transient bursts to long sustained…

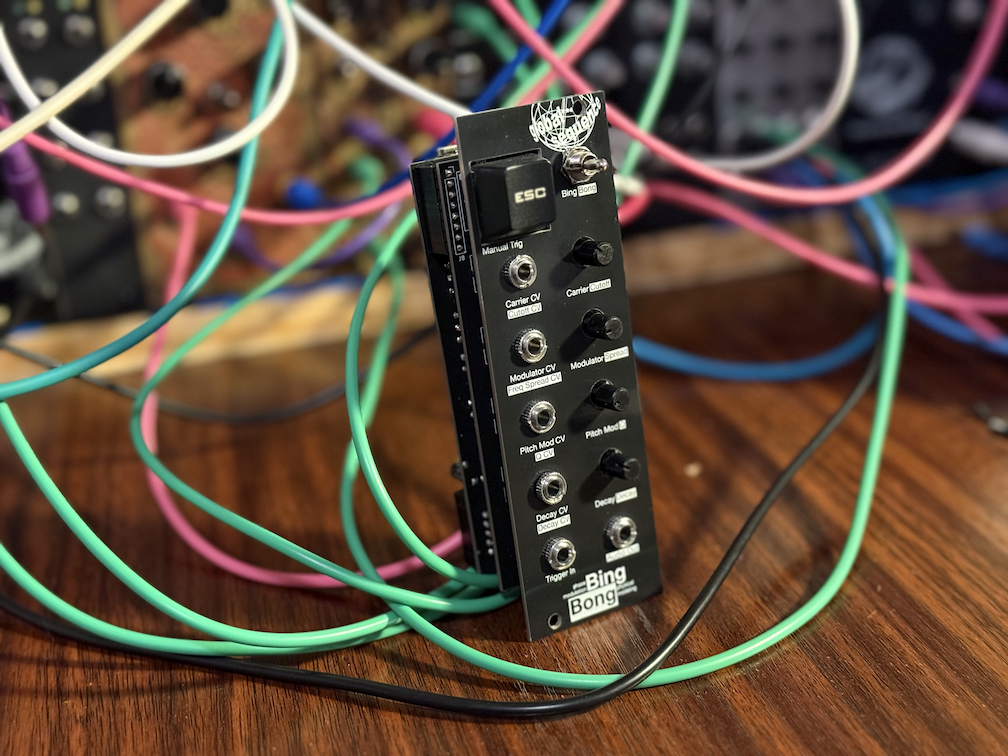

Bing bong pcb audio, from the project README
From the project README

Main components on the Bing bong pcb audio

SeeeduinoXIAO RA4M1L7805TL071TL074MCP6004

Bing bong pcb audio bill of materials (BOM)

55 components, 21 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
SeeeduinoXIAO RA4M1
U1
1
L7805
U2
1
TL071
U3
1
TL074
U4
1
MCP6004
U5
1
2N3904
Q1
1
Eurorack Power
J1
2
CONN_01X08_PIN
Conn_01x08_Pin
J2, J3
5
BAT85
D1, D2, D3, D4, D5
1
1u
C1
2
10U
10u
C2, C3
5
100N
100n
C4, C5, C9, C10, C11
1
4.7u
C6
1
100P
100p
C7
1
1n
C8
9
100K
100k
R1, R9, R12, R14, R16, R20, R22, R26 +1
10
10K
10k
R2, R4, R7, R8, R15, R17, R21, R23 +2
1
2.2K
2.2k
R3
1
33K
33k
R5
5
1k
R6, R10, R18, R24, R30
Show 1 more
QtyPartRefs
4
300K
300k
R11, R13, R19, R25

Bing bong pcb audio design files

The KiCad project lives in the GlobalSequence/bing-bong repository on GitHub; these links point at the commit this page was built from.

Bing bong pcb audio: common questions

What microcontroller does the Bing bong pcb audio use?

The Bing bong pcb audio is built around the SeeeduinoXIAO RA4M1, from the Renesas family.

How big is the Bing bong pcb audio?

The Bing bong pcb audio measures 40.3 × 108 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Bing bong pcb audio?

55 components, from 21 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Bing bong pcb audio design files?

From the GlobalSequence/bing-bong repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Bing bong pcb audio design in my own project?

The repository has no license, so all rights stay with GlobalSequence. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Bing bong pcb audio without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug Renesas firmware against it before you order a PCB.
