HE60 PCB layout, top view — open source board by gohanda11

About the HE60 PCB

HE60 is an open source PCB design by gohanda11, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 284.7 × 94.2 mm, with 261 components from 21 distinct parts.

Other key parts include the USBLC6-2SC6, TLV75733PDBV, XC6206P332MR-G and AT32F405RCT7. By type, the board carries 164 capacitors, 5 connectors, 4 ICs, 4 resistors, 2 switches and 1 crystal.

It belongs with the keyboards designs in this gallery.

From the project

HE60 FlexCut is a custom version of HE60 by peppapighs. This project builds upon the original PCB design with the following customizations:

HE60 FlexCut is a custom version of HE60 by peppapighs. This project builds upon the original PCB design with the following customizations:

- Flex Cut: Added flex cuts to the PCB to improve typing feel and flexibility. - ISO Enter support: Added support for ISO Enter layout in addition to the original ANSI layout.

Special thanks to peppapighs for the original HE60 design. This project would not have been possible without their work.

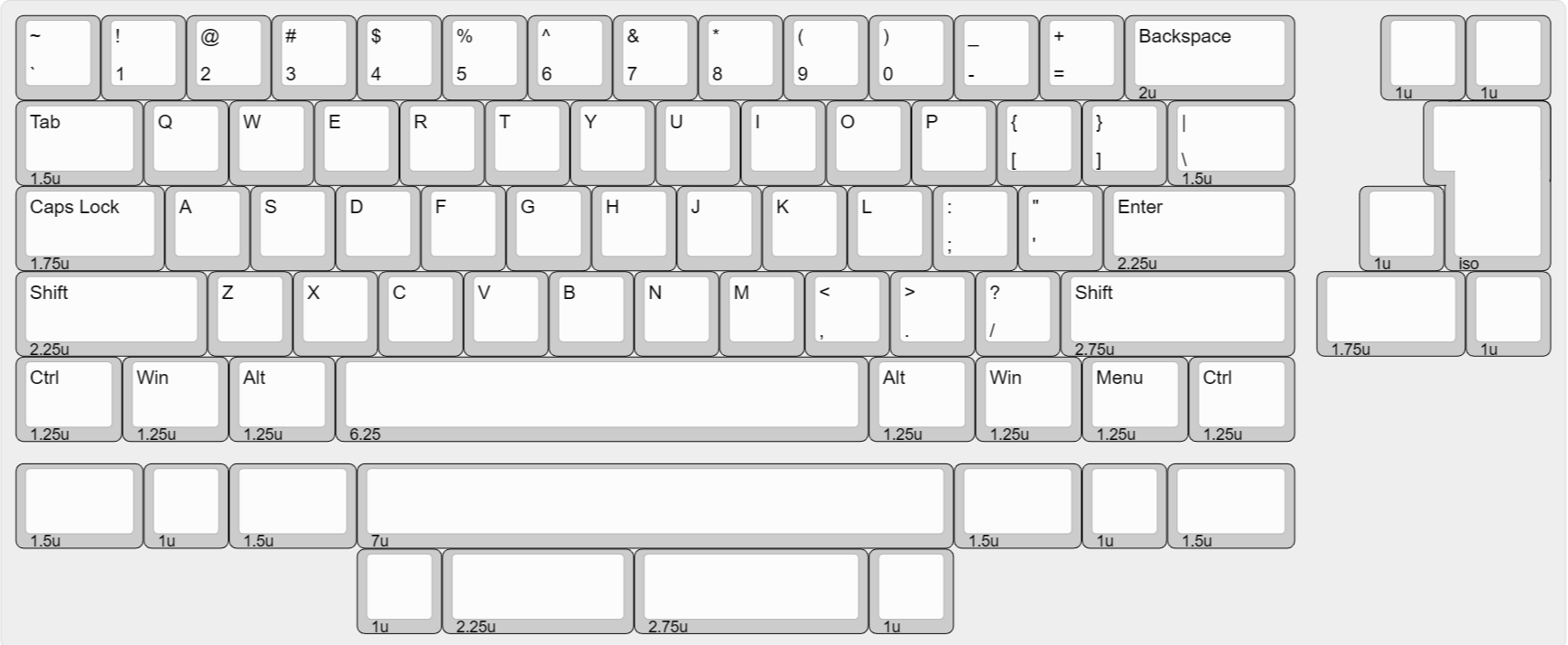

HE60, from the project README
From the project README

Main components on the HE60

USBLC6-2SC6TLV75733PDBVXC6206P332MR-GAT32F405RCT7

HE60 bill of materials (BOM)

261 components, 21 distinct parts.

QtyPartRefs
1
USBLC6-2SC6
U1
1
TLV75733PDBV
U2
1
XC6206P332MR-G
U3
1
AT32F405RCT7
Artery Technology
U4
1
X322512MSB4SI
Y1
1
TYPE-C-31-M-12
J1
1
JST_SH
J2
1
~
J3
2
Conn_01x03_Pin
J4, J5
9
SN74LV4051A
AM1, AM2, AM3, AM4, AM5, AM6, AM7, AM8 +1
1
BSMD0805-050-24V
F1
71
MT9102ET
HE1, HE2, HE3, HE4, HE5, HE6, HE7, HE8 +63
2
TS-1187A-B-A-B
SW1, SW2
85
100n
C1, C3, C5, C7, C9, C11, C13, C15 +77
71
4.7n
C2, C4, C6, C8, C10, C12, C14, C16 +63
4
2.2u
C148, C149, C150, C151
2
30p
C152, C153
1
10u
C157
1
1u
C159
2
5.1k
R1, R2
Show 1 more
QtyPartRefs
2
12k
R3, R4

HE60 design files
