Makerspace auth is an open source PCB design by google, published on GitHub under the Apache-2.0 license. It is a board measuring 65.5 × 57.8 mm, with 38 components from 18 distinct parts.
Other key parts include the ULN2003ADR. By type, the board carries 13 connectors, 6 transistors, 6 resistors, 4 diodes, 2 LEDs and 1 IC.
It belongs with the dev boards & breakouts designs in this gallery.
From the project
Designs for our makerspace access control devices

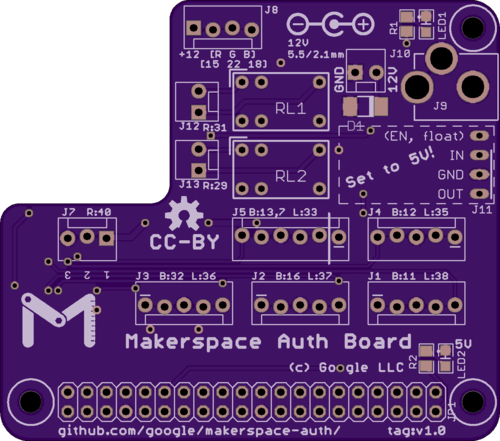

This is an example board that fits a Raspberry Pi. We tried to make it fun enough to assemble as a beginning soldering exercise (yes, even with surface mount!), and not use anything too strange.
The odd board shape is to preserve easy access to CSI bus in case you're using a camera.
We tested with 2x20 headers both cheap (eBay) and expensive (SFH11-PBPC-D20-ST-BK at $1.97). All fit, barely clearing the holes.
Main components on the Makerspace auth
Makerspace auth bill of materials (BOM)
38 components, 18 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | ULN2003ADR ULN2003AD TEXAS INSTRUMENTS | SO16 | IC1 |
| 6 | DMN3023L-7 DMN3023L DIODES INC | SOT23-3 | Q1, Q2, Q3, Q4, Q5, Q6 |
| 4 | 22-23-2051 CONN_05POLAR_LOCK MOLEX | MOLEX-1X5_LOCK | J1, J2, J3, J4 |
| 1 | 22-23-2061 CONN_06POLAR_LOCK MOLEX | MOLEX-1X6_LOCK | J5 |
| 1 | 22-23-2031 CONN_03POLAR_LOCK MOLEX | MOLEX-1X3_LOCK | J7 |
| 1 | 22-23-2041 CONN_04POLAR_LOCK MOLEX | MOLEX-1X4_LOCK | J8 |
| 1 | 694106301002 POWER_JACKPTH_LOCK WURTH EL | POWER_JACK_PTH_LOCK | J9 |
| 3 | 22-23-2021 CONN_02POLAR_LOCK MOLEX | MOLEX-1X2_LOCK | J10, J12, J13 |
| 1 | MP2315-MODULE BUCK_MODULEHORIZONTAL Proto supplies | BUCK_HORIZONTAL | J11 |
| 1 | SFH11-PBPC-D20-ST-BK PINHD-2X20 SULLINS CONN SOL | 2X20 | J14 |
| 3 | — | @HOLE0, @HOLE1, @HOLE2 | |
| 2 | HFD23/012-1ZS HFD23_SPDT HONGFA | HFD23 | RL1, RL2 |
| 2 | LED OSRAM | CHIPLED_0805 | LED1, LED2 |
| 4 | SS14 DIODE-DO-214AC ON SEMI | DO-214AC | D1, D2, D3, D4 |
| 1 | 47U 47u | C1206 | C2 |
| 1 | 1k | R0805 | R1 |
| 1 | 560 | R0805 | R2 |
| 4 | 10K 10k | R0805 | R3, R4, R5, R6 |
Makerspace auth design files
The KiCad project lives in the google/makerspace-auth repository on GitHub; these links point at the commit this page was built from.
Makerspace auth: common questions
How big is the Makerspace auth PCB?
The Makerspace auth measures 65.5 × 57.8 mm and is 1.6 mm thick.
How many components are on the Makerspace auth?
38 components, from 18 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Makerspace auth design files?
From the google/makerspace-auth repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the Makerspace auth design in my own project?
Yes, under the terms of its Apache-2.0 license, which google chose for the repository.
