DRAM-Tester x1x4-lcd

goriponsoft·DRAM-Tester-x1x4-lcd·schematic/Dram-Tester-x1x4-lcd.kicad_pcb

DRAM-Tester x1x4-lcd PCB layout, top view — open source AVR/Arduino board by goriponsoft
Simulate this board

About the DRAM-Tester x1x4-lcd PCB

DRAM-Tester x1x4-lcd is an open source AVR/Arduino PCB design by goriponsoft, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 100 × 100 mm, with 42 components from 23 distinct parts.

Its main chip is the Arduino Nano, from the AVR/Arduino family. Other key parts include the TC7660SCPA, MT3608 DCDC Module and I2C OLED Screen 0.91inch 128x32dot. By type, the board carries 18 resistors, 8 capacitors, 7 switches, 4 ICs, 2 LEDs and 1 connector.

It belongs with the displays & leds designs in this gallery.

From the project

DRAM tester that supports 4116/8265/4164/41256/4532/4416/4464/44256/4400 and is equipped with an LCD.

This is a stand-alone DRAM tester compatible with 4116/4164/41256/4532/4416/4464/44256 and equipped with an LCD. Although it is not a direct fork, it is created based on zeus074/dramtester and cloudree/DRAM_Tester. Thanks to the two original authors. Both of the two references are under the GPL3.0 license, so this DRAM tester will also be released under the GPL3.0 license.

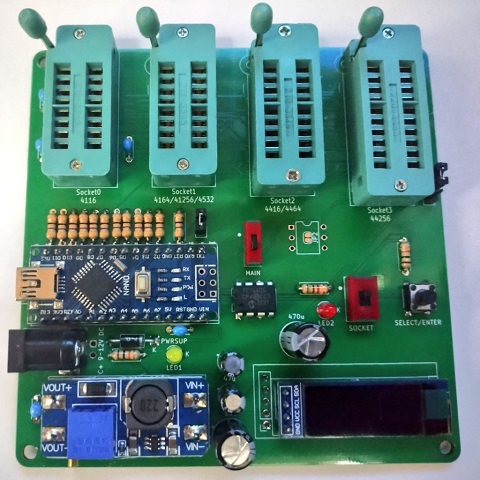

DRAM-Tester x1x4-lcd, from the project README
From the project README

Main components on the DRAM-Tester x1x4-lcd

TC7660SCPAArduino NanoMT3608 DCDC ModuleI2C OLED Screen 0.91inch 128x32dot

DRAM-Tester x1x4-lcd bill of materials (BOM)

42 components, 23 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
TC7660SCPA
TJ7660
IC1
1
Arduino Nano
U1
1
MT3608 DCDC Module
U2
1
I2C OLED Screen 0.91inch 128x32dot
U3
1
MJ-179PH
CN1
1
LEDTYP
JP1
2
ZIF Socket 16pin
S0, S1
1
ZIF Socket 18pin
S2
1
ZIF Socket 20pin
S3
1
DTS-63N-V
SW1
1
SS12SDP2
SW2
1
SS22SDP2
SW3
1
Yellow
LED1
1
SCKTPW
LED2
1
1N4007
D1
4
0.1u
C1, C2, C3, C4
2
470u
C5, C8
2
10u
C6, C7
13
47
R1, R2, R3, R4, R5, R6, R7, R8 +5
2
10K
R14, R17
Show 3 more
QtyPartRefs
1
1.5k
R15
1
750
R16
1
5.1K
R18

DRAM-Tester x1x4-lcd design files

The KiCad project lives in the goriponsoft/DRAM-Tester-x1x4-lcd repository on GitHub; these links point at the commit this page was built from.

DRAM-Tester x1x4-lcd: common questions

What microcontroller does the DRAM-Tester x1x4-lcd use?

The DRAM-Tester x1x4-lcd is built around the Arduino Nano, from the AVR/Arduino family.

How big is the DRAM-Tester x1x4-lcd PCB?

The DRAM-Tester x1x4-lcd measures 100 × 100 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the DRAM-Tester x1x4-lcd?

42 components, from 23 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the DRAM-Tester x1x4-lcd design files?

From the goriponsoft/DRAM-Tester-x1x4-lcd repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the DRAM-Tester x1x4-lcd design in my own project?

Yes, under the terms of its GPL-3.0 license, which goriponsoft chose for the repository.

Can I test firmware for the DRAM-Tester x1x4-lcd without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
