About the STM32-4Layer-Wireless-CoreBoard PCB

STM32-4Layer-Wireless-CoreBoard is an open source STM32 PCB design by gorkemguven, published on GitHub under the MIT license. It is a 4-layer board measuring 60.6 × 26.5 mm, with 43 components from 26 distinct parts.

Its main chip is the STM32WB55CEU6, from the STM32 family. Other key parts include the USBLC6-2SC6 and AP2112K-3.3. By type, the board carries 21 capacitors, 8 resistors, 3 ICs, 3 connectors, 3 inductors and 2 crystals.

It belongs with the iot & wireless and dev boards & breakouts designs in this gallery.

From the project

A 4-layer STM32-based compact wireless core board featuring USB Type-C, 50Ω RF microstrip, and dedicated power layers designed in KiCad.

A compact, 4-layer reusable STM32 wireless core board designed in KiCad. It functions both as a standalone USB-to-Wireless dongle/sniffer and as a modular core block for integration into larger IoT and embedded carrier boards.

MCU & Core: STM32 microcontroller with integrated RF capabilities. 4-Layer Optimized Stackup: Layer 1 (Top): High-speed signals, RF trace, and localized GND polygon. Layer 2 (Inner 1): Solid, unbroken Ground Reference Plane for signal integrity and RF return paths. Layer 3 (Inner 2): Dedicated power plane split (3.3V and VBUS) optimized with Non-Functional Pad (NFP)…

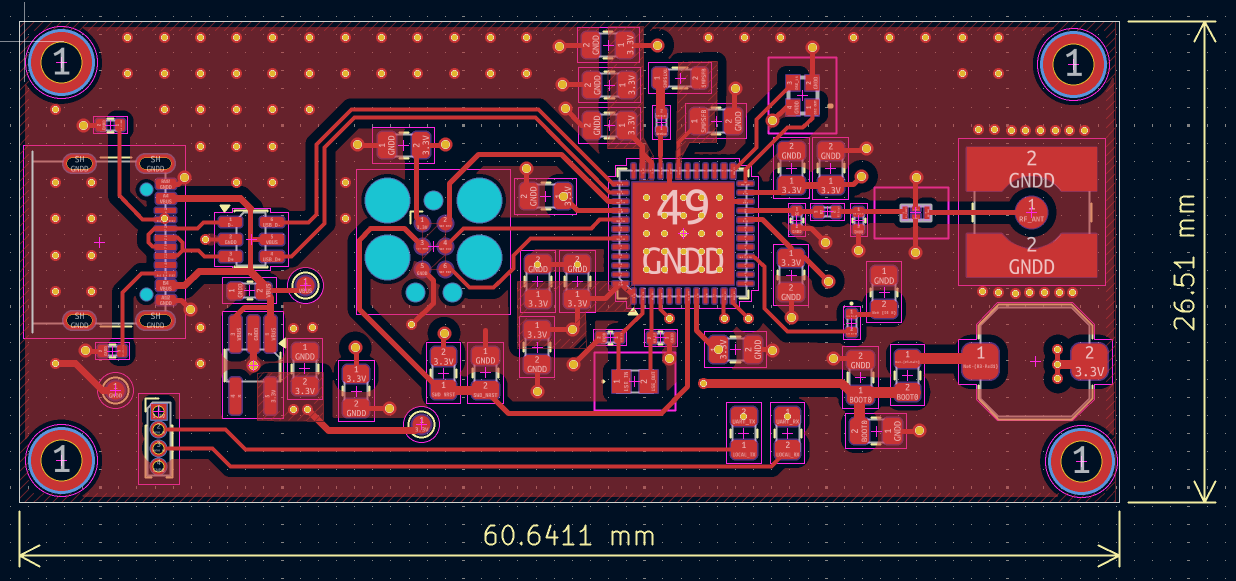

STM32-4Layer-Wireless-CoreBoard, from the project README
From the project README

Main components on the STM32-4Layer-Wireless-CoreBoard

STM32WB55CEU6USBLC6-2SC6AP2112K-3.3

STM32-4Layer-Wireless-CoreBoard bill of materials (BOM)

43 components, 26 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
STM32WB55CEU6
U1
1
USBLC6-2SC6
U2
1
AP2112K-3.3
U3
1
NX2012SA-32.768KHZ-EXS00A-MU00797
32.768kHz
X2
1
32MGHZ
32MGHz
Y2
1
Antenna
J1
1
CONN_01X04_PIN
Conn_01x04_Pin
J3
1
USB_C_RECEPTACLE_USB2.0_16P
USB_C_Receptacle_USB2.0_16P
J4
1
DLF162500LT-5028A1
Low_Pass_Filter
FL1
1
SW_Push
SW1
1
LED
D1
1
10NH
10nH
L1
1
10UH
10uH
L2
1
2.7NH
2.7nH
L3
1
100PF
100pF
C11
1
0.8PF
0.8pF
C13
1
0.3PF
0.3pF
C14
2
15PF
15pF
C15, C16
11
100NF
100nF
C17, C18, C26, C27, C28, C30, C31, C32 +3
1
4.7UF
100nF
C23
Show 6 more
QtyPartRefs
1
4.7
C24
3
4.7UF
4.7uF
C29, C34, C36
2
10K
10k
R1, R4
1
470
R3
3
220
R8, R11, R12
2
5.1K
5.1k
R9, R10

STM32-4Layer-Wireless-CoreBoard design files

The KiCad project lives in the gorkemguven/STM32-4Layer-Wireless-CoreBoard repository on GitHub; these links point at the commit this page was built from.

STM32-4Layer-Wireless-CoreBoard: common questions

What microcontroller does the STM32-4Layer-Wireless-CoreBoard use?

The STM32-4Layer-Wireless-CoreBoard is built around the STM32WB55CEU6, from the STM32 family.

How big is the STM32-4Layer-Wireless-CoreBoard PCB?

The STM32-4Layer-Wireless-CoreBoard measures 60.6 × 26.5 mm, has 4 copper layers and is 1.58 mm thick.

How many components are on the STM32-4Layer-Wireless-CoreBoard?

43 components, from 26 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the STM32-4Layer-Wireless-CoreBoard design files?

From the gorkemguven/STM32-4Layer-Wireless-CoreBoard repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the STM32-4Layer-Wireless-CoreBoard design in my own project?

Yes, under the terms of its MIT license, which gorkemguven chose for the repository.

Can I test firmware for the STM32-4Layer-Wireless-CoreBoard without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
