Analog-Video-Comb-Filter
About the Analog-Video-Comb-Filter PCB
Analog-Video-Comb-Filter is an open source PCB design by goscickiw, published on GitHub under the CC-BY-SA-4.0 license. It is a 2-layer board measuring 51.5 × 104.1 mm, with 75 components from 32 distinct parts.
Other key parts include the L7805, AD813, SAA4960/61, MC44144 and 74HC04. By type, the board carries 30 capacitors, 21 resistors, 6 ICs, 6 inductors, 4 connectors and 2 diodes.
From the project

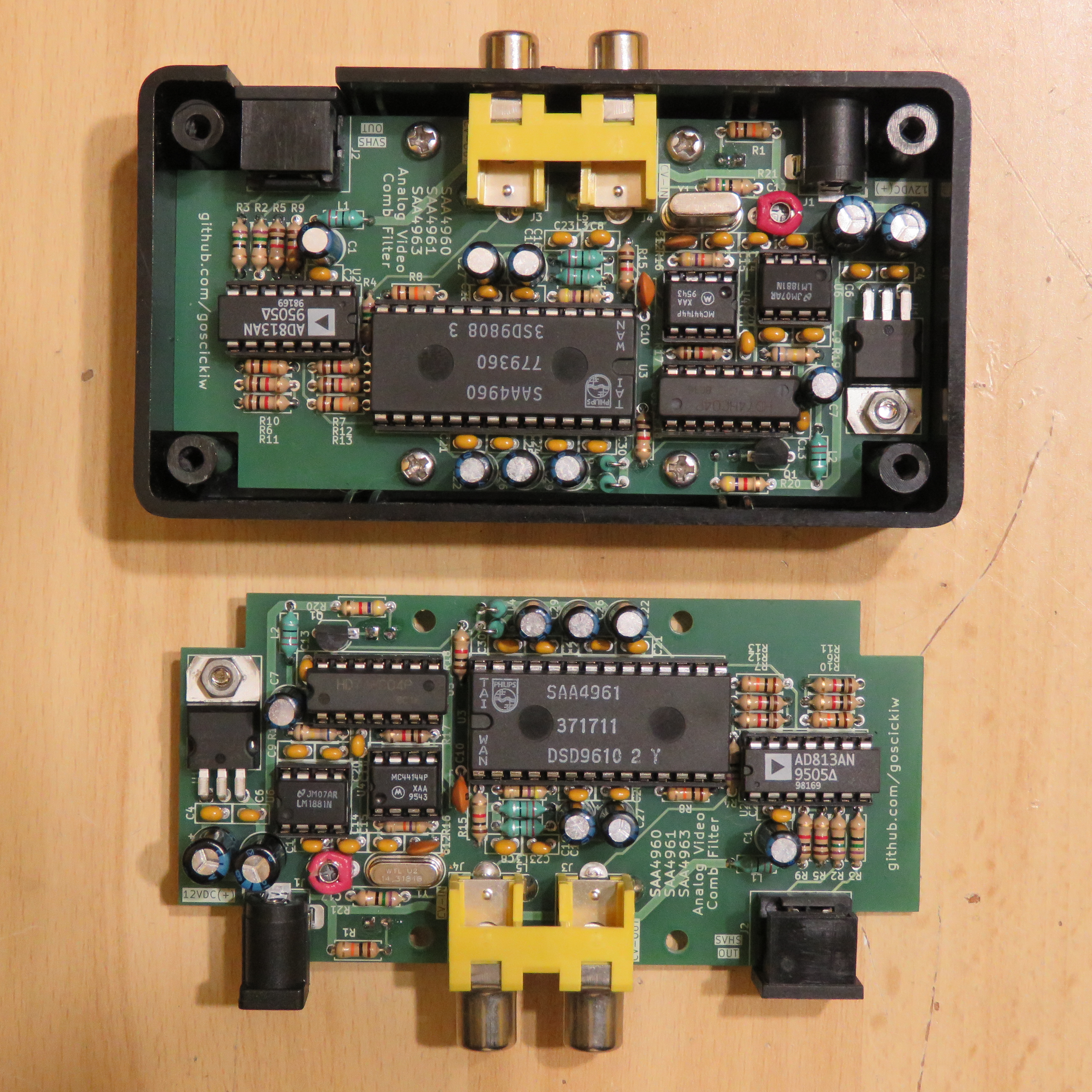

Analog Composite Video to S-Video comb filter board using SAA4960, SAA4961 or SAA4963 integrated circuit
This is a fully analog alternative to digital comb filters such as Extron YCS Transcoder or YCS 100. That doesn't mean it will give better results though. I just made it because I didn't find any fully analog device like that on the market and I wanted one.
The comb filter is used to convert a composite video signal into an S-Video (Y/C) signal. Comb filters are much better than passive LC filters usually built into composite video displays, as they can preserve the frequencies of luminance that overlap with chrominance, providing higher image detail while removing dot crawl, and remove…
Main components on the Analog-Video-Comb-Filter
Analog-Video-Comb-Filter bill of materials (BOM)
75 components, 32 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | L7805 | TO-220-3_Horizontal_TabDown | U1 |
| 1 | AD813 | DIP-14_W7.62mm_Socket | U2 |
| 1 | SAA4960/61 | DIP-28_W15.24mm_Socket | U3 |
| 1 | MC44144 | DIP-8_W7.62mm_Socket | U4 |
| 1 | 74HC04 | DIP-14_W7.62mm_Socket | U5 |
| 1 | LM1881 | DIP-8_W7.62mm_Socket | U6 |
| 1 | BC548 | TO-92_Inline_Wide | Q1 |
| 1 | See table | Crystal_HC49-U_Vertical | Y1 |
| 1 | 12VDC(+) | BarrelJack_Horizontal | J1 |
| 1 | SVHS | MDC-204 | J2 |
| 1 | CV-OUT | Keystone_973 | J3 |
| 1 | CV-IN | Keystone_973 | J4 |
| 1 | Z-76 | Z-76 | N1 |
| 3 | 1k | Potentiometer_Piher_PT-10-H01_Horizontal | RV1, RV2, RV3 |
| 1 | POWER | LED_D3.0mm | D1 |
| 1 | COMB | LED_D3.0mm | D2 |
| 4 | 22uH | L_Axial_L5.3mm_D2.2mm_P7.62mm_Horizontal_Vishay_IM-1 | L1, L2, L3, L5 |
| 2 | 22uH | L_Axial_L5.3mm_D2.2mm_P2.54mm_Vertical_Vishay_IM-1 | L4, L6 |
| 7 | 100uF | CP_Radial_D5.0mm_P2.00mm | C1, C7, C16, C22, C26, C27, C29 |
| 18 | 100nF | C_Disc_D5.0mm_W2.5mm_P2.50mm | C2, C4, C6, C8, C9, C11, C13, C14 +10 |
Show 12 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | 220uF | CP_Radial_D6.3mm_P2.50mm | C3, C5 |
| 1 | 1nF | C_Disc_D5.0mm_W2.5mm_P5.00mm | C10 |
| 1 | 470pF | C_Disc_D5.0mm_W2.5mm_P2.50mm | C12 |
| 1 | 20pF | C_Trimmer_D6.0mm_P5.08mm | C17 |
| 4 | 10k | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R1, R8, R10, R12 |
| 4 | 75R | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R2, R3, R4, R21 |
| 3 | 470R | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R5, R6, R7 |
| 6 | 1k | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R9, R11, R13, R15, R17, R19 |
| 1 | 47R | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R14 |
| 1 | 47k | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R16 |
| 1 | 680k | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R18 |
| 1 | 4,7k | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R20 |
Analog-Video-Comb-Filter design files
The KiCad project lives in the goscickiw/Analog-Video-Comb-Filter repository on GitHub; these links point at the commit this page was built from.
Analog-Video-Comb-Filter: common questions
How big is the Analog-Video-Comb-Filter PCB?
The Analog-Video-Comb-Filter measures 51.5 × 104.1 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Analog-Video-Comb-Filter?
75 components, from 32 distinct parts. The full bill of materials is listed on this page.
Where can I download the Analog-Video-Comb-Filter design files?
From the goscickiw/Analog-Video-Comb-Filter repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Analog-Video-Comb-Filter design in my own project?
Yes, under the terms of its CC-BY-SA-4.0 license, which goscickiw chose for the repository.
