Glr pcb display can shield
About the Glr pcb display can shield
Glr pcb display can shield is an open source PCB design by green-lion-racing, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 60.4 × 98.7 mm, with 28 components from 19 distinct parts.
Other key parts include the AP64060WU-7 and ATA6561-GAQW-N. By type, the board carries 12 capacitors, 6 connectors, 5 resistors, 2 ICs, 1 diode and 1 inductor.
It belongs with the displays & leds and dev boards & breakouts designs in this gallery.
From the project

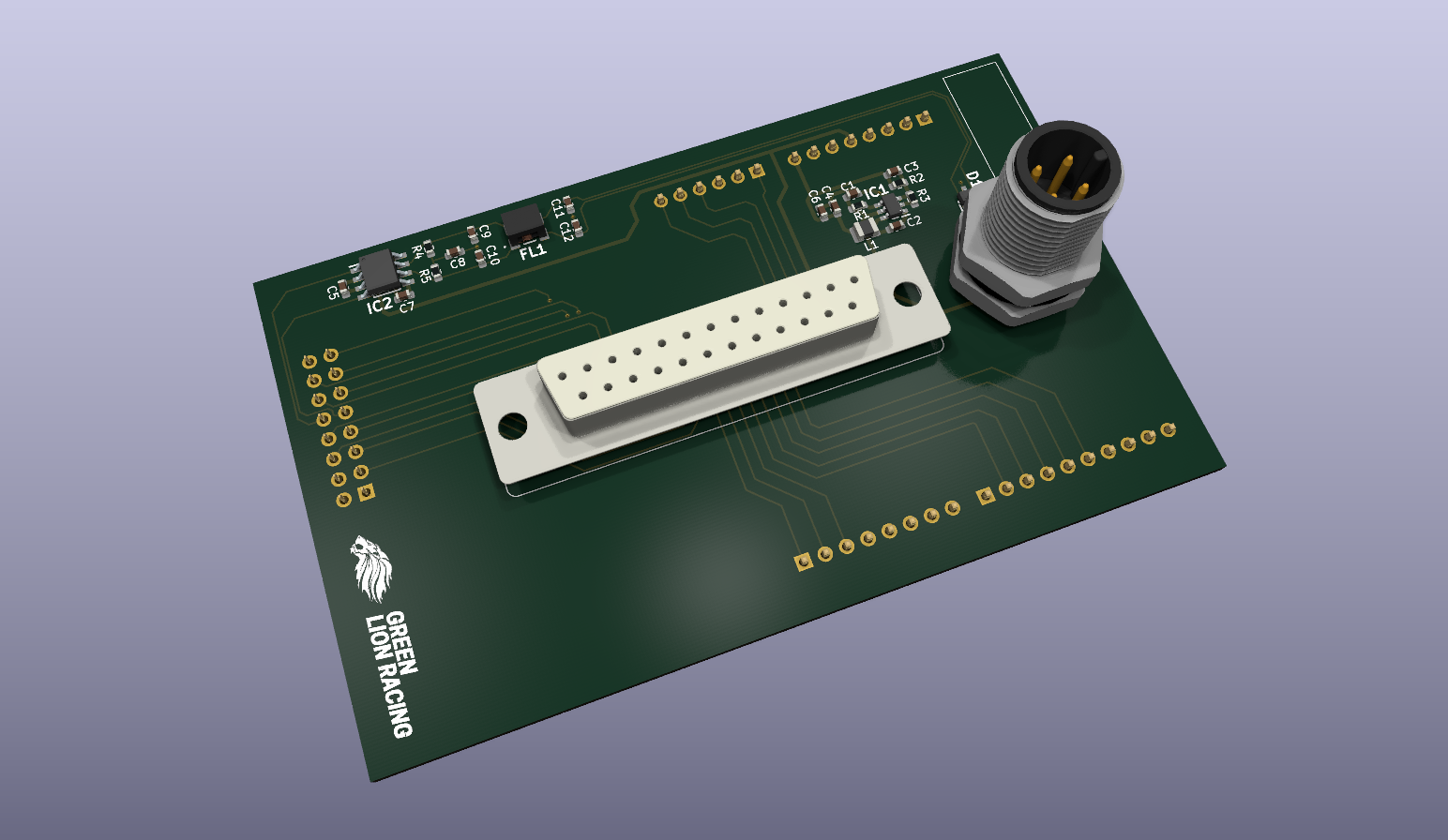

STM32F469I-DISCO compatible CAN shield.
STM32F469I-DISCO board compatible CAN shield.
Provides 8V for the discovery board, from 24V car voltage.
Acts as can transciever for the discovery board.
Accessible screw terminals for buttons signals to the discovery board.
Can be directly slotted on to the board.
Exported from KiCad BOM. View there for more details.
Main components on the Glr pcb display can shield
Glr pcb display can shield bill of materials (BOM)
28 components, 19 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | AP64060WU-7 | SOT95P280X100-6N | IC1 |
| 1 | ATA6561-GAQW-N | SOIC127P600X175-8N | IC2 |
| 1 | 732-2670 Conn_01x10 | PinHeader_1x10_P2.54mm_Vertical | CN5 |
| 2 | 732-5321 Conn_01x08 | PinHeader_1x08_P2.54mm_Vertical | CN6, CN7 |
| 1 | 732-5319 Conn_01x06 | PinHeader_1x06_P2.54mm_Vertical | CN8 |
| 1 | 732-5299 Conn_02x08_Odd_Even | PinSocket_2x08_P2.54mm_Vertical | CN12 |
| 1 | 732-61802525023 DB25_Socket | DSUB-25_Socket_Vertical_P2.77x2.84mm | J2 |
| 1 | 732-7290-1 Choke | 744235510 | FL1 |
| 1 | ESDCAN01-2BLY | SOT95P255X125-3N | D1 |
| 1 | 732-74479889310 18u | L_1008_2520Metric | L1 |
| 1 | 1276-1040-1 2u2 | C_0603_1608Metric | C1 |
| 3 | 399-C0603C104K3RACTU 100n | C_0603_1608Metric | C2, C3, C6 |
| 1 | 399-C0603C105K4RACTU 1u | C_0603_1608Metric | C4 |
| 3 | CL10B104KB8NNNC 100n | C_0603_1608Metric | C5, C7, C8 |
| 4 | CL10B104KB8NNNC 100p | C_0603_1608Metric | C9, C10, C11, C12 |
| 1 | 311-10.0KHR 10k | R_0603_1608Metric | R1 |
| 1 | P200KDB 200k | R_0603_1608Metric | R2 |
| 1 | 311-22.1KHR 22.1k | R_0603_1608Metric | R3 |
| 2 | CRCW060368R1FKEA 60 | R_0603_1608Metric | R4, R5 |
Glr pcb display can shield design files
The KiCad project lives in the green-lion-racing/glr-pcb-display-can-shield repository on GitHub; these links point at the commit this page was built from.
Glr pcb display can shield: common questions
How big is the Glr pcb display can shield?
The Glr pcb display can shield measures 60.4 × 98.7 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Glr pcb display can shield?
28 components, from 19 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Glr pcb display can shield design files?
From the green-lion-racing/glr-pcb-display-can-shield repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Glr pcb display can shield design in my own project?
Yes, under the terms of its GPL-3.0 license, which green-lion-racing chose for the repository.
