Pci104-template PCB layout, top view — open source board by guorbit

About the Pci104-template PCB

Pci104-template is an open source PCB design by guorbit, published on GitHub. It is a 2-layer board measuring 95.9 × 90.2 mm, with 2 components from 1 distinct parts.

It belongs with the science & space designs in this gallery.

From the project

PCI-104 Template for KiCad EDA

This is a PCI-104 compliant PCB template with the 4x30 P2.00mm socket and M3 mounting holes correctly positioned, as well as the recommended keep-out areas. No additional circuitry is present so you can build your own. Made with KiCad.

Read PC/104 Consortium's official specification in detail at https://pc104.org/wp-content/uploads/2015/02/PC104Plusv2_32.pdf (Note: this is actually the PC/104-Plus specification, difference being that PCI-104 lacks the 104-pin ISA bus connector)

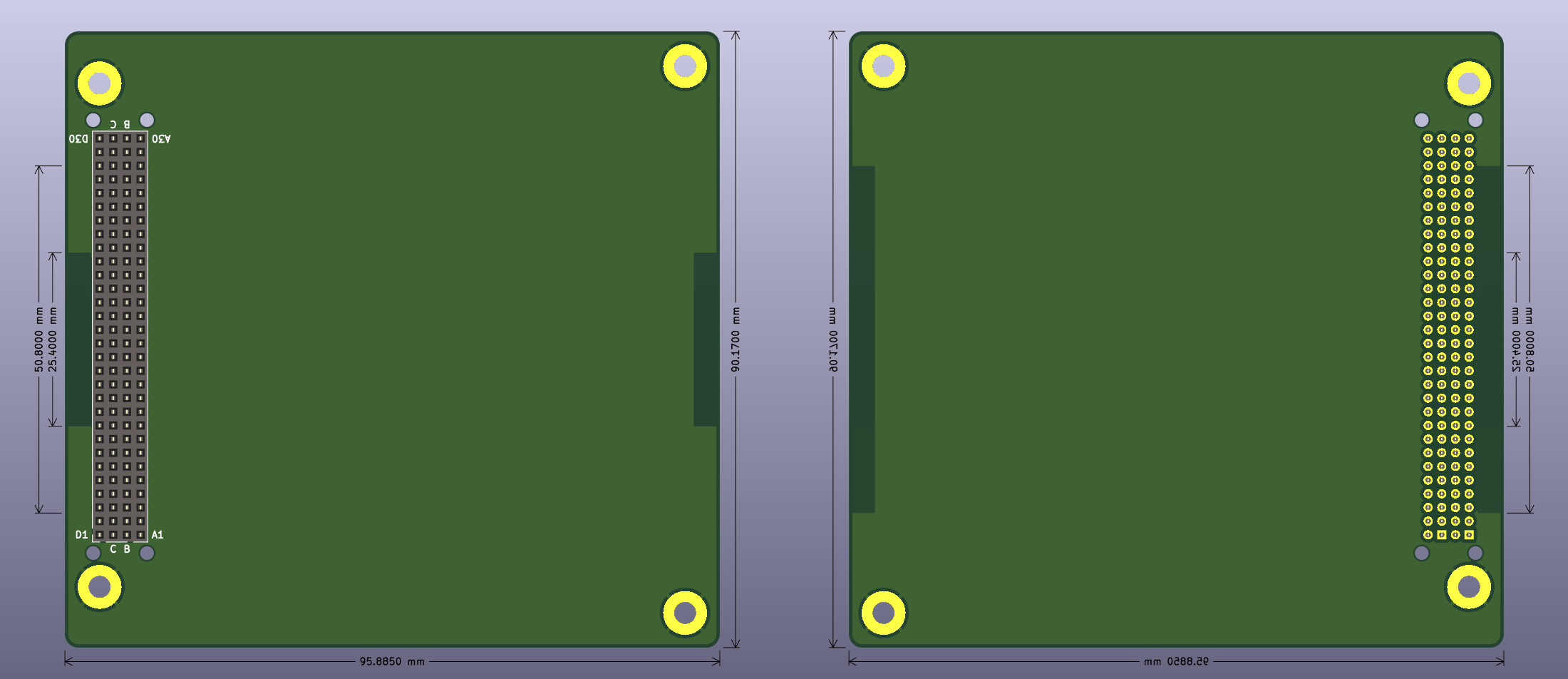

Pci104-template, from the project README
From the project README

Pci104-template bill of materials (BOM)

2 components, 1 distinct parts.

QtyPartRefs
2
Conn_02x30_Row_Letter_First
J1, J2

Pci104-template design files

The KiCad project lives in the guorbit/pci104-template repository on GitHub; these links point at the commit this page was built from.

Pci104-template: common questions

How big is the Pci104-template PCB?

The Pci104-template measures 95.9 × 90.2 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Pci104-template?

2 components, from 1 distinct parts. The full bill of materials is listed on this page.

Where can I download the Pci104-template design files?

From the guorbit/pci104-template repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Pci104-template design in my own project?

The repository has no license, so all rights stay with guorbit. Use it as a reference, and ask the author before reusing the design.
