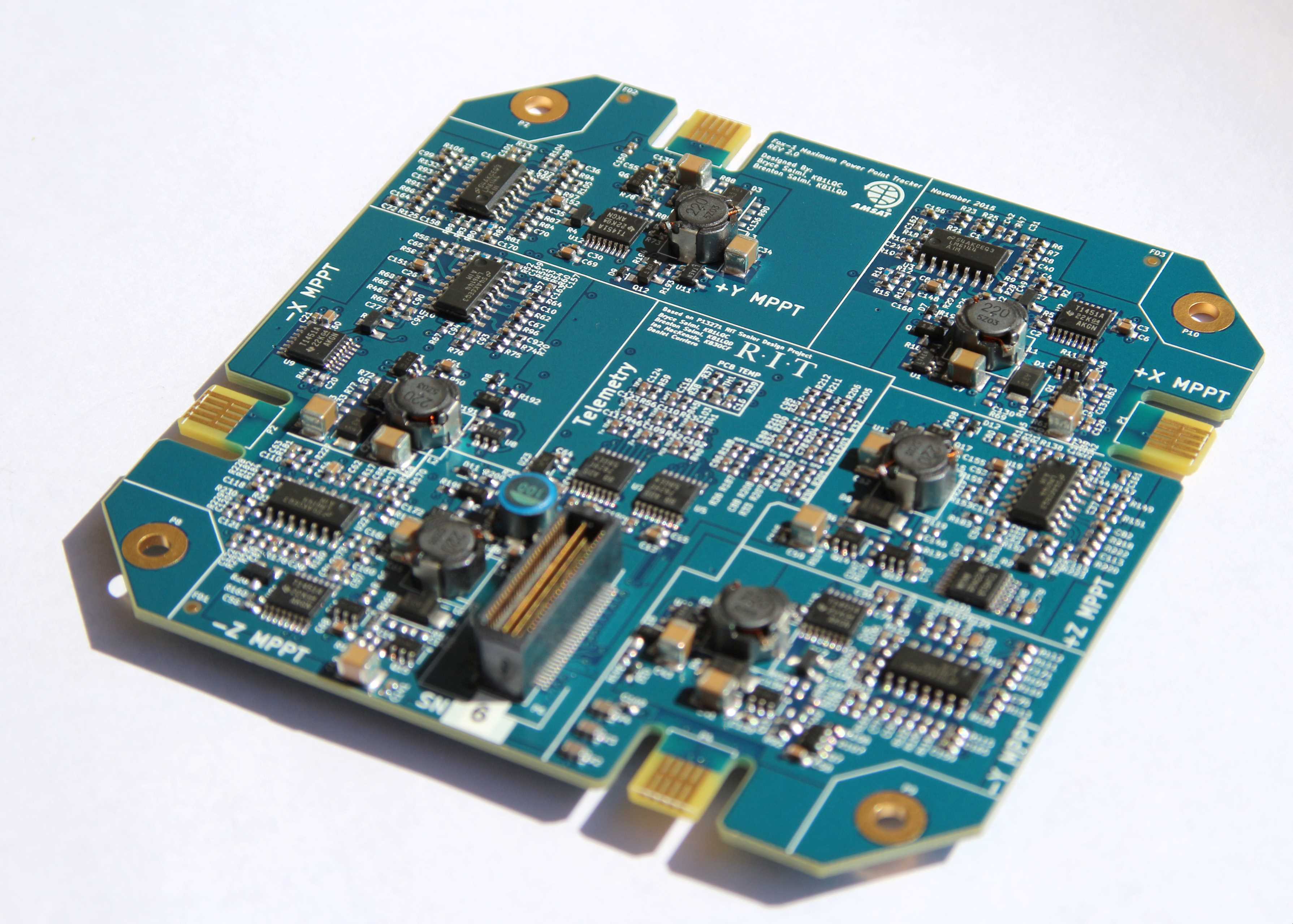

About the Fox-1-MPPT PCB
Fox-1-MPPT is an open source PCB design by FaradayRF, published on GitHub under the Custom license license. It is a 4-layer board measuring 95 × 95 mm, with 453 components from 57 distinct parts.
Other key parts include the LTC4411, TL1451ACPWR, LM6144AIM/NOPB, ADS7828E/250 and INA195AIDBVR. By type, the board carries 208 resistors, 167 capacitors, 21 ICs, 18 transistors, 12 diodes and 10 connectors.
It belongs with the rf & radio, power & battery and science & space designs in this gallery.
From the project
AMSAT Fox-1 satellite Maximum Power Point Tracker hardware design files
The Fox-1 Maximum Power Point Tracker utilizes analog computing to track the solar panel voltage which generates the maximum amount of power from solar cells. It implements what is essentially a "temperature-based set-point constant voltage algorithm" MPPT. Since the solar cells are well-known, this design uses op-amps to compute the predicted voltage which will produce maximum power as fast as the analog bandwidth of the components used will allow it. Analog MPPT was chosen for it's "stateless" design due to radiation tolerance concerns of microcontrollers.

Main components on the Fox-1-MPPT
Fox-1-MPPT bill of materials (BOM)
453 components, 57 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 6 | LTC4411 | TSOT23-5 | U1, U8, U11, U14, U17, U20 |
| 6 | TL1451ACPWR TL1451A | PW16 | U2, U9, U12, U15, U18, U21 |
| 6 | LM6144AIM/NOPB LM6144A | SO14 | U3, U10, U13, U16, U19, U22 |
| 2 | ADS7828E/250 ADS7828 | PW16 | U5, U7 |
| 1 | INA195AIDBVR INA195 | SOT23-5 | U23 |
| 6 | DMP2066LDM-7 | SOT26 | Q1, Q5, Q9, Q13, Q14, Q15 |
| 6 | MMDT2227M-7 MMDT2227M | SOT26 | Q2, Q3, Q6, Q7, Q10, Q11 |
| 6 | 2N7002K | SOT23 | Q4, Q8, Q12, Q16, Q17, Q18 |
| 4 | CONN_5X2 | MEC1-105-02-L-D-NP-A | P1, P2, P3, P4 |
| 1 | QSH-030-01-L-D-A QSH-030-01-X-D-A | QSH-030-01-L-D-A | P5 |
| 1 | QTH-030-02-L-D-A QTH-030-02-X-D-A | QTH-030-02-L-D-A | P6 |
| 4 | CONN_1 | FOX_Mounting_Hole | P7, P8, P9, P10 |
| 3 | NFL21SP106X1C3D | NFL21SP | F2, F3, F4 |
| 6 | FIDUCIAL | FD1 | FD1, FD2, FD3, FD4, FD5, FD6 |
| 1 | NTCS0603E3103FMT | R0603 | TH1 |
| 6 | PMEG3020EP | SOD128 | D1, D2, D3, D4, D5, D6 |
| 3 | SDM10U45-7 | SOD523 | D7, D9, D11 |
| 3 | SDM10U45-7 | SOD523 | D8, D10, D12 |
| 6 | CLF7045T-220M-H 22uH | CLF7045T | L1, L2, L3, L4, L5, L6 |
| 1 | SLF6045T-100M1R6-3PF 10uH | SLF6045 | L7 |
Show 37 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 55 | GRM155R71C104KA88D 0.1uF | C0402 | C1, C3, C8, C10, C11, C15, C16, C18 +47 |
| 6 | GRM1555C1H221FA01D 220pF | C0402 | C2, C20, C29, C38, C47, C56 |
| 12 | GRM155R71C123KA01D 0.012uF | C0402 | C4, C31, C90, C92, C97, C99, C104, C106 +4 |
| 12 | GRM32ER61C476KE15K 47uF | C1210 | C5, C7, C23, C25, C32, C34, C41, C43 +4 |
| 20 | GRM188R7YA105KA12D 1uF | C0603 | C6, C13, C17, C46, C51, C55, C58, C60 +12 |
| 12 | GRM155R71C153KA01D 0.015uF | C0402 | C9, C27, C36, C45, C49, C54, C63, C94 +4 |
| 23 | GRM155C81E105ME11D 1uF | C0402 | C12, C14, C42, C67, C72, C77, C78, C82 +15 |
| 12 | GRM155R71H821KA01D 820pF | C0402 | C22, C40, C91, C93, C98, C100, C105, C107 +4 |
| 2 | GRM188R71C394KA88D 0.39uF | C0603 | C125, C126 |
| 1 | GRM155R71C103KA01D 0.01uF | C0402 | C128 |
| 12 | DNP | C0402 | C130, C131, C133, C134, C136, C137, C139, C140 +4 |
| 6 | MPMT4001AT1 | SOT23 | R1, R3, R4, R17, R20, R24 |
| 12 | ERA-2AEB2610X 261 | R0402 | R2, R6, R48, R70, R105, R106, R162, R163 +4 |
| 6 | ERJ-2RKF4991X 4.99K | R0402 | R5, R44, R73, R102, R131, R160 |
| 12 | ERA-2AEB4751X 4.75K | R0402 | R7, R27, R66, R74, R95, R124, R128, R153 +4 |
| 6 | ERA-2AEB1541X 1.54K | R0402 | R8, R75, R132, R213, R222, R231 |
| 18 | ERA-2AEB3321X 3.32K | R0402 | R9, R21, R26, R60, R65, R76, R89, R94 +10 |
| 6 | CRCW06036R04FKEA 6.04 | R0603 | R10, R49, R78, R107, R136, R165 |
| 6 | ERA-2AEB202X 2K | R0402 | R11, R50, R79, R108, R137, R166 |
| 24 | ERJ-2RKF2493X 249K | R0402 | R12, R13, R16, R19, R51, R52, R55, R58 +16 |
| 6 | MCS0402MD1000BE100 100 | R0402 | R14, R53, R82, R111, R140, R169 |
| 6 | ERA-2AEB2491X 2.49K | R0402 | R15, R54, R83, R112, R141, R170 |
| 6 | ERA-2AEB273X 27K | R0402 | R18, R57, R86, R115, R144, R173 |
| 2 | UCR03EVPFSR051 0.051 | R0603 | R22, R185 |
| 6 | ERA-2AEB2432X 24.3K | R0402 | R23, R62, R91, R120, R149, R178 |
| 6 | ERA-2AEB242X 2.4K | R0402 | R25, R64, R93, R122, R151, R180 |
| 33 | ERA-2AEB103X 10K | R0402 | R28, R30, R31, R32, R33, R34, R35, R36 +25 |
| 6 | ERA-2AEB6491X 6.49K | R0402 | R29, R68, R97, R126, R155, R184 |
| 1 | ERA-2AEB7152X 71.5K | R0402 | R37 |
| 1 | ERA-2AEB331X 330 | R0402 | R38 |
| 1 | ERA-2AEB9091X 9.09K | R0402 | R39 |
| 6 | ERJ-2RKF4702X 47K | R0402 | R47, R96, R125, R161, R218, R236 |
| 6 | ERJ-2RKF2053X 205K | R0402 | R61, R71, R85, R92, R100, R114 |
| 12 | DNP | R0402 | R63, R69, R72, R77, R88, R90, R98, R99 +4 |
| 7 | ERA-2AEB3012X 30.1K | R0402 | R187, R202, R204, R206, R208, R210, R212 |
| 1 | ERA-2AEB4022X 40.2K | R0402 | R188 |
| 6 | ERA-2AEB5112X 51.1K | R0402 | R201, R203, R205, R207, R209, R211 |
Fox-1-MPPT design files
The KiCad project lives in the FaradayRF/Fox-1-MPPT repository on GitHub; these links point at the commit this page was built from.
Fox-1-MPPT: common questions
How big is the Fox-1-MPPT PCB?
The Fox-1-MPPT measures 95 × 95 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the Fox-1-MPPT?
453 components, from 57 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Fox-1-MPPT design files?
From the FaradayRF/Fox-1-MPPT repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the Fox-1-MPPT design in my own project?
It is published under Custom license, which limits how it may be reused; read the license before building on it.
