About the Batteryboard PCB
Batteryboard is an open source PCB design by pycubed, published on GitHub. It is a 2-layer board measuring 95.9 × 90.2 mm, with 28 components from 18 distinct parts.
Other key parts include the MAX706RESA. By type, the board carries 12 connectors, 4 test points, 4 capacitors, 4 resistors, 2 transistors and 1 IC.
It belongs with the power & battery and science & space designs in this gallery.
From the project
Pycubed PC104 layout design files

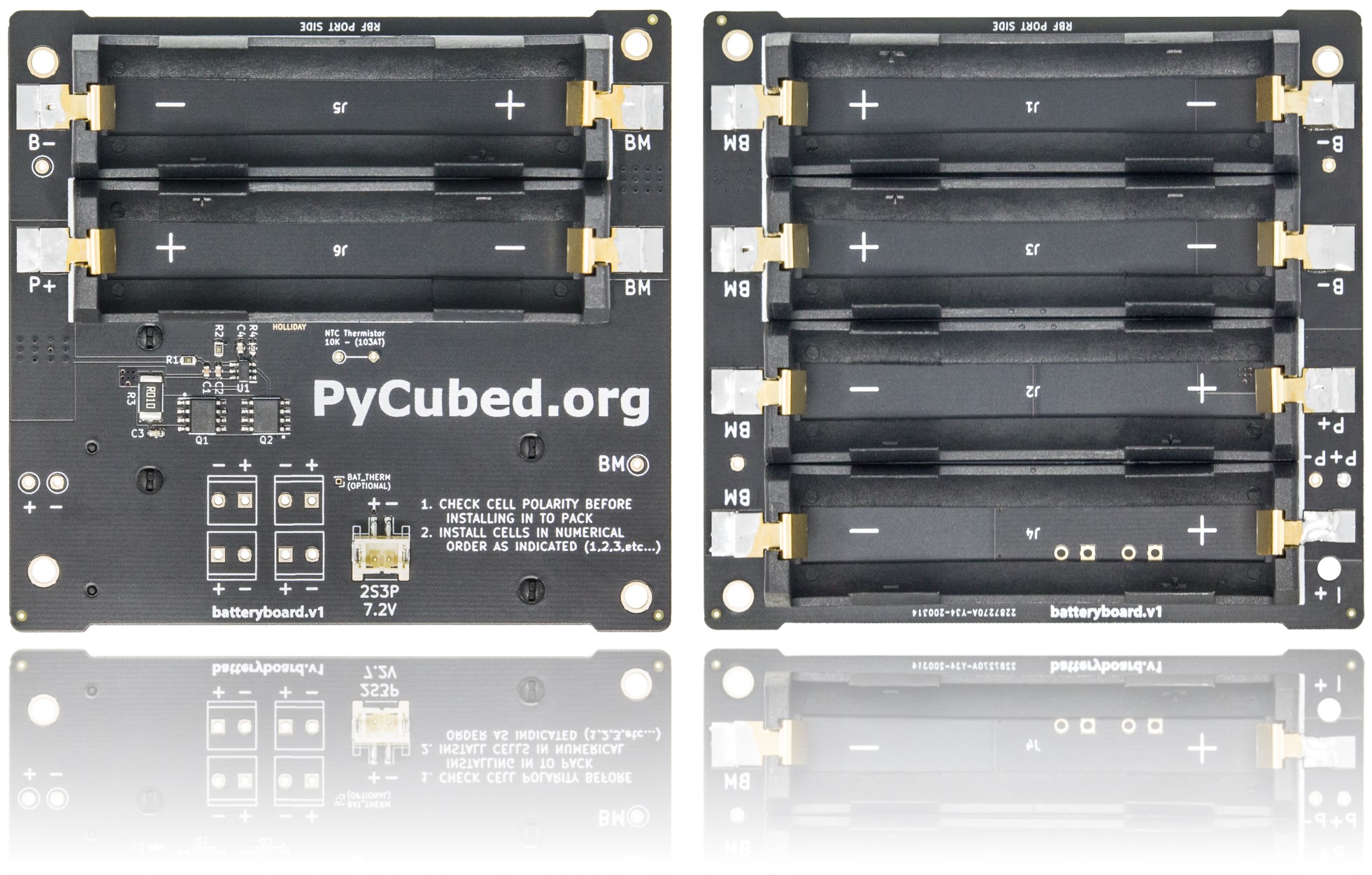

2S3P Li-ion battery pack for CubeSat designs. - Fits 18650 cells (like the LG INR18650-MJ1) - Meets maximum capacity requirements of common CubeSat integrators - Uses components with radiation testing heritage - R5460x2xx for protection against - over-charge - over-discharge - short-circuit - excess discharge-current - excess charge-current
Tested against the following flight requirement documents: (the cells you use play a big role here) - TBA

Main components on the Batteryboard
Batteryboard bill of materials (BOM)
28 components, 18 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | MAX706RESA R5460N233AF | SOT95P280X130-6N | U1 |
| 1 | IRLML2803 IRF7458 | SOIC-8_3.9x4.9mm_P1.27mm | Q1 |
| 1 | MBT2222ADW1T1 IRF7458 | SOIC-8_3.9x4.9mm_P1.27mm | Q2 |
| 1 | 503182-1852 KEYSTONE-1042 | KEYSTONE-1042 | J1 |
| 3 | KEYSTONE-1042 | KEYSTONE-1042 | J2, J5, J6 |
| 2 | 1985807 KEYSTONE-1042 | KEYSTONE-1042 | J3, J4 |
| 1 | AMPHENOL_901-144 JST_PH_S2B-PH-SM4 | JST_PH_S2B-PH-SM4-TB_1x02-1MP_P2.00mm_Horizontal | J7 |
| 4 | Screw_Terminal_01x02 | SCREWTERMINAL-3.5MM-2_LOCK | J8, J9, J10, J11 |
| 1 | Screw_Terminal_01x01 | PinHeader_1x01_P1.00mm_Vertical | J12 |
| 1 | Thermistor | R_Axial_DIN0204_L3.6mm_D1.6mm_P5.08mm_Vertical | TH1 |
| 4 | TestPoint | TestPoint_Loop_D1.80mm_Drill1.0mm_Beaded | TP1, TP2, TP3, TP4 |
| 2 | 8PF 0.1uF | C_0603_1608Metric | C1, C2 |
| 1 | 0.1UF 0.1uF | C_0603_1608Metric | C3 |
| 1 | 1UF 0.1uF | C_0603_1608Metric | C4 |
| 1 | 316K 330 | R_0603_1608Metric | R1 |
| 1 | 110K 330 | R_0603_1608Metric | R2 |
| 1 | 10K 0.01 | R_2512_6332Metric | R3 |
| 1 | 10K 1K | R_0603_1608Metric | R4 |
Batteryboard design files
The KiCad project lives in the pycubed/hardware repository on GitHub; these links point at the commit this page was built from.
Batteryboard: common questions
How big is the Batteryboard PCB?
The Batteryboard measures 95.9 × 90.2 mm, has 2 copper layers and is 1.5748 mm thick.
How many components are on the Batteryboard?
28 components, from 18 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Batteryboard design files?
From the pycubed/hardware repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the Batteryboard design in my own project?
The repository has no license, so all rights stay with pycubed. Use it as a reference, and ask the author before reusing the design.
