Gustav0547.hackpad.io PCB layout, top view — open source RP2040/RP2350 board by Gustav0547

About the Gustav0547.hackpad.io PCB

Gustav0547.hackpad.io is an open source RP2040/RP2350 PCB design by Gustav0547, published on GitHub. It is a 2-layer board measuring 77.8 × 115.5 mm, with 34 components from 4 distinct parts.

Its main chip is the XIAO-RP2040-SMD, from the RP2040/RP2350 family. By type, the board carries 16 switches, 16 diodes and 2 ICs.

It belongs with the keyboards and displays & leds designs in this gallery.

From the project

Macropad with 16 buttons, 15 to run shortcuts, 1 to swap between sets of keys, and a screen to display what set of keys is active.

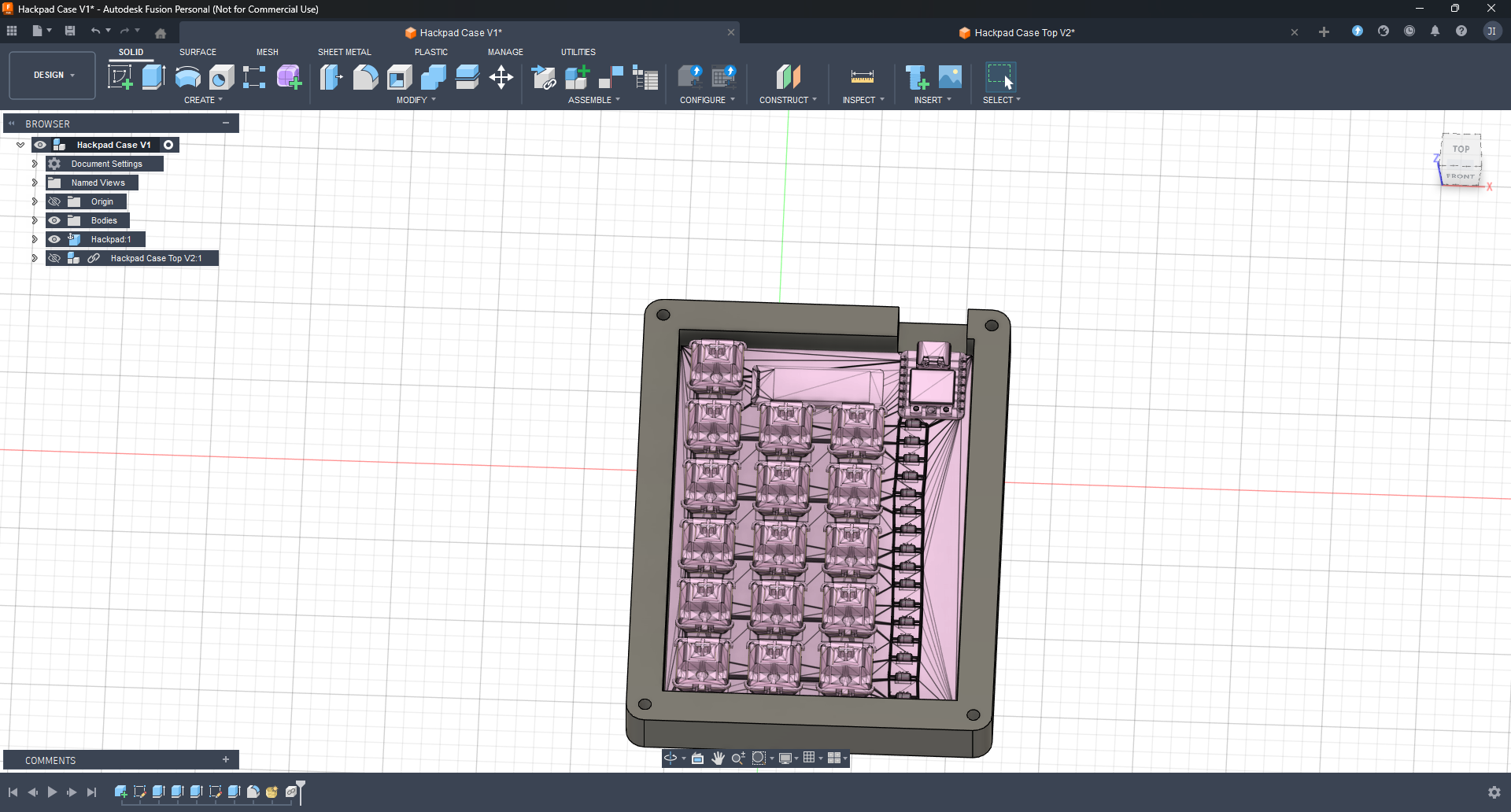

Gustav0547.hackpad.io, from the project README
From the project README

Main components on the Gustav0547.hackpad.io

XIAO-RP2040-SMD

Gustav0547.hackpad.io bill of materials (BOM)

34 components, 4 distinct parts.

QtyPartRefs
1
XIAO-RP2040-SMD
U1
1
~
U2
16
SW_Push
SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +8
16
1N4148
D1, D2, D3, D4, D5, D6, D7, D8 +8

Gustav0547.hackpad.io design files

The KiCad project lives in the Gustav0547/gustav0547.hackpad.io repository on GitHub; these links point at the commit this page was built from.

Gustav0547.hackpad.io: common questions

What microcontroller does the Gustav0547.hackpad.io use?

The Gustav0547.hackpad.io is built around the XIAO-RP2040-SMD, from the RP2040/RP2350 family.

How big is the Gustav0547.hackpad.io PCB?

The Gustav0547.hackpad.io measures 77.8 × 115.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Gustav0547.hackpad.io?

34 components, from 4 distinct parts. The full bill of materials is listed on this page.

Where can I download the Gustav0547.hackpad.io design files?

From the Gustav0547/gustav0547.hackpad.io repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Gustav0547.hackpad.io design in my own project?

The repository has no license, so all rights stay with Gustav0547. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Gustav0547.hackpad.io without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
