Pi1541io
About the Pi1541io PCB
Pi1541io is an open source PCB design by hackup, published on GitHub under the CC-BY-SA-4.0 license. It is a 2-layer board measuring 65 × 56 mm, with 50 components from 24 distinct parts.
Other key parts include the LevelShifter and 7406. By type, the board carries 17 connectors, 15 resistors, 7 switches, 5 transistors, 2 ICs and 2 diodes.
It belongs with the retro computing and displays & leds designs in this gallery.
From the project
Raspberry Pi extension board for the PI1541 project.
This is an IO adapter board for the Raspberry Pi 3, based on the awesome Pi1541 project by Steve White. It is currently very much work in progress. USE AT YOUR OWN RISK!
Details of the adapter board development are documented on hackup.net. The Gerber files for the latest stable revision are included in the repository. Also, the boards are ready to be ordered directly from PCBWay or DirtyPCBs.
Main components on the Pi1541io
Pi1541io bill of materials (BOM)
50 components, 24 distinct parts.

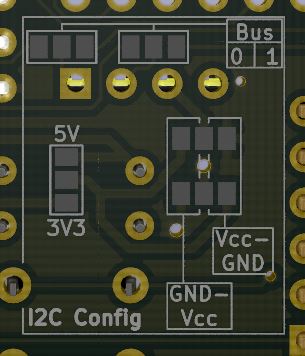

| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | LevelShifter | LevelShifterModule4CH | U1 |
| 1 | 7406 | DIP-14_W7.62mm | U2 |
| 5 | BSS138 | SOT-23 | Q1, Q2, Q3, Q4, Q5 |
| 1 | IEC1 | DIN-6-Variable | J1 |
| 1 | IEC2 | DIN-6-Variable | J2 |
| 1 | IEC3 | Pin_Header_Straight_1x06_Pitch2.54mm | J3 |
| 1 | ExtSpkr | Pin_Header_Straight_1x01_Pitch2.54mm | J4 |
| 5 | GS3 | GS3 | J5, J6, J7, J8, J9 |
| 4 | SDA | GS3 | J10, J13, J14, J15 |
| 1 | SCL | GS3 | J11 |
| 1 | I2C | Socket_Strip_Straight_1x04_Pitch2.54mm | J12 |
| 1 | GS2 | GS2 | J16 |
| 1 | Conn_02x20_Odd_Even | Socket_Strip_Straight_2x20_Pitch2.54mm | P1 |
| 1 | Spkr | Piezo Speaker 1407 | LS1 |
| 5 | SW_Push | SW_Tactile_SPST_Angled_PTS645Vx83-2LFS | SW1, SW2, SW3, SW4, SW5 |
| 1 | Reset | SW_PUSH_6mm | SW6 |
| 1 | SPKR_EN | Pin_Header_Straight_2x01_Pitch2.54mm | SW7 |
| 1 | PWR | LED_D3.0mm | D1 |
| 1 | ACT | LED_D3.0mm | D2 |
| 1 | 100n | C_Disc_D4.3mm_W1.9mm_P5.00mm | C1 |
Show 4 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | 220 | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R1, R2 |
| 2 | 1k | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R3, R4 |
| 10 | 10k | R_0805 | R5, R6, R7, R8, R9, R10, R11, R12 +2 |
| 1 | 1k | R_0805_HandSoldering | R13 |
Pi1541io design files
The KiCad project lives in the hackup/Pi1541io repository on GitHub; these links point at the commit this page was built from.
- LayoutPi1541io.kicad_pcb
Pi1541io: common questions
How big is the Pi1541io PCB?
The Pi1541io measures 65 × 56 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Pi1541io?
50 components, from 24 distinct parts. The full bill of materials is listed on this page.
Where can I download the Pi1541io design files?
From the hackup/Pi1541io repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the Pi1541io design in my own project?
Yes, under the terms of its CC-BY-SA-4.0 license, which hackup chose for the repository.
