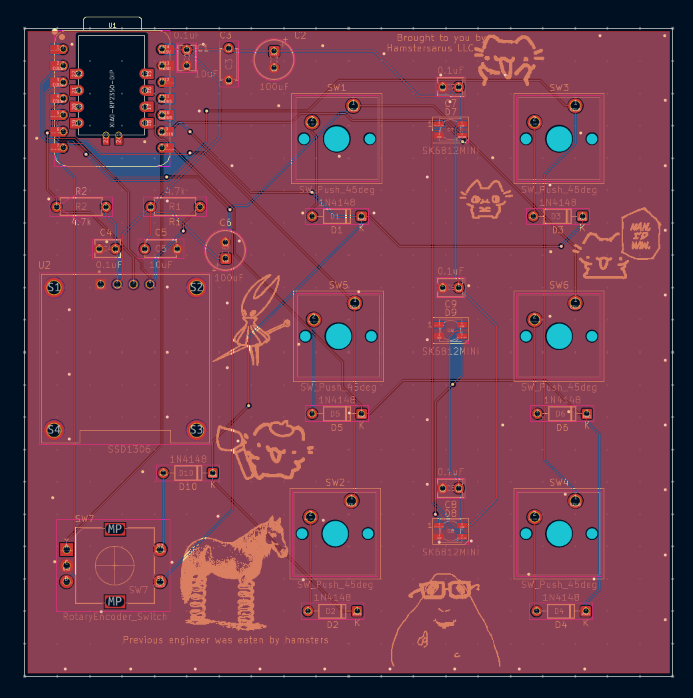

HackClubMicropad PCB layout, top view — open source RP2040/RP2350 board by Hamstersarus

About the HackClubMicropad PCB

HackClubMicropad is an open source RP2040/RP2350 PCB design by Hamstersarus, published on GitHub. It is a 2-layer board measuring 100 × 100 mm, with 30 components from 10 distinct parts.

Its main chip is the 1597-102010550-ND, from the RP2040/RP2350 family. Other key parts include the 3086-MDOB128064V2V-YI-ND. By type, the board carries 10 diodes, 9 capacitors, 7 switches, 2 ICs and 2 resistors.

It belongs with the keyboards and displays & leds designs in this gallery.

From the project

The HackClub Micropad is a compact, USB-HID macropad intended for programmable shortcut input. It was designed from scratch in KiCad and manufactured via JLCPCB. Firmware runs on CircuitPython. It is a keybord with a programmable OLED screen, 6 keys, and a rotary encoder. It is a

The HackClub Micropad is a compact, USB-HID macropad intended for programmable shortcut input. It was designed from scratch in KiCad and manufactured via JLCPCB. Firmware runs on CircuitPython. It is a keybord with a programmable OLED screen, 6 keys, and a rotary encoder. It is a fun, memorable, and beginner friendly productivity tool.

- Seeed Studio XIAO RP2350 microcontroller - Mechanical key switches (MX-compatible footprints) - Rotary encoder with push-button - Onboard NeoPixel (WS2812B) RGB indicator - USB-C connectivity via the XIAO module - 3D-printed enclosure (FDM, PLA)

HackClubMicropad, from the project README
From the project README

Main components on the HackClubMicropad

1597-102010550-ND3086-MDOB128064V2V-YI-ND

HackClubMicropad bill of materials (BOM)

30 components, 10 distinct parts.

QtyPartRefs
1
1597-102010550-ND
XIAO-RP2350-DIP
U1
1
3086-MDOB128064V2V-YI-ND
SSD1306
U2
6
1644-MX2A-E1NW-ND
SW_Push_45deg
SW1, SW2, SW3, SW4, SW5, SW6
1
4809-EC11E15204A3-ND
RotaryEncoder_Switch
SW7
7
1N4148FS-ND
1N4148
D1, D2, D3, D4, D5, D6, D10
3
1528-1541-ND
SK6812MINI
D7, D8, D9
5
490-8808-ND
0.1uF
C1, C4, C7, C8, C9
2
732-8825-1-ND
100uF
C2, C6
2
399-C324C106K3R5TA7301CT-ND
10uF
C3, C5
2
56-CCF554K70FKE36CT-ND
4.7k
R1, R2

HackClubMicropad design files

The KiCad project lives in the Hamstersarus/HackClubMicropad repository on GitHub; these links point at the commit this page was built from.

HackClubMicropad: common questions

What microcontroller does the HackClubMicropad use?

The HackClubMicropad is built around the 1597-102010550-ND, from the RP2040/RP2350 family.

How big is the HackClubMicropad PCB?

The HackClubMicropad measures 100 × 100 mm, has 2 copper layers and is 1.580794 mm thick.

How many components are on the HackClubMicropad?

30 components, from 10 distinct parts. The full bill of materials is listed on this page.

Where can I download the HackClubMicropad design files?

From the Hamstersarus/HackClubMicropad repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the HackClubMicropad design in my own project?

The repository has no license, so all rights stay with Hamstersarus. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the HackClubMicropad without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
