MateLight-PowerSupply

HansAchterbahn·MateLight-PowerSupply-PCB

MateLight-PowerSupply PCB layout, top view — open source board by HansAchterbahn
Simulate this board

About the MateLight-PowerSupply PCB

MateLight-PowerSupply is an open source PCB design by HansAchterbahn, published on GitHub. It is a 2-layer board measuring 73 × 26 mm, with 22 components from 2 distinct parts.

It belongs with the power & battery designs in this gallery.

From the project

A power supply for the MateLightScrewCap project. One power supply is needed per crate.

My MateLight project is based on the idea of jaseg's MateLight and improves it with a APA102 LED screw cap PCB which is easy to install and easy to remove from the coasters. An overview about my MateLight project you can find on my MateLight overview page.

In this Repository you can find the power distributor for the MateLight coasters (containing 20 bottles).

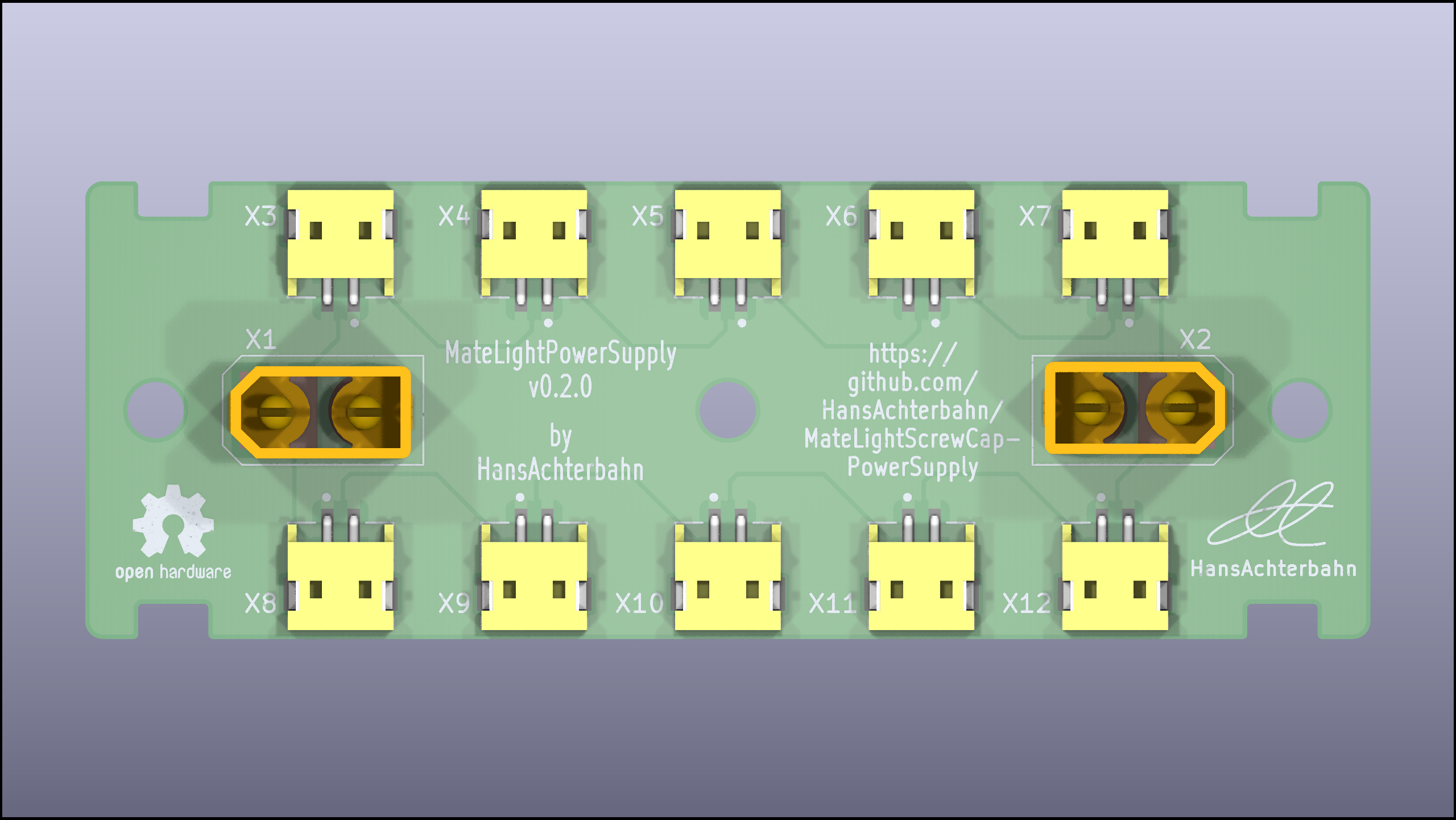

MateLight-PowerSupply, from the project README
From the project README

MateLight-PowerSupply bill of materials (BOM)

22 components, 2 distinct parts — part numbers from the project's BOM.

QtyPartRefs
2
XT30U-M
X1, X2
20
S2B-ZR-SM4A-TF
X3, X4, X5, X6, X7, X8, X9, X10 +12

MateLight-PowerSupply design files

The KiCad project lives in the HansAchterbahn/MateLight-PowerSupply-PCB repository on GitHub; these links point at the commit this page was built from.

MateLight-PowerSupply: common questions

How big is the MateLight-PowerSupply PCB?

The MateLight-PowerSupply measures 73 × 26 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the MateLight-PowerSupply?

22 components, from 2 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the MateLight-PowerSupply design files?

From the HansAchterbahn/MateLight-PowerSupply-PCB repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the MateLight-PowerSupply design in my own project?

The repository has no license, so all rights stay with HansAchterbahn. Use it as a reference, and ask the author before reusing the design.
