About the TurboCAN PCB

TurboCAN is an open source STM32 PCB design by henrikssn, published on GitHub. It is a 2-layer board measuring 43 × 43 mm, with 84 components from 47 distinct parts.

Its main chip is the STM32F072CBUX, from the STM32 family. Other key parts include the AP2127N-3.3, TMC2209STEPSTICK, SN65HVD230, TPS54331 and AO3400A. By type, the board carries 31 resistors, 23 capacitors, 11 connectors, 9 ICs, 6 diodes and 3 inductors.

It belongs with the robotics & motion and sensors designs in this gallery.

From the project

This is the official repository for the TurboCAN controller board, designed specifically for the Voron AfterBurner toolhead but can also be used on similar toolheads using NEMA17 steppers.

This is the official repository for the TurboCAN controller board, designed specifically for the [Voron AfterBurner] toolhead but can also be used on similar toolheads using NEMA17 steppers. The main benefit of this board is the capability to run the toolhead over just 4 wires (CAN, +24V, Ground) which greatly simplifies the wiring in the Voron v1 and v2 models.

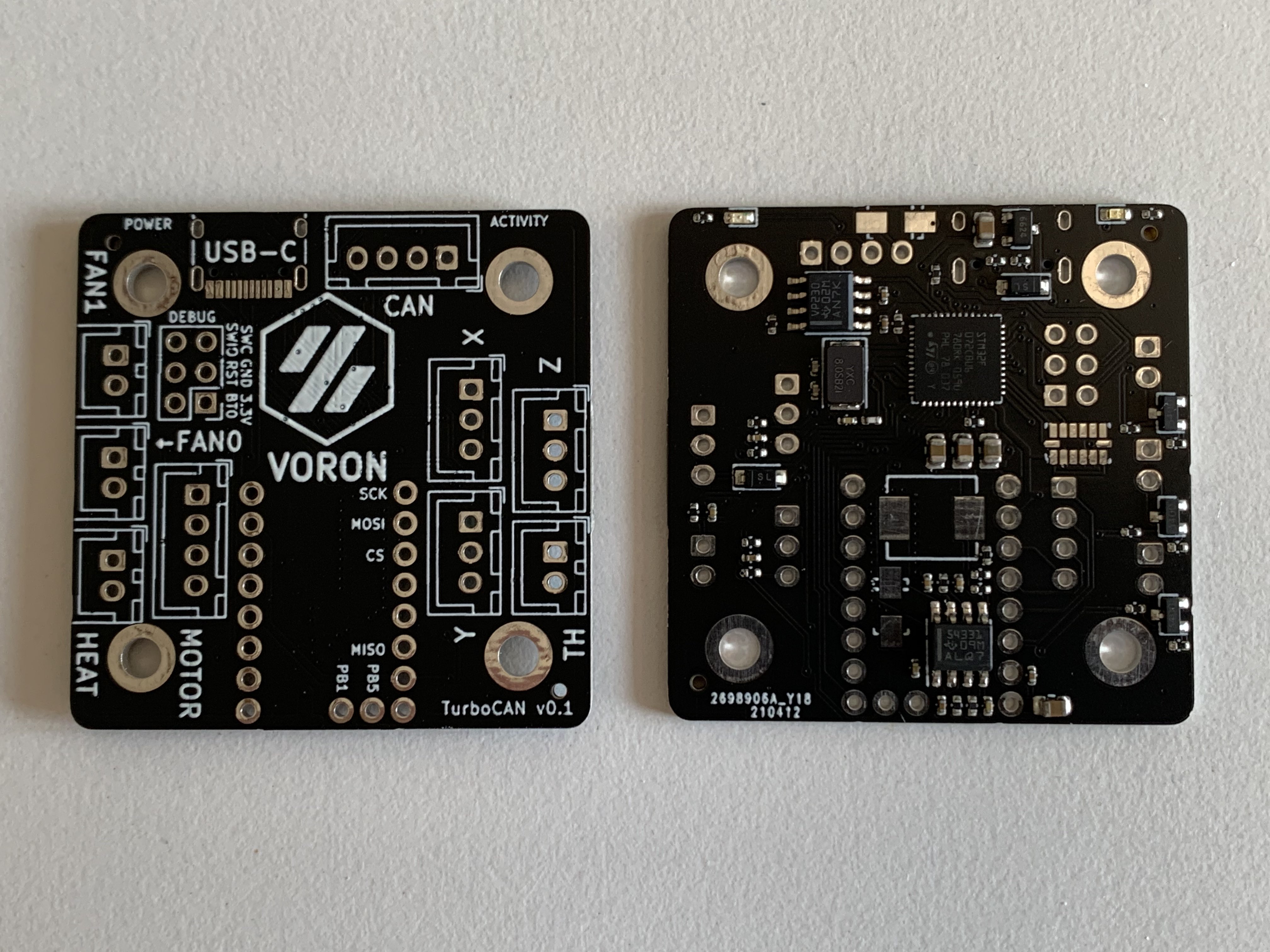

TurboCAN, from the project README
From the project README

Main components on the TurboCAN

TurboCAN bill of materials (BOM)

84 components, 47 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
AP2127N-3.3
U1
1
TMC2209STEPSTICK
TMC2209StepStick
U2
1
SN65HVD230
U3
1
TPS54331
U4
2
AO3400A
U5, U6
1
AON7400A
U7
1
STM32F072CBUX
STM32F072CBUx
U8
1
ADXL345BCCZ
U9
1
Crystal
Y1
1
USB_C_RECEPTACLE_USB2.0
USB_C_Receptacle_USB2.0
J1
1
STEPPER
J2
1
DEBUG
J5
1
ENDSTOPX
J7
1
ENDSTOPY
J8
1
TH0
J9
1
CAN_PORT
J10
1
FAN0
J11
1
FAN1
J12
1
HEAT
J13
1
PROBE
J14
Show 27 more
QtyPartRefs
1
BAT42W-V
D1
2
SS54
D2, D3
1
BAT42W
D4
1
C2286
LED_Red
D5
1
C72043
LED_Green
D6
1
6.8UH
6.8uH
L1
2
C1017
Ferrite bead
L2, L3
2
10UF
10uF
C1, C5
10
100NF
100nF
C2, C3, C4, C9, C10, C11, C12, C17 +2
2
10NF
10nF
C6, C19
1
1NF
1nF
C7
1
1PF
1pF
C8
3
22UF
22uF
C13, C14, C15
2
12PF
12pF
C16, C18
1
100UF
100uF
C21
1
1UF
1uF
C23
2
5.1K
5.1k
R1, R2
6
1k
R3, R12, R13, R23, R24, R28
1
330K
330k
R4
2
68K
68k
R5, R6
10
10K
10k
R7, R8, R10, R14, R15, R16, R20, R21 +2
1
4.7K
4.7k
R9
1
1.2K
1.2k
R11
3
100
R17, R18, R19
1
680
R25
1
120OHM
120Ohm
R26
3
DNP
R29, R30, R31

TurboCAN design files

The KiCad project lives in the henrikssn/TurboCAN repository on GitHub; these links point at the commit this page was built from.

TurboCAN: common questions

What microcontroller does the TurboCAN use?

The TurboCAN is built around the STM32F072CBUX, from the STM32 family.

How big is the TurboCAN PCB?

The TurboCAN measures 43 × 43 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the TurboCAN?

84 components, from 47 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the TurboCAN design files?

From the henrikssn/TurboCAN repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the TurboCAN design in my own project?

The repository has no license, so all rights stay with henrikssn. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the TurboCAN without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
